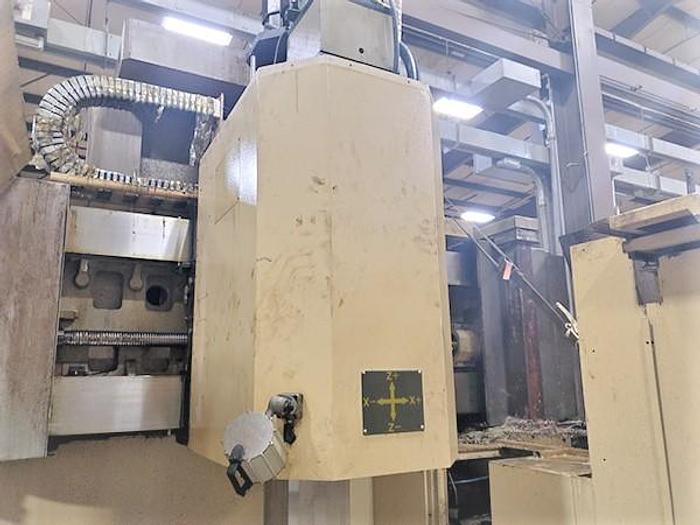

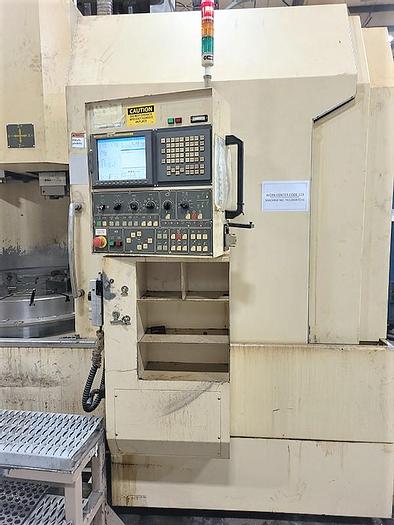

2005 You-Ji YV1200 ATC+C
Sold
2005 You-Ji YV1200 ATC+C
$159,500 (USD)
Ohio
Description

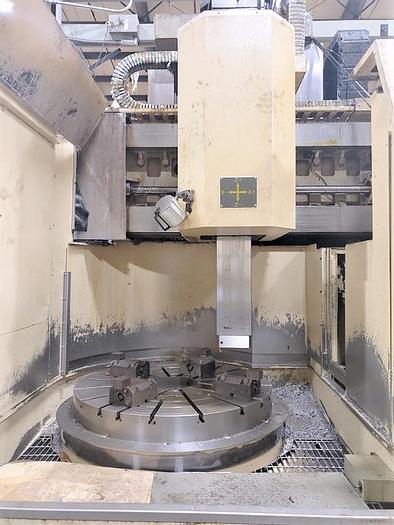

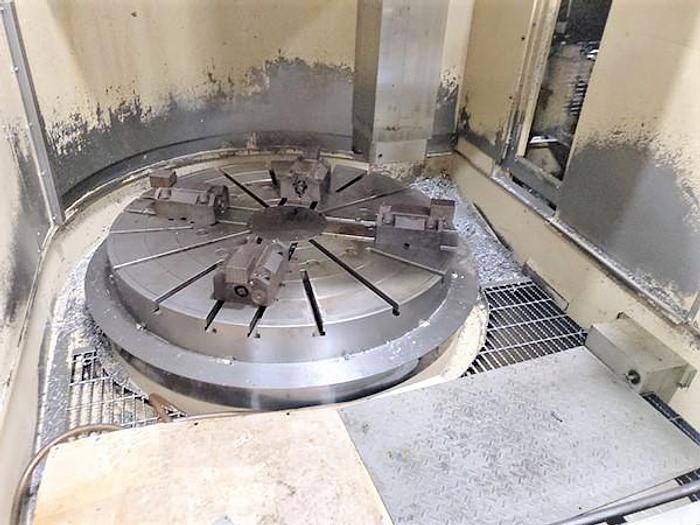

49.21" 4 Jaw Chuck
C Axis Chuck Rotation Milling Capability Coolant Through the RAM
Chip Conveyor
Oil Chiller Unit Coolant Through the Spindle 16 Station Tool Changer
3.5" Floppy Disk Drive Interface
RS 232 Port Interface All Available Manuals

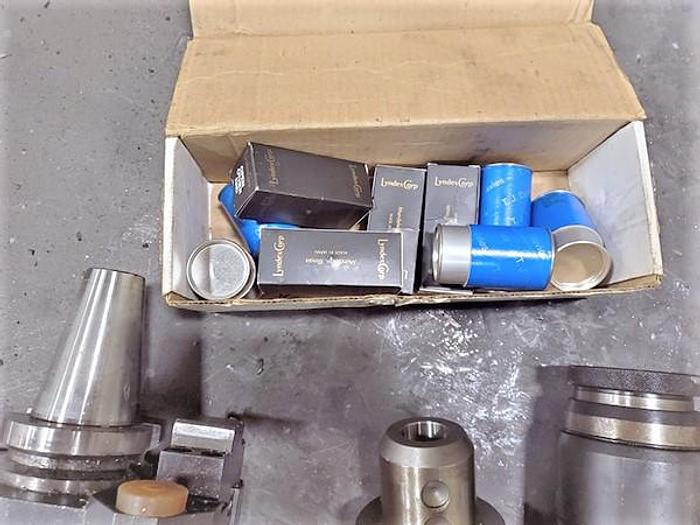

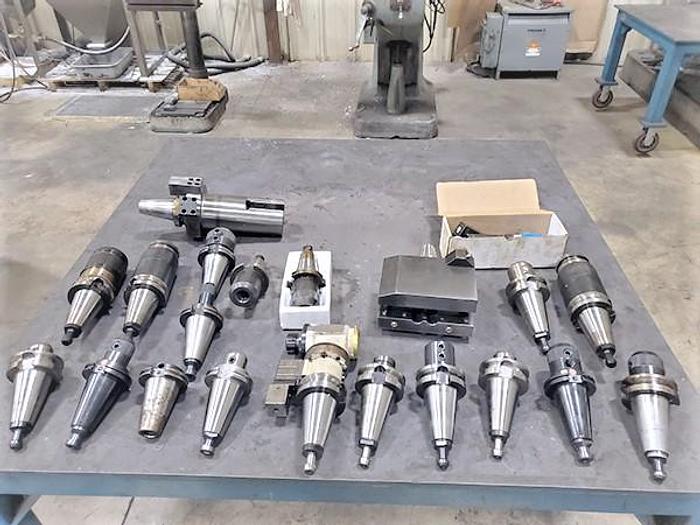

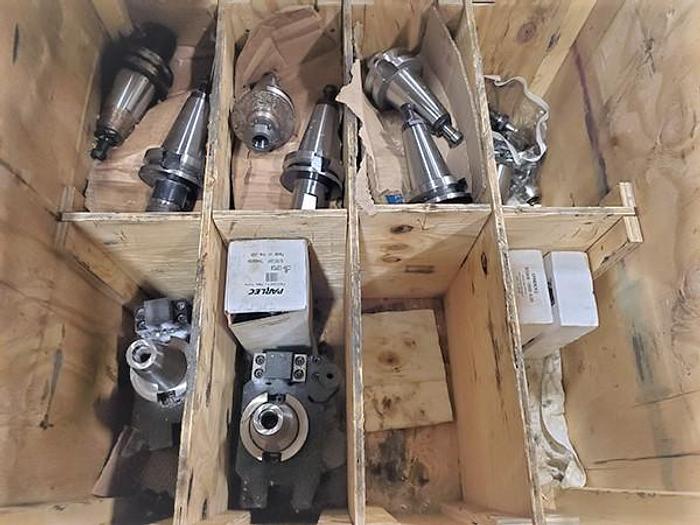

Collection of BT50 Tool Holders

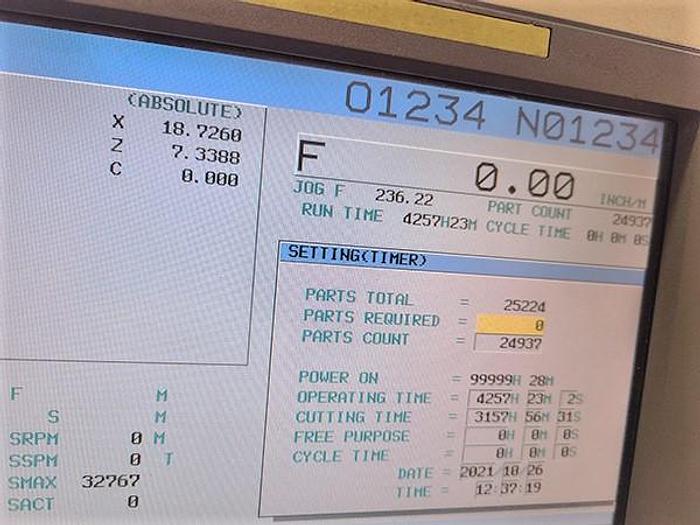

3,157 Cutting Hours
Specifications
| Manufacturer | You-Ji |
| Model | YV1200 ATC+C |
| Year | 2005 |
| Condition | Used |
| Stock Number | 117804 |

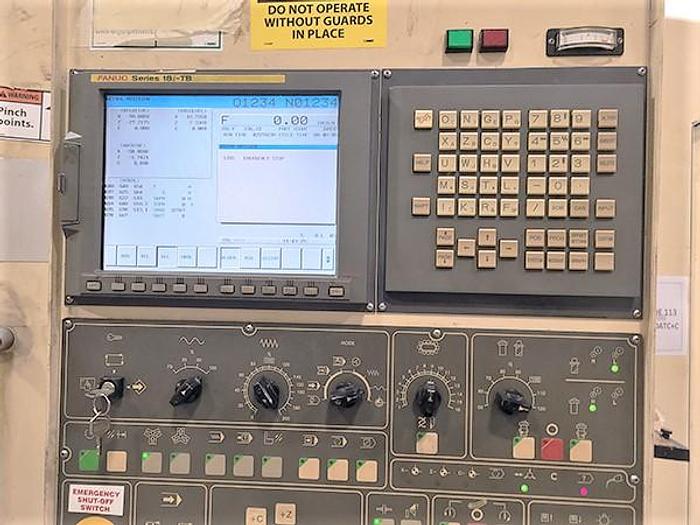

| Control | Fanuc 18i-TB |
| Maximum Swing | 63" |
| Table Diameter | 63" |
| Maximum Table Load | 11,023 lbs. |
| Maximum Turning Diameter | 53.15" |
| Maximum Turning Height | 63" |
| X-Axis Travel | 36.81" |
| Z-Axis Travel | 35.43" |
| C Axis Table Rotation | 0.001 Degree |
| Cross Rail Travel | 29.5" |
| Table Speed | 1 - 350 RPM |
| Table Motor | 60 HP |
| Milling Tool Taper | BT 50 |
| Live Milling Speed | 2 - 2,400 RPM |
| Transmission | 2 Speed Geared |
| Live Milling Motor | 15 HP |
| Number of Tool Positions | 9 Milling / 9 Turning |
| Cutting Feedrates | .03 - 78.74" |
| Rapid Traverse Rates X/Z | 472 IPM / 393 IPM |
