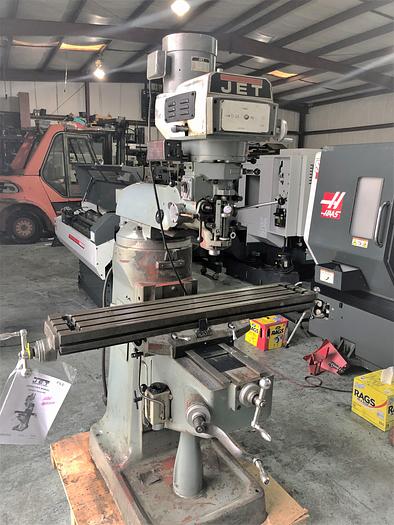

1994 Jet JTM 4VS Variable Speed Manual Knee Mill (Bridgeport Type)
Sold
1994 Jet JTM 4VS Variable Speed Manual Knee Mill (Bridgeport Type)
$3,950 (USD)
Location:Dundee, FL
Description

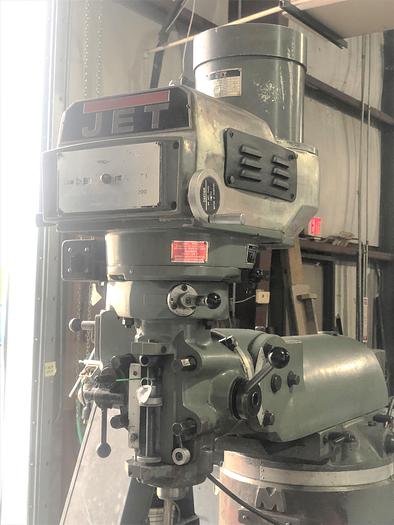

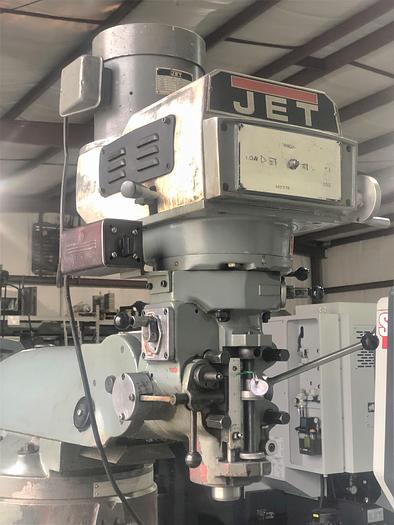

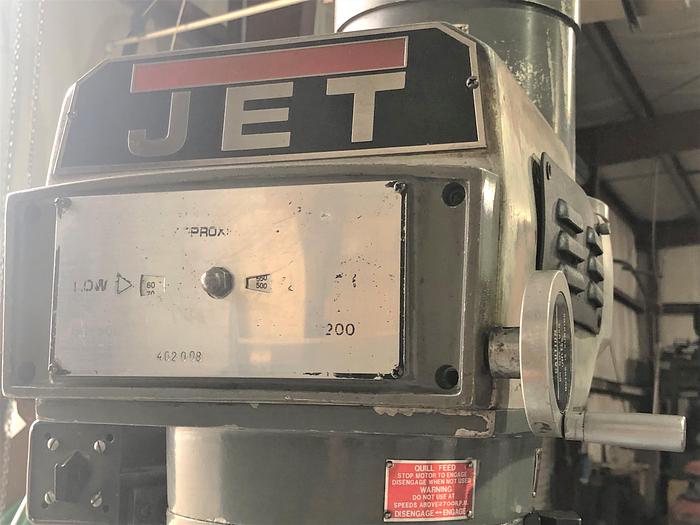

3 HP Variable Speed Milling Head
Compound Swivel Mount for Versatility in Setup's
Standard R8 Spindle Taper
Infinitely Variable Spindle Speeds
Hand Dials for Table and Cross Travel

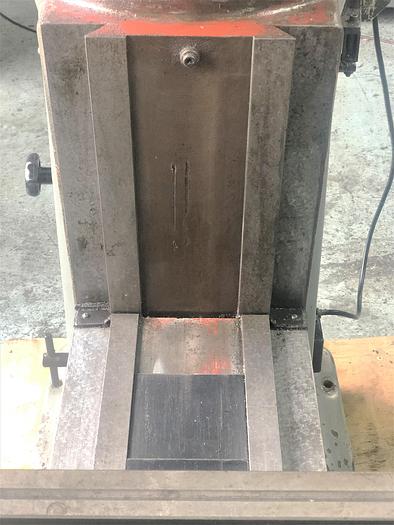

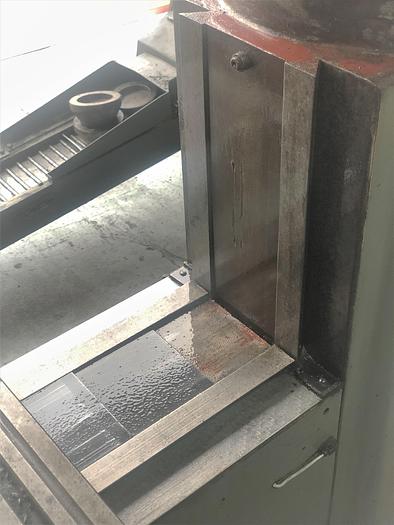

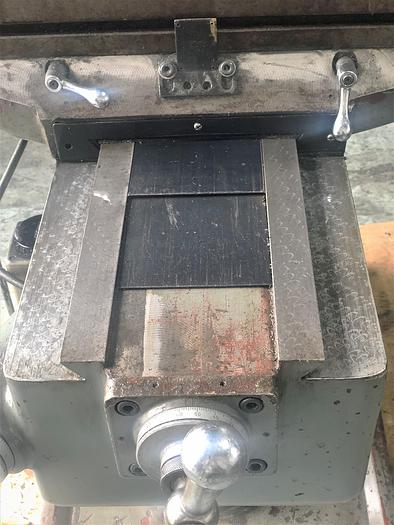

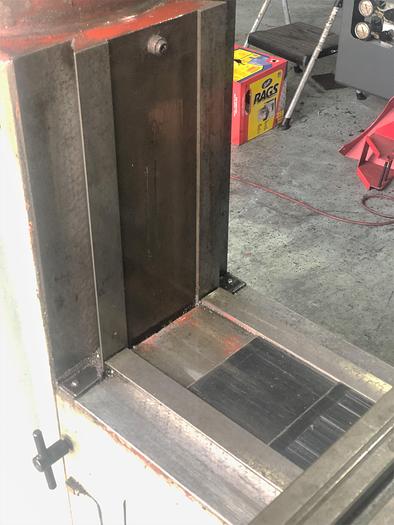

Front and Rear Way Covers

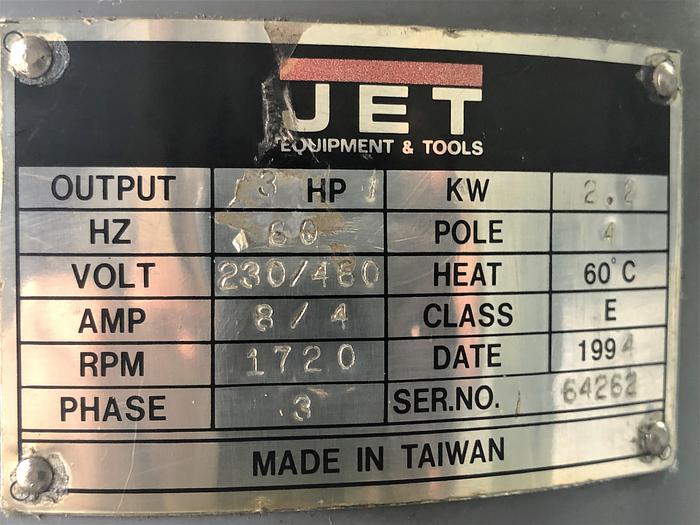

Wired 230/460V 3 Ph, 60 Hz
New in February 1994
Specifications
| Manufacturer | Jet |
| Model | JTM 4VS |
| Year | 1994 |
| Condition | Used |
| Stock Number | 117789 |

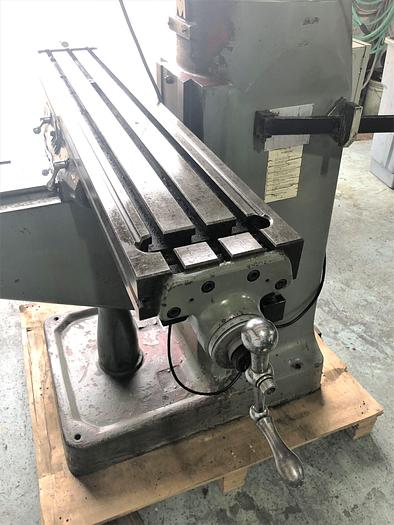

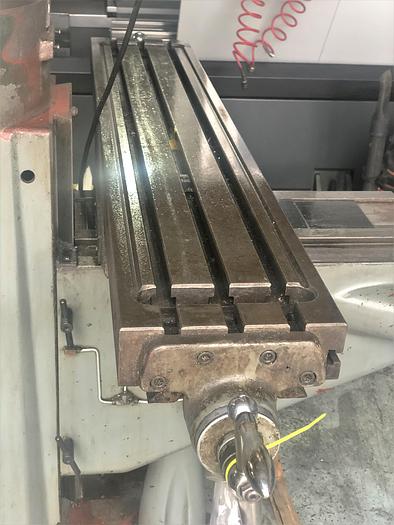

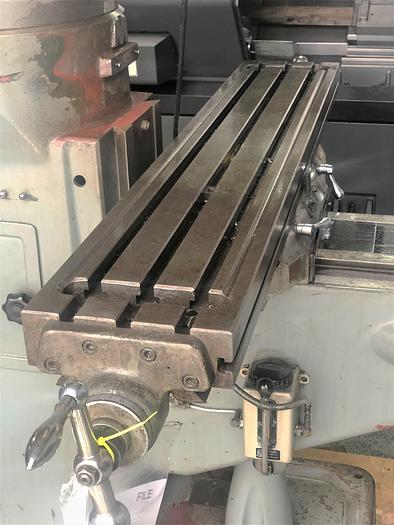

| Table Size | 49" x 9" |
| Maximum Table Load | 660 lbs. |
| X-Axis Travel | 36" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 12.25" |
| Quill Travel | 5" |
| Spindle Taper | R8 |
| Spindle Speeds | 60 - 4,200 RPM Infinitely Variable |
| Spindle Motor | 3 HP |
| Head Movement - Left to Right | 90 Degrees |
| Head Movement - Front to Back | 45 Degrees |
| Machine Dimensions | 65.5" x 63" x 88" |
| Machine Weight | 2,950 lbs. |
