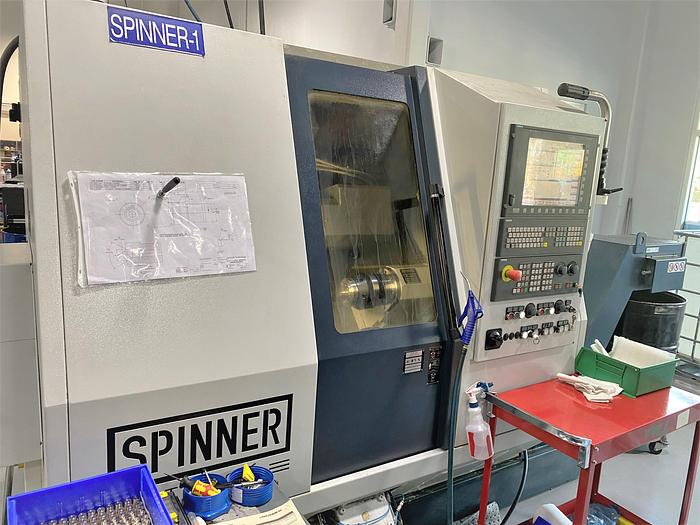

2012 Spinner TTC-300 52 SMMCY
No longer available
2012 Spinner TTC-300 52 SMMCY
$119,500 (USD)
Florida
Description

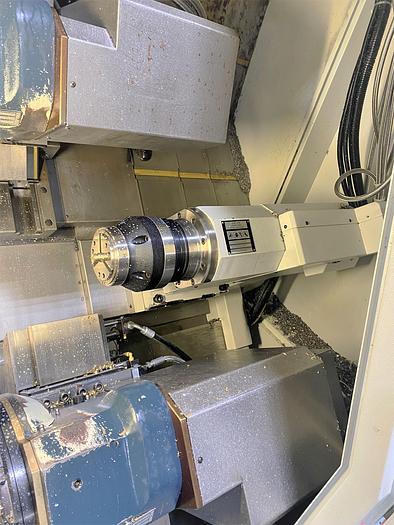

Twin Facing Spindle Design Full "C" Axis Spindle Rotation Both Spindles Live Milling / Drilling Capability on Both Turrets
Y Axis on Upper Turret Only Collet Chuck - Both Spindles 2.5" Bar Capacity Option on Left Spindle

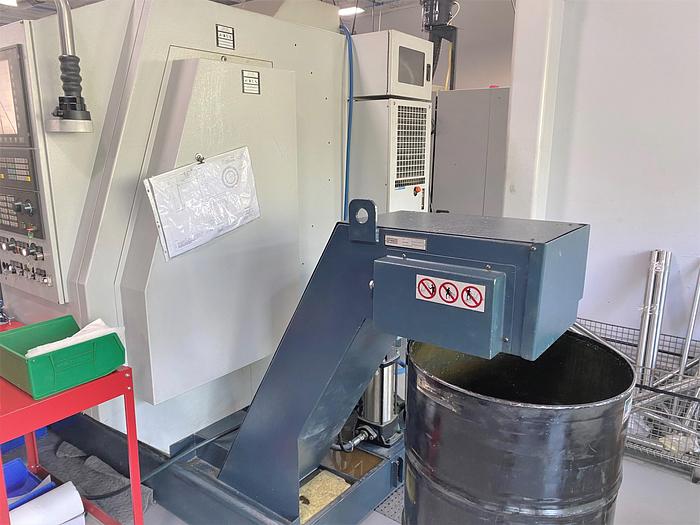

Chip Conveyor
Parts Conveyor 700 PSI High Pressure Coolant Pump
Probe
Glass Scales Coolant Tank with Pumps RS232 Port Interface
Boxed Way Design All Available Tooling All Available Manuals
New cost at over $400,000
Specifications
| Manufacturer | Spinner |
| Model | TTC-300 52 SMMCY |
| Year | 2012 |
| Condition | Used |
| Stock Number | 117788 |

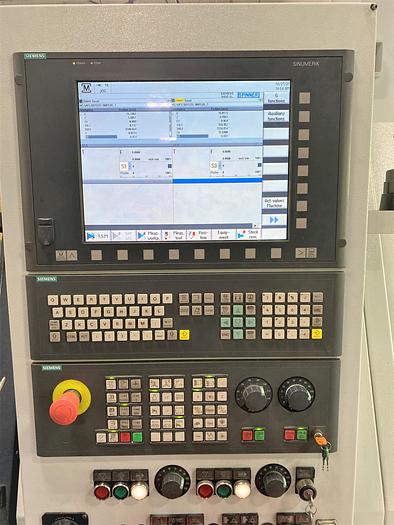

| Control | Siemens 840D SL Control |
| Chuck Type Left / Right Spindle | Collet Chuck / Collet Chuck |
| Maximum Swing | 15.75" |
| Maximum Turning Diameter | 7.87" |
| Maximum Turning Length | 15.75" |
| Maximum Bar Capacity | 2.55" |
| X-Axis Travel | 7" |
| Z-Axis Travel | 17.71" |
| Y-Axis Travel | +/- 3" |
| C Axis Spindle Rotation - Both | .001 Degree |
| Spindle Nose / Spindle Bore Left / Right | A2-6" / 3.15" / 2.56" |
| Spindle Speed Left / Right | 5,000 RPM / 7,000 RPM |
| Spindle Motor - Both 30 minutes/continuous | 20 HP / 15 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / n/a |
| Number of Turret Positions - Both | 12 Station each |
| Rapid Traverse Rates X / Z | 590 IPM / 945 IPM |
| Machine Dimensions | 99" x 75" x 86" |
| Machine weight | 11,255 lbs. |
