2015 Haas VF2SS YT with 2 Pallet Midaco Pallet Changer
No longer available
2015 Haas VF2SS YT with 2 Pallet Midaco Pallet Changer
$69,950 (USD)
Location:Massachusetts
Description

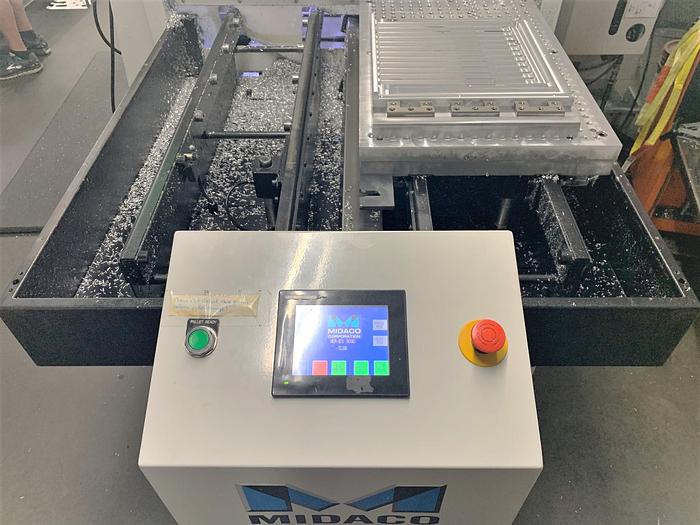

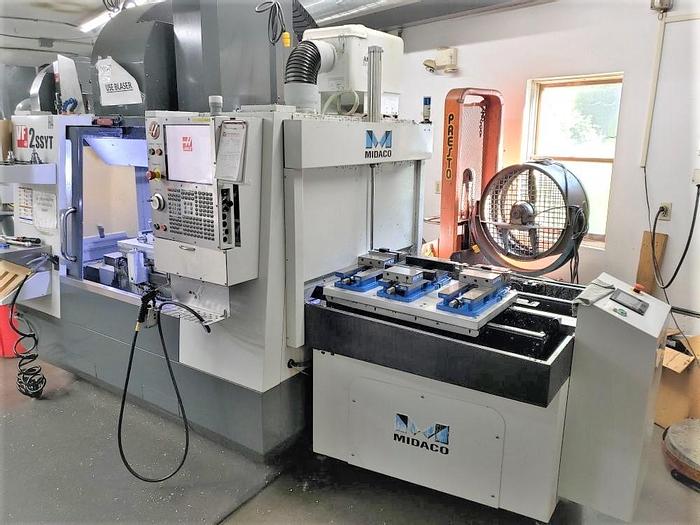

Midaco 2 Pallet Changer (installed by Haas when machine was new)
40+1 Position Side Mounted Tool Changer
Haas Wireless Probing Tool & Part Probing - Renishaw
15,000 RPM Spindle Option
High Speed Machining
Auger Style Chip Conveyor
Programmable Coolant Nozzle
Mist Collector
Coolant System with Tank & Pump
USB Port Interface
RS 232C Port Interface for DNC Operation
All Available Manuals
Wired 195-260 Volt Electrics
New in October of 2015
Approximately 7,400 Spindle Run Hours
Specifications
| Manufacturer | Haas |
| Model | VF2SS |
| Year | 2015 |
| Condition | Used |
| Stock Number | 117786 |
| Pallet Size / Number of Pallets | 36" x 14" / 2 Pallets |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 16" |
| Z axis travel | 20" |
| Spindle taper | CAT #40 |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 40 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 88" x 93" x 106"H machine only |
| Machine weight (approximately) | 11,000 lbs. |
