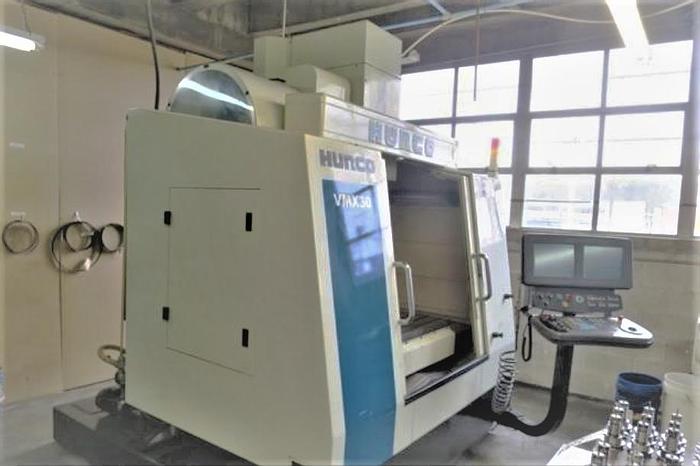

2004 Hurco VMX-30
No longer available
2004 Hurco VMX-30
$17,500 (USD)
Illinois
Description

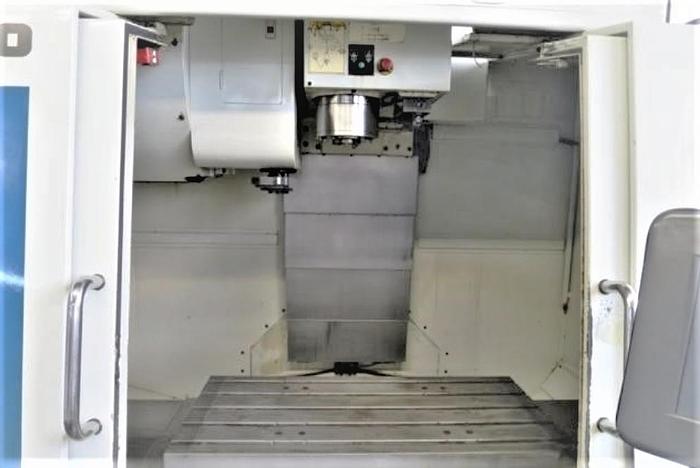

36" x 21" Vacuum Table
24 Station Side Mounted Tool Changer
Remote Jog Handle

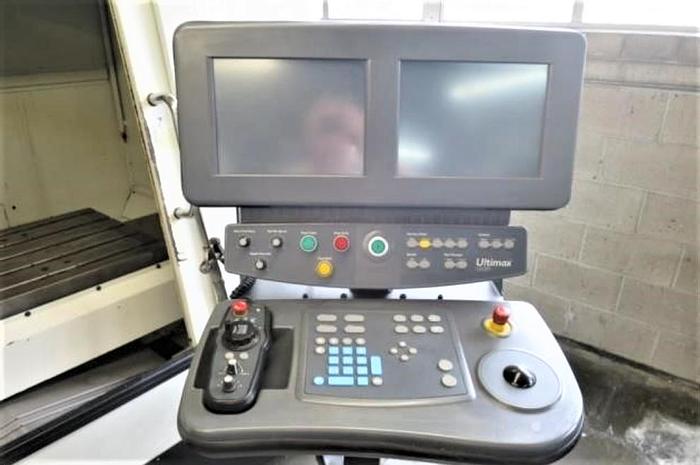

Dual Monitor Control
Ethernet Interface
USB Port Interface
RS-232 Interface
Flood Coolant System
Machine Status Condition Lights
All Available Manuals
Specifications
| Manufacturer | Hurco |
| Model | VMX-30 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117785 |
| Machine Control | Ultimax Split Screen Control |
| Table Size | 40" x 20" |
| Maximum Table Load | 3,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 24" |
| Spindle Nose to Table Top | 6" - 30" |
| Spindle Speeds | 10,000 rpm |
| Spindle Taper | CAT 40 |
| Spindle Motor | 18 HP |
| Tool Magazine Capacity | 24 Position Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 4.7" / 11.8" / 15 lbs. |
| Rapid Traverse Rates X, Y / Z | 1181 IPM / 787 IPM |
| Cutting Feedrates | 600 IPM |
| Machine Dimensions LxWxH | 86" x 92" x 110" |
| Machine Weight | 9,810 lbs. |
