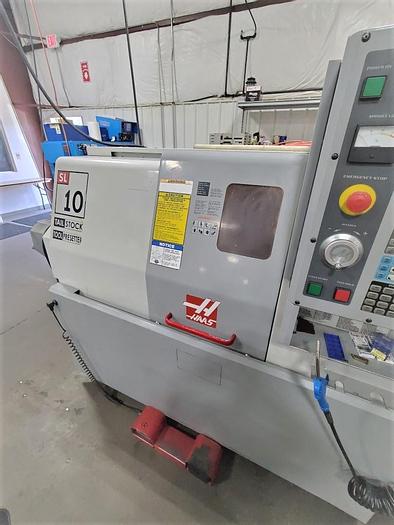

2004 Haas SL-10T
No longer available
2004 Haas SL-10T
$28,500 (USD)
Location:Indiana
Description
6" 3 Jaw Hydraulic Chuck

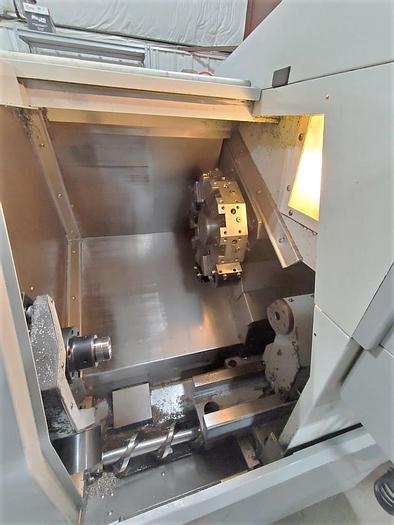

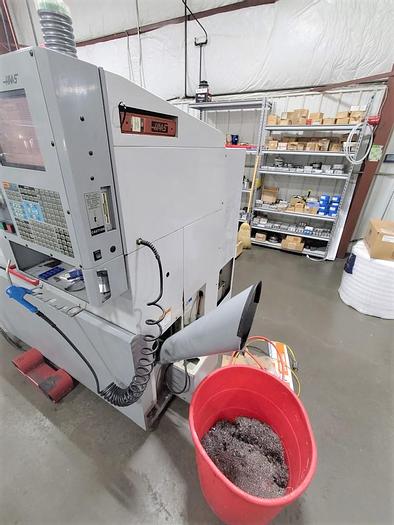

Auger Style Chip Conveyor
Tool Presetter

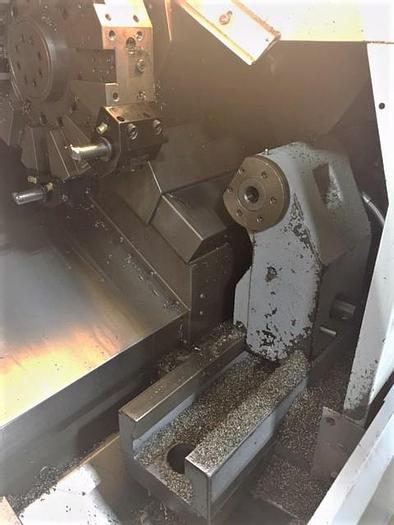

Tailstock
Rigid Tapping
3.5" Floppy Disk Interface
RS 232 Port Interface

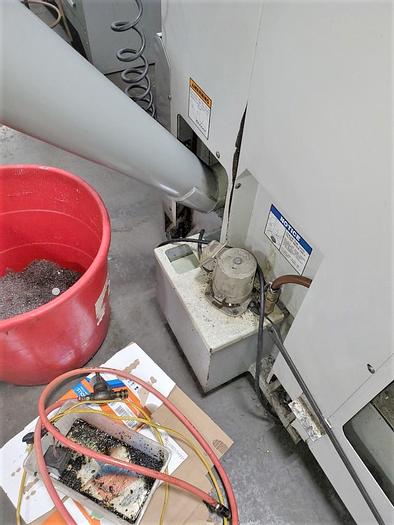

Complete Coolant System with Tank & Pump
All Available Tooling

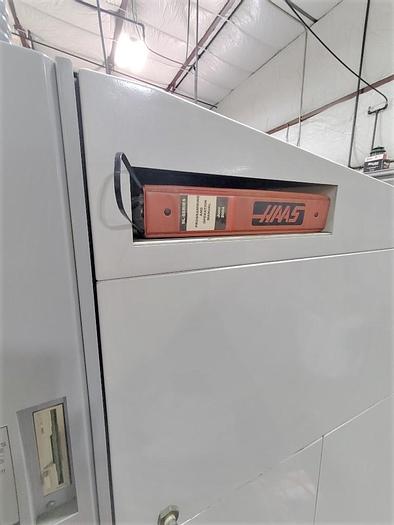

All Available Manuals
Wired 208/230V Electrics

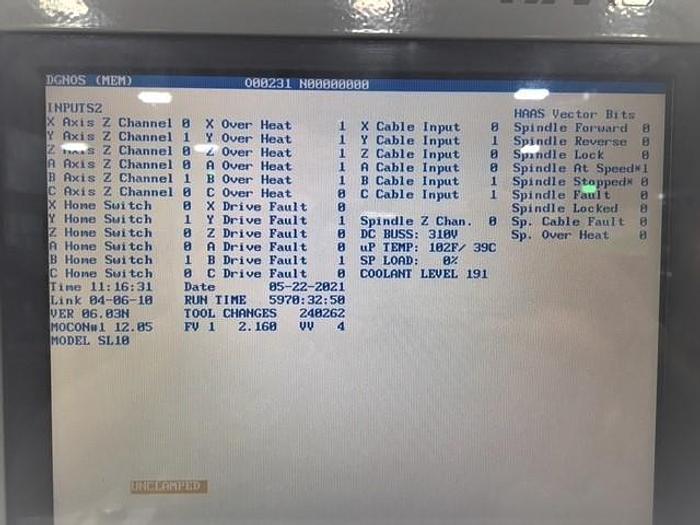

ONLY 5970 Run Time Hours
Specifications
| Manufacturer | Haas |
| Model | SL-10T |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117783 |

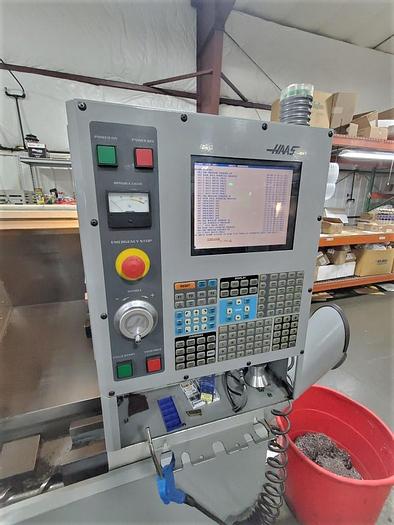

| Machine Control | Haas CNC Control |
| Chuck Size | 6.5" Hydraulic Chuck |
| Maximum Swing | 16.25" |
| Maximum Swing Over Cross Slide | 8" |
| Maximum Machining Diameter | 11" |
| Distance Between Centers | 16.5" |
| X-axis travel | 6.25" |
| Z-Axis Travel | 14" |
| Spindle Speeds | 0 - 6,000 rpm |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Motor | 15 HP |
| Number of Turret Positions | 10 Position Turret |
| Rapid Traverse Rates | 1,200 IPM |
| Tailstock Center / Diameter | #3 MT / NA |
| Tailstock Quill Travel | 4" |
| Machine Dimensions LxWxH | 96"x54"x70" |
| Machine Weight | 6,000 lbs |
