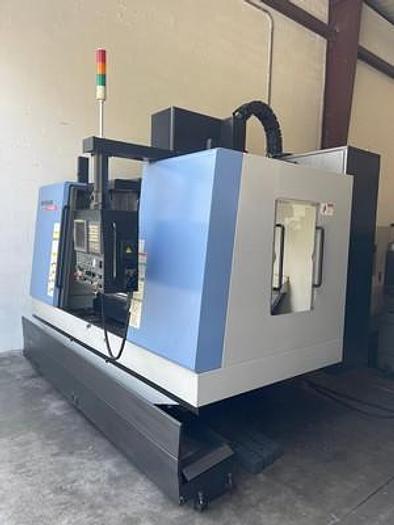

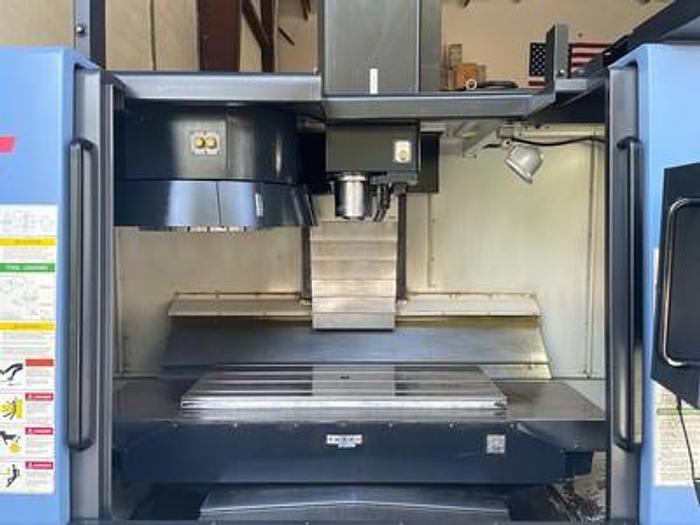

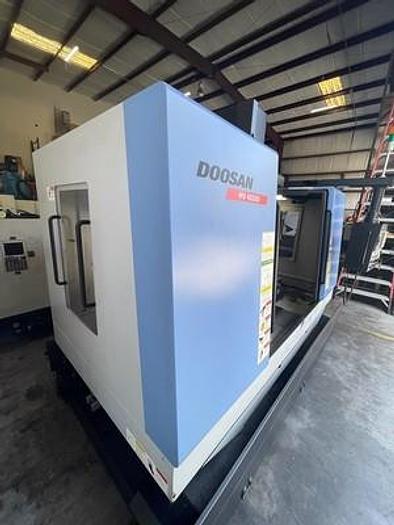

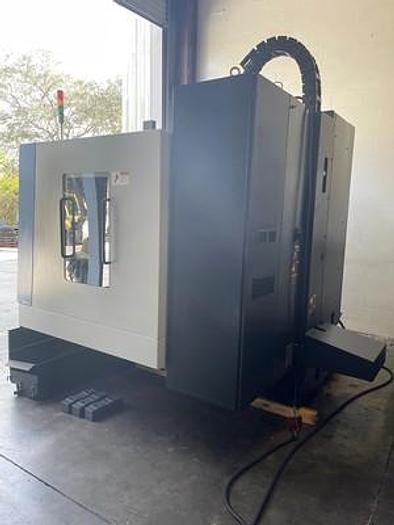

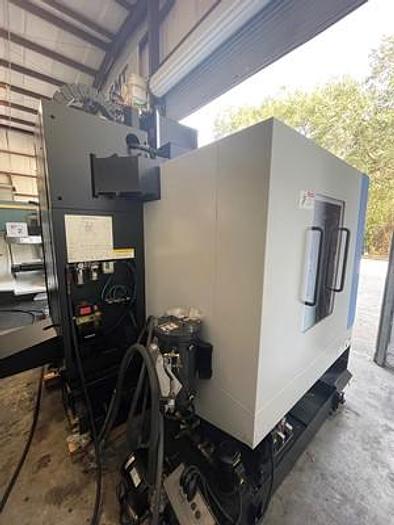

2007 Doosan/Daewoo MV 4020D
No longer available
2007 Doosan/Daewoo MV 4020D
$39,500 (USD)
Florida
Description
Coolant Through the Spindle
Flood Coolant
Coolant Wash Down
Spindle Orientation
Rigid Tapping
Manual Pulse Generator
Auto Lube System
Machine Status Condition Lights
Work LIght
Oil Skimmer

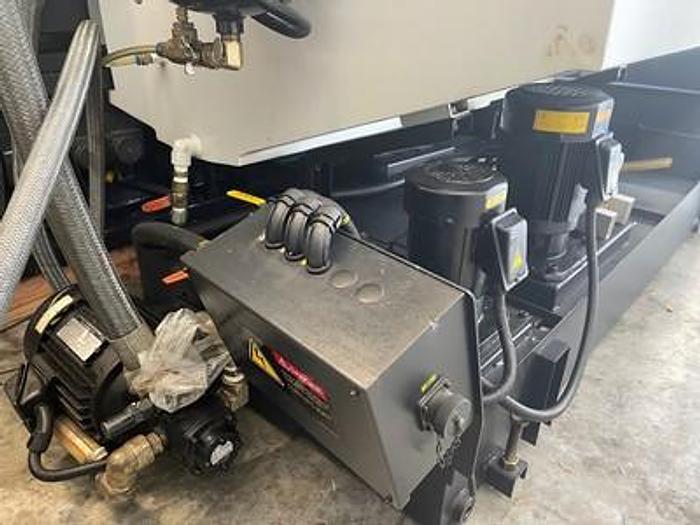

Coolant Tank with (3) Coolant Pumps
Card Interface
RS 232 Port Interface All Available Manuals
Manufactured New in August of 2007
Specifications
Manufacturer | Doosan/Daewoo |
Model | MV 4020D |
Year | 2007 |
Condition | Used |
Stock Number | 117780 |

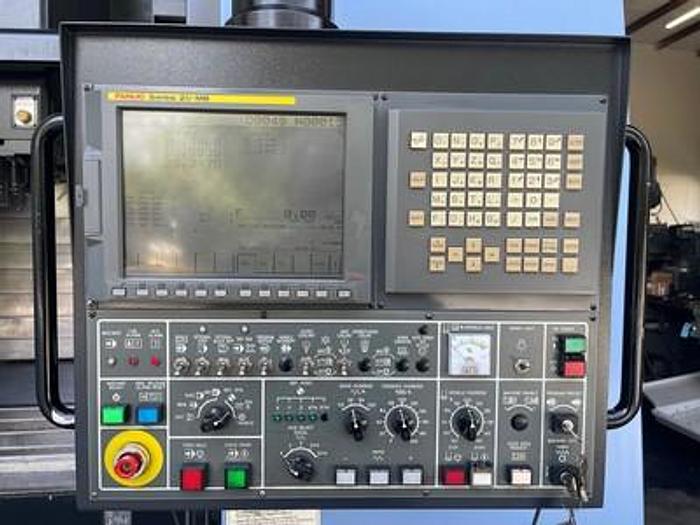

Control | Fanuc 21iMB Control |

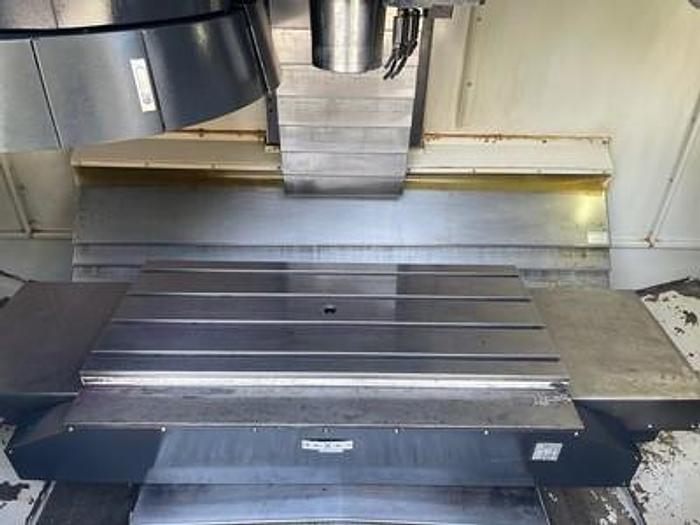

Table Size | 47.2" x 19.7" |
Maximum Weight on Table | 1,760 lbs. |
Distance Spindle Nose to Table Top | 5.9" - 30.5" |
X-axis travel | 40.01" |
Y-Axis Travel | 20.01" |
Z-Axis Travel | 24.6" |
Spindle Taper | CAT 40 |
Spindle Speed | 8,000 RPM |
Spindle Motor | 20 HP |
Number of Tool Positions | 24 Station Tool Changer |
Rapid Traverse Rates X, Y / Z | 1181 IPM / 945 IPM |
Cutting Feedrates | 472 IPM |
Machine Dimensions | 130" x 105" x 110" |
Machine Weight | 16,500 lbs. |
