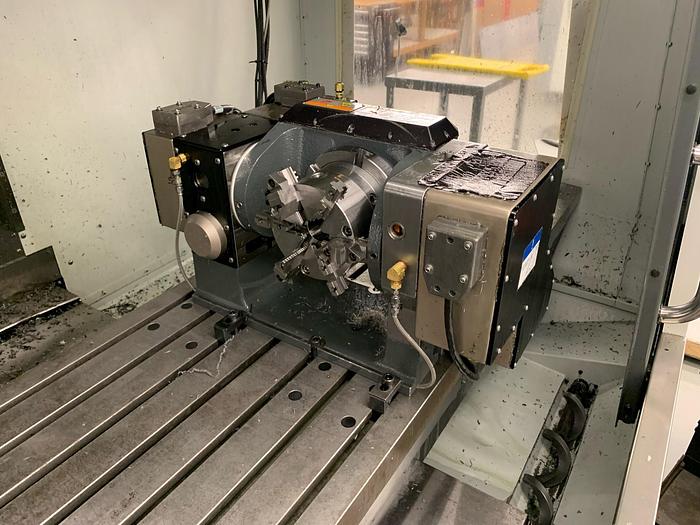

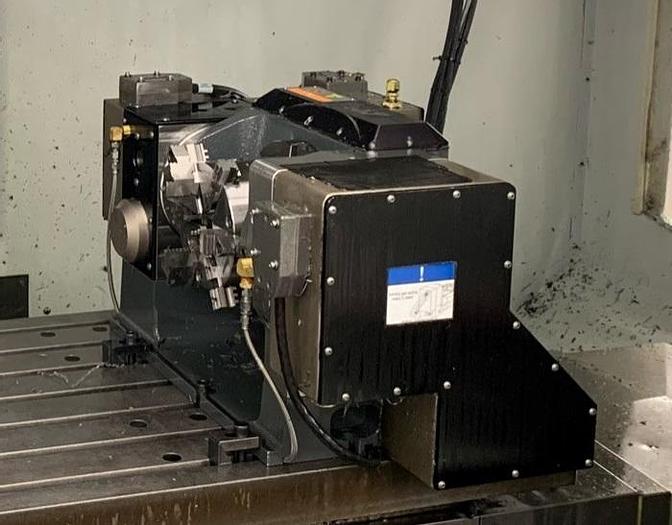

2018 Haas TR200Y Trunnion Rotary Table
No longer available
2018 Haas TR200Y Trunnion Rotary Table
$19,500 (USD)
Location:Texas
Description
4th / 5th Capability
Plug & Play Connection to Haas Machines
Version P4
Came off a Haas VF5/40 XT that had less than 1000 hours on it
Unit was purchased new in November of 2018.

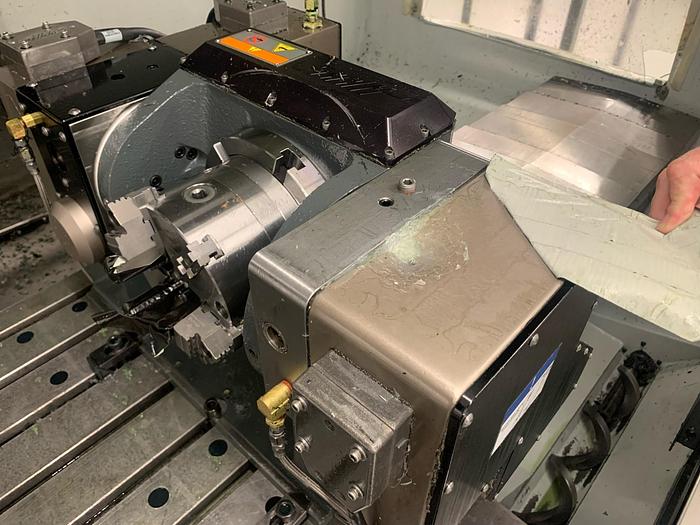

*Needs top plate replaced (where duct tape is seen), at cost of $1600 plus labor
*Price new unit at $39,895
Specifications
| Manufacturer | Haas |
| Model | TR200Y Trunnion Rotary Table |
| Year | 2018 |
| Condition | Used |
| Stock Number | 117779 |
| Platter Diameter | 7.87" |
| Maximum Weight on Platter | 80 lbs |
| Maximum Part Swing | 8.1" |
| Number of Standard T-Slots | 6 @ 60 Degrees |
| Timing | 2:1 |
| Maximum Tilt +/- | 120 Degrees |
| Maximum Speed Tilt | 100 Degrees / Second |
| Maximum Torque Tilt | 150 ft-lbf |
| Maximum Gear Ratio Tilt | 63:1 |
| Maximum Timing Tilt | 2:1 |
| Maximum Rotation/Step | +/- 120 Degrees |
| Resolution Tilt | .001 Degrees |
| Maximum Speed Rotary | 130 Degree / Second |
| Maximum Torque Rotary | 150 ft-lb |
| Runout Max Rotary | .0005 |
| Timing Rotary | 2:1 |
| Rotation Rotary | 360 Degrees |
| Maximum Air Pressure | 150 psi |
| Dimensions | 33"x23"x21" |
| Weight | 400 lbs |
