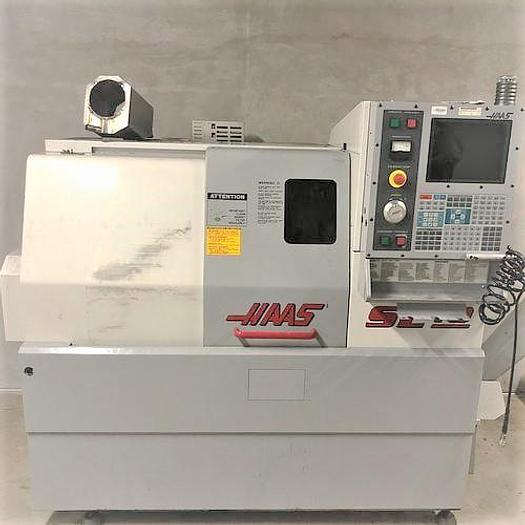

2002 Haas SL-10T
No longer available
2002 Haas SL-10T
$19,995 (USD)
Texas
Description
6.5" Hydraulic 3-Jaw Chuck
Tool Presetter
Tailstock

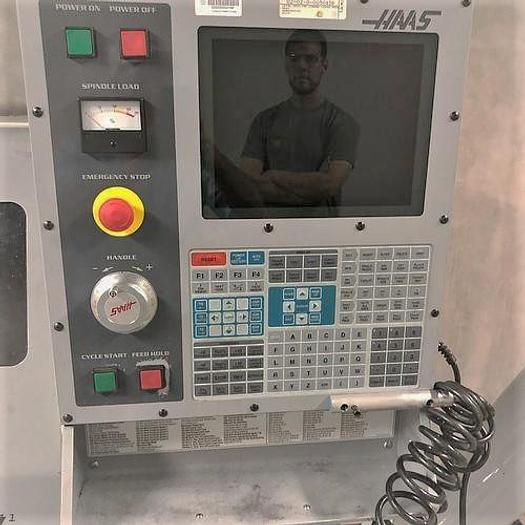

Visual Quick Code Programming (conversational)
Auger Style Chip Conveyor
16 MB Programming Memory
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Rigid Tapping
Coolant System with Tank & Pump
Wired 208/230V Electrics
All Available Tooling
All Available Manuals
**Coming out of a school**
Machine manufactured new in April of 2002

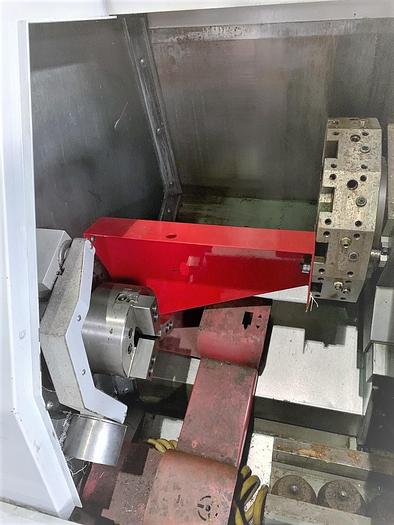

*Collet Chuck in photos is NOT included
Specifications
| Manufacturer | Haas |
| Model | SL-10T |
| Year | 2002 |
| Condition | Used |
| Stock Number | 117777 |
| Machine Control | Haas 32 Bit |
| Chuck Size | 6" 3-Jaw Hydraulic |
| Maximum Swing | 16.25 |
| Maximum Swing Over Cross Slide | 8" |
| Maximum Machining Diameter | 11" |
| Distance Between Centers | 16.5" |
| X-axis travel | 6.25" |
| Z-Axis Travel | 14" |
| Spindle Speeds | 6,000 RPM |
| Spindle Nose / Spindle Bore | A2-5 / 2.31" |
| Spindle Motor | 15 HP |
| Number of Turret Positions | 10 Position Turret |
| Rapid Traverse Rates | 1,200 IPM |
| Tailstock Center / Diameter | #3 MT / NA |
| Tailstock Quill Travel | 4" |
| Machine Dimensions LxWxH | 96"x54"x70" |
| Machine Weight | 6,000 lbs |
