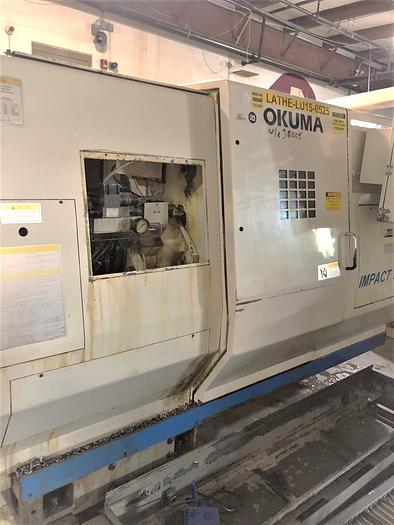

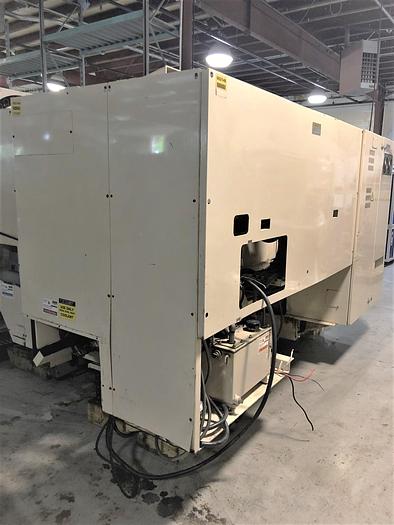

1999 Okuma Impact LU-15M-2SC/600
No longer available
1999 Okuma Impact LU-15M-2SC/600
$10,900 (USD)
Indiana
Description
Twin Turret Design (12 Upper & 8 Lower Positions)
Milling Capability on Upper Turret
Chip Conveyor
Tailstock - Drag Type
Coolant Tank with Pump
RS 232 Port Interface
Plane Conversion
Profile Generation
M Axis Orientation
60M Buffer
Turret Position Compensation
LAP 4
Nose-R 2B
User Task 2
Cycle Time Calcuation
Animation
NC Turret
MacMan
Inch/Metric Conversion
Rigid Tapping
Exp Auto Chamferring
Lube Control
Wired 220V Electrics
Heavy Duty Slant Bed with Boxed Ways
Software Updated in September of 2005
All Available Manuals
All Available Tool Blocks
Specifications
Manufacturer | Okuma |
Model | Impact LU-15M-2SC/600 |
Year | 1999 |
Condition | Used |
Stock Number | 117766 |
Machine Control | OSP-7000L |
Chuck Size | N/A |
Maximum Swing over Bed | 20.87" |
Maximum Turning Diameter | 10.62" |
Maximum Turning Length | 23.62" |
X-Axis Travel Upper Turret / Lower Turret | 10.24" / 5.51" |
Z-Axis Travel Upper Turret / Lower Turret | 25.20" / 24.21" |
Spindle Nose / Spindle Bore | A2-8" / 3.15" |
Spindle Speeds | 15 - 3,800 RPM |
Spindle Motor | 30 HP |
Transmission | Geared |
Live Milling Speeds | 4,500 RPM |
Number of Turrets | 2 Turrets |
Number of Turret Positions | 12 Stations + 8 Stations |
Rapid Traverse Rates X/Z | 590 IPM / 787 IPM |
Machine Dimensions | 156" x 83" x 76" |
Machine Weight | 12,000 lbs. |
