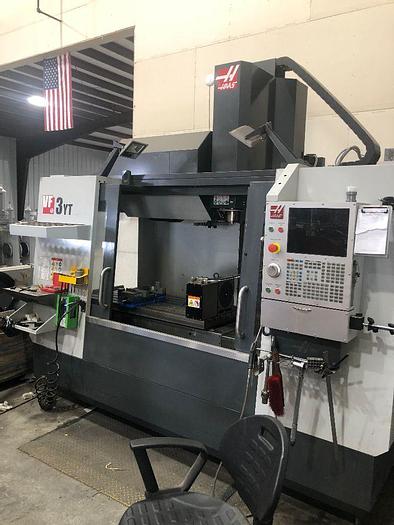

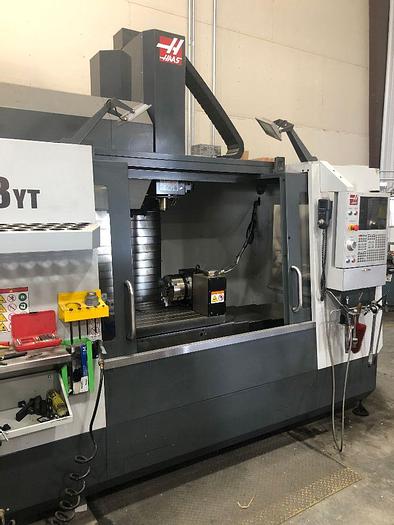

2019 Haas VF-3YT/40
No longer available
2019 Haas VF-3YT/40
$89,950 (USD)
Oklahoma
Description

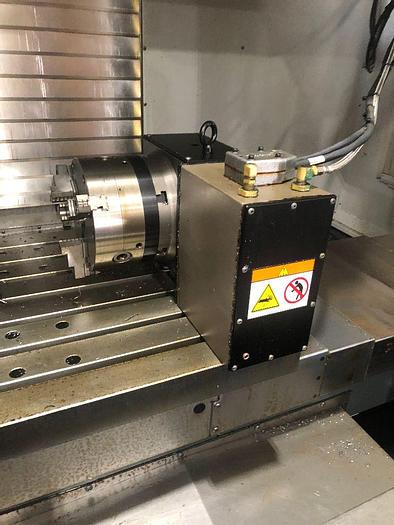

Haas HRT-210 4th Axis Rotary Table
4th Axis Drive & Wiring
30 Station Side Mounted Tool Changer
Programmable Coolant Nozzle Remote Jog Handle
High Intensity Lighting

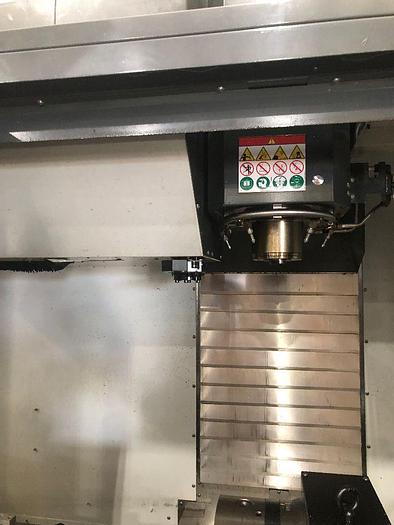

Rigid Tapping Vector Drive Spindle
1 GB Standard Memory
Ethernet Interface
Wifi Connection for Haas Control
USB Port Interface RS 232 Port Interface
Early Power Failure Detection Module Coolant System All Available Manuals
Less than 200 Hours
Price new as equipped at $112,965
Specifications
| Manufacturer | Haas |
| Model | VF-3YT/40 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 117757 |

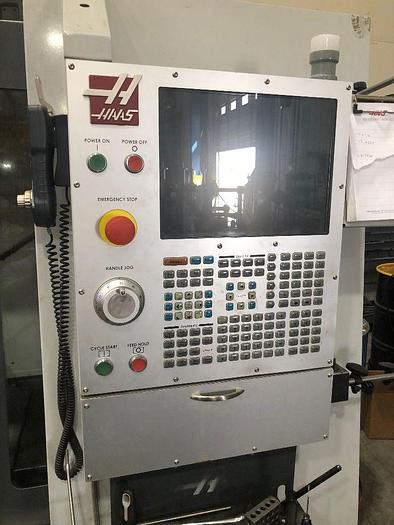

| Control | Haas 32 BIT |
| Table Size | 52" x 23" |
| Maximum Weight on Table | 4,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 29" |
| X-axis travel | 40" |
| Y-Axis Travel | 26" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 8,100 RPM |
| Spindle Motor | 30 HP |
| Number of Tool Positions | 30 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Tool Change Time Chip to Chip | 6.3 seconds |
| Rapid Traverse Rates | 710 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions | 158" x 135" |
| Machine Weight | 15,900 lbs. |
