2006 Mori Seiki NL2000Y/700
No longer available
2006 Mori Seiki NL2000Y/700
$54,950 (USD)
Location:Massachusetts
Description

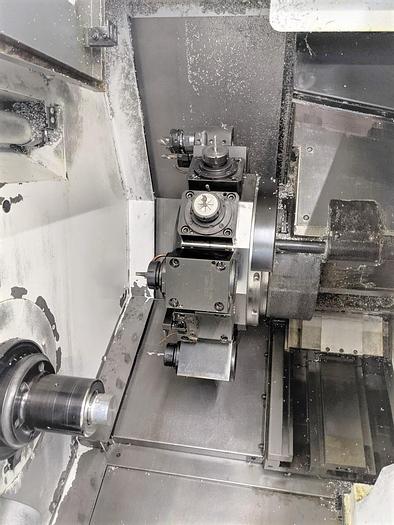

Full C Axis Spindle Rotation Live Milling/Drilling Capability Y Axis Capability Collet Chuck Tool Presetter Chip Conveyor
Parts Catcher Programmable Tailstock

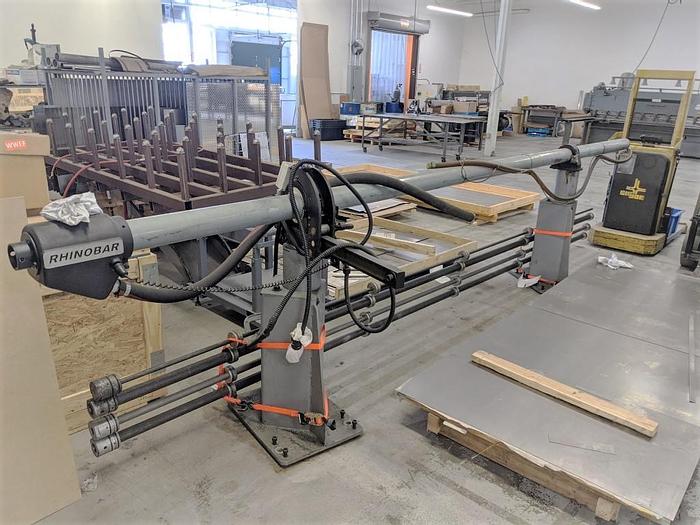

Rhino Bar 12' Bar Stock Single Tube Bar Feeder with Pushers Complete Coolant System with Tank & Pump
PCM CIA Interface RS 232 Port Interface (5-6) Live Tool Holders All Available Static Tooling All Available Manuals

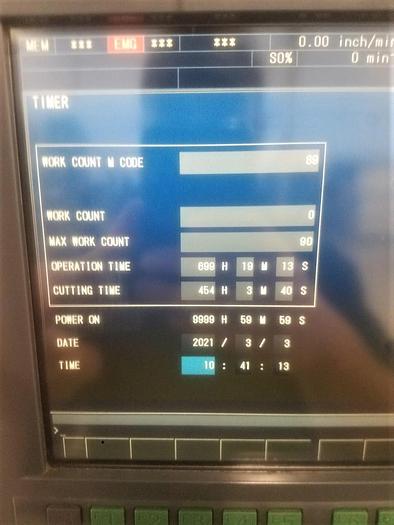

Non Resettable Power On Hours Are Now Just Over 10,000, Making Cutting Hours Approximately 4,000-5,000
Specifications
| Manufacturer | Mori Seiki |
| Model | NL2000Y/700 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 117750 |
| Quantity | 1 |

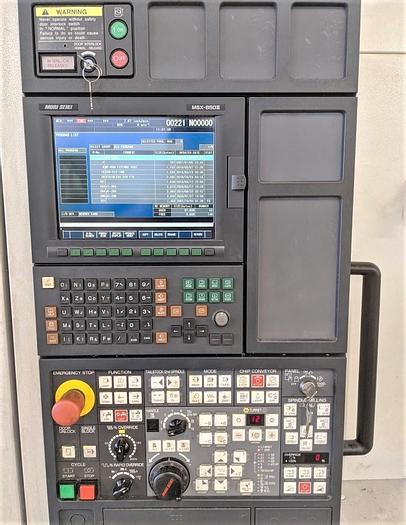

| Control | Mori/Fanuc MSX-850 III |
| Chuck Size | Collet Chuck |
| Maximum Swing over Bed | 36.4" |
| Maximum Turning Diameter | 14.4" |
| Maximum Turning Length | 20.1" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 10.2" |
| Y-Axis Travel | 3.9" |
| Z-Axis Travel | 23.2" |
| Spindle Nose / Spindle Bore | A2-6" / 2.9" |
| Spindle Speeds | 5,000 RPM |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 7.5 HP |
| Number of Tool Positions | 12 Station Turret |
| Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
| Machine Dimensions | 107" x 76" x 85" |
| Machine Weight | 12,760 lbs. |
