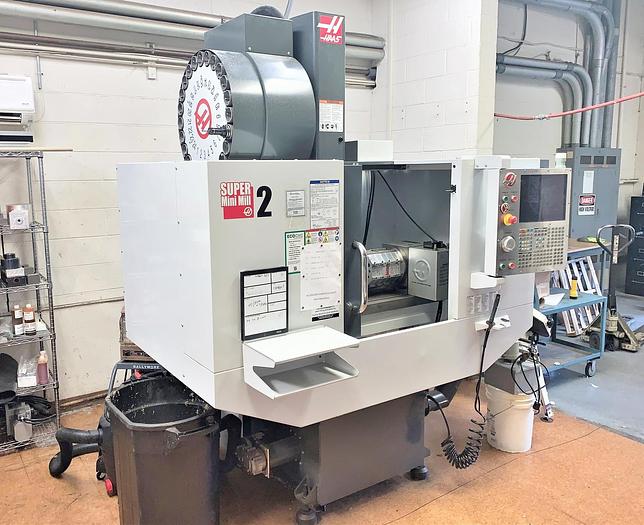

2011 Haas Super Mini Mill 2
No longer available
2011 Haas Super Mini Mill 2
$36,500 (USD)
Location:Maryland
Description
4th Axis Drive & Wiring

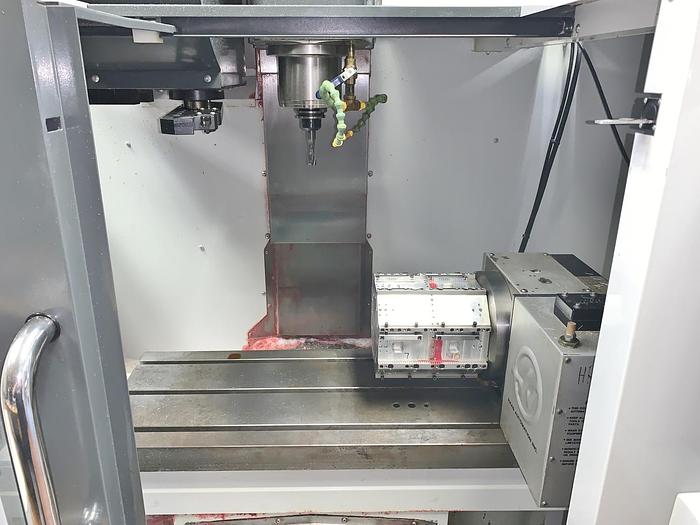

Haas HRT210 Rotary Table
750 MB Expanded Memory
Rigid Tapping
Chip Auger
Spindle Load Monitor
Quick Code
Memory Lock Keyswitch
RS 232 Port Interface
All Available Manuals
Spindle Time: 5,303 Hours
Motion Time: 5,150 Hours
Manufactured date 12/2011
Replacement cost w/4th axis is $71,180
Specifications
| Manufacturer | Haas |
| Model | Super Mini Mill 2 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 117749 |
| Machine Control | Haas CNC Control |
| Table Size | 40" x 14" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 14" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 15 HP |
| Rapid Traverse Rates | 1200 IPM |

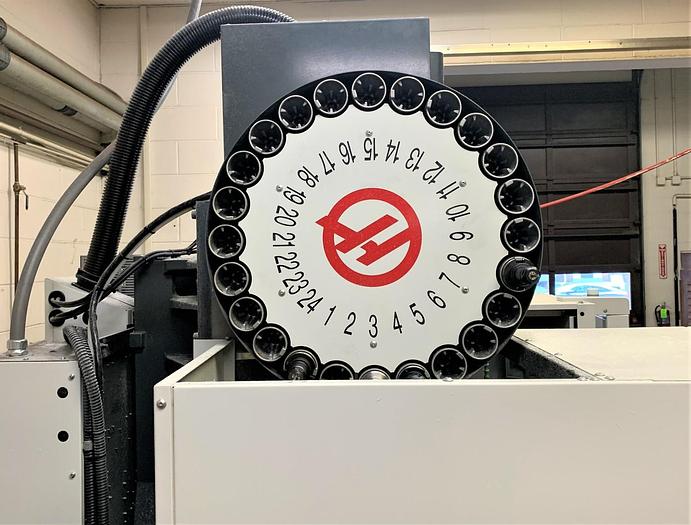

| Tool Magazine Capacity | 24 Station ATC Side Mount |
| Distance Spindle Nose to Table Top | 4" - 18" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91"x88"x100" |
| Machine Weight | 6,000 lbs |
