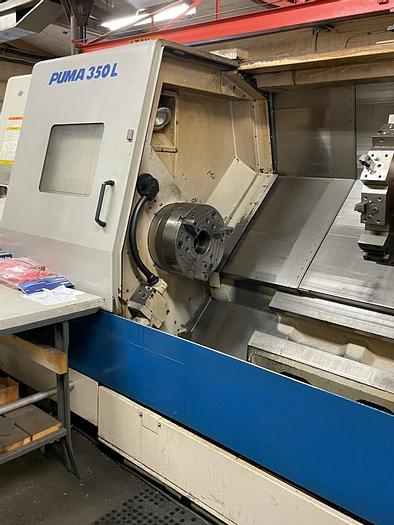

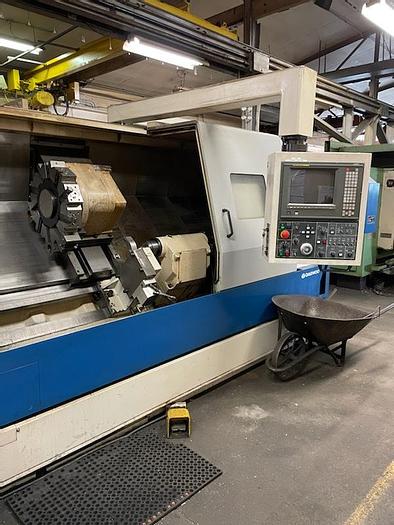

1997 Doosan/Daewoo Puma 350LB

1997 Doosan/Daewoo Puma 350LB

$39,950 (USD)

Pennsylvania

orCall (863) 439-6066

Description

16" 3 Jaw Hydraulic Chuck

Hydraulic Steady Rest

Chip Conveyor

Tool Presetter

Hydraulic Tailstock

Coolant System

RS 232 Port Interface

All Available Manuals

All Available Tool Blocks


Specifications

ManufacturerDoosan/Daewoo
ModelPuma 350LB
Year1997
ConditionUsed
Stock Number117748

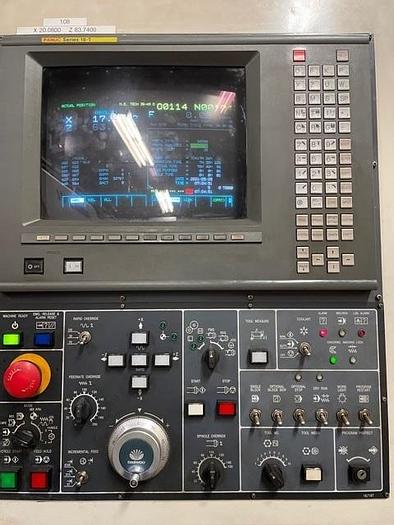

Machine ControlFanuc 18T
Chuck Size16" 3-Jaw Hydraulic
Maximum Swing over Bed27.5"
Maximum Turning Diameter21.7"
Maximum Turning Length82.7"
Distance Between Centers86"
X-axis travel14.2"
Z-Axis Travel84.8"
Spindle Nose / Bore / Bar CapacityA2-11" / 5.2" / 4.62"
Spindle Speed2,000 RPM
Spindle Motor50 HP

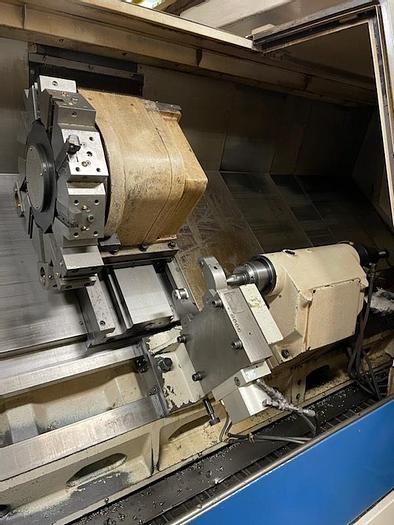

Number of Turret Positions12 Position Turret
Rapid Traverse Rates X/Z630 IPM / 790 IPM
Tailstock Body Travel / Quill Travel80.7" / 4.7"
Machine Dimensions LxWxH200" x 87" x 90"
Machine Weight22,000 lbs
