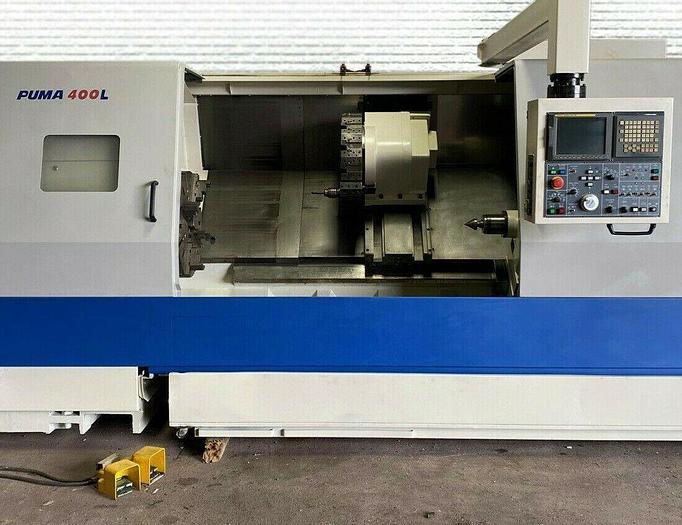

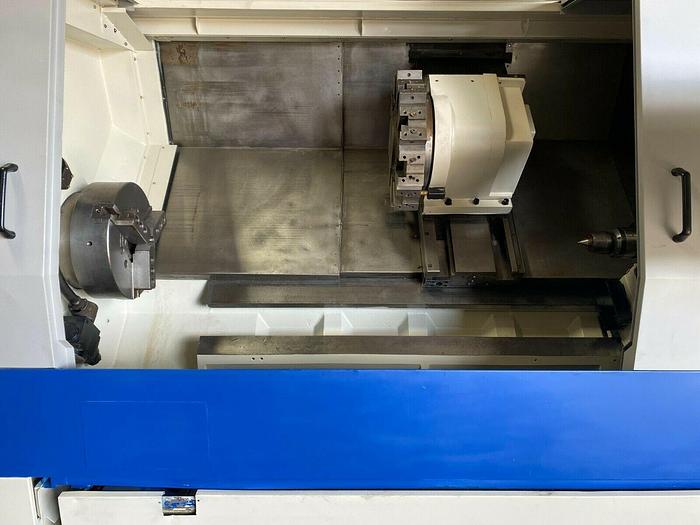

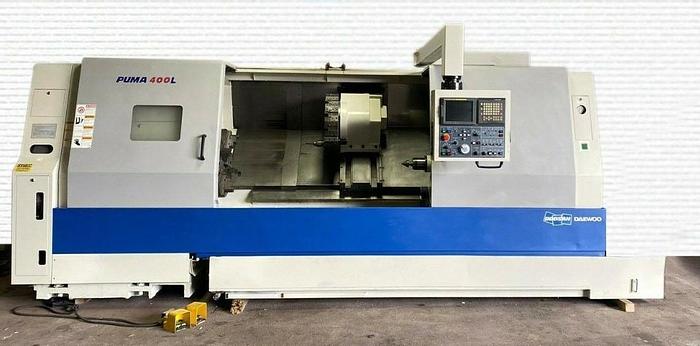

2001 Doosan/Daewoo Puma 400LB
No longer available
2001 Doosan/Daewoo Puma 400LB
$62,500 (USD)
Location:California
Description

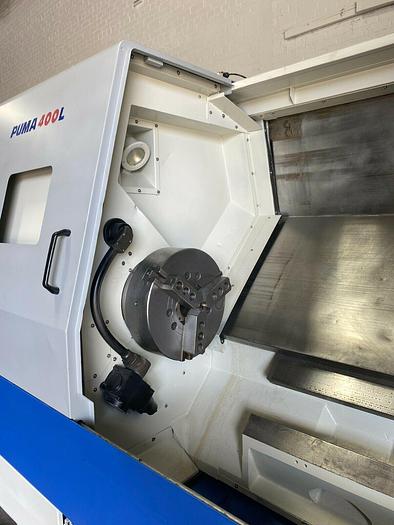

18" Kitagawa 3 Jaw Hydraulic Chuck

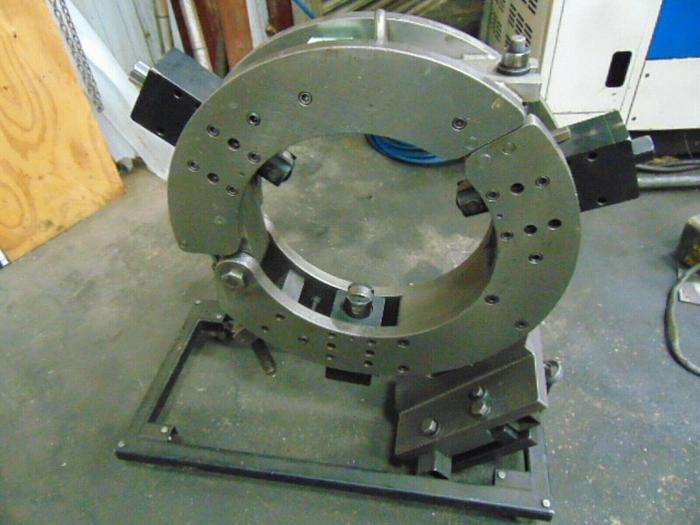

3 Point Steady Rest
Tool Presetter
Hydraulic Tailstock
Foot Pedals
Coolant System
PCM CIA Card Interface
RS 232 Port Interface
Wired 200/220V 3 Phase Power
All Available Manuals
All Available Tool Blocks
12,725 Run Hours
Specifications
| Manufacturer | Doosan/Daewoo |
| Model | Puma 400LB |
| Year | 2001 |
| Condition | Used |
| Stock Number | 117746 |
| Chuck Size | 18" 3-Jaw Hydraulic |
| Maximum Swing over Bed | 30.3" |
| Maximum Turning Diameter | 21.7" |
| Maximum Turning Length | 81.7" |
| Distance Between Centers | 86" |
| X-axis travel | 14.2" |
| Z-Axis Travel | 84.8" |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 5.2" / 4.62" |
| Spindle Speed | 2,000 RPM |
| Spindle Motor | 50 HP |

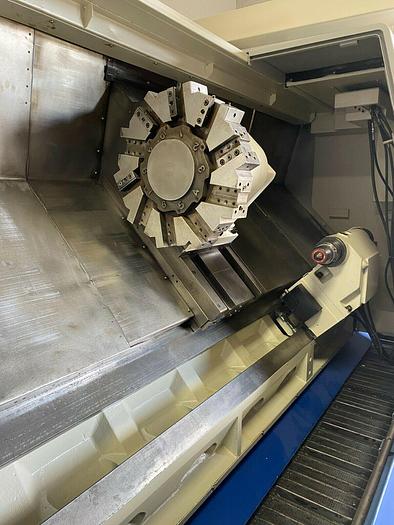

| Number of Turret Positions | 10 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 790 IPM |
| Tailstock Body Travel / Quill Travel | 80.7" / 4.7" |
| Machine Dimensions LxWxH | 200" x 87" x 90" |
| Machine Weight | 22,000 lbs |
