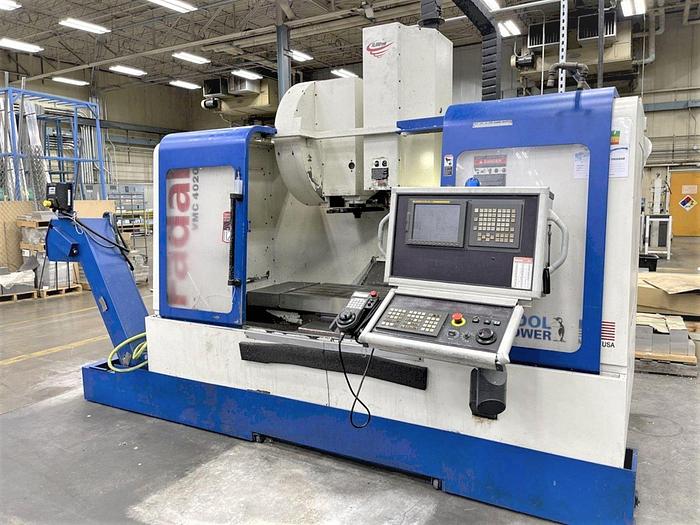

2005 Fadal VMC4020
No longer available
2005 Fadal VMC4020
$39,950 (USD)
Location:Michigan
Description

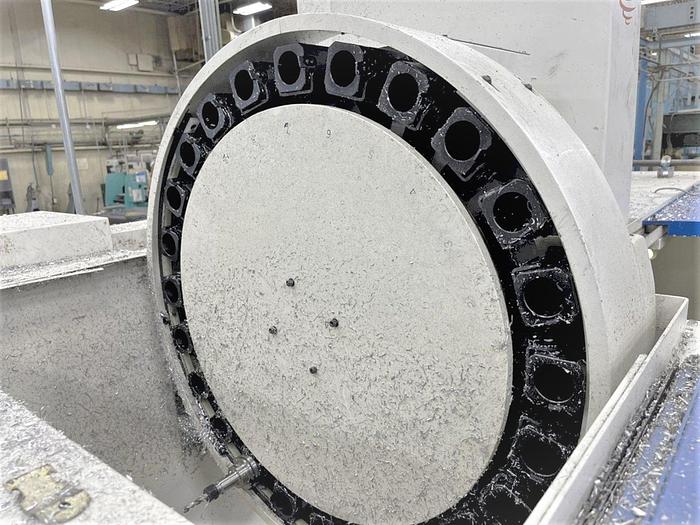

24 Station Side Mounted ATC
Dual Arm Toolchanger
Chip Conveyor
Remote Jog Handle
Coolant System with Tank & Pump Boxed Ways
3.5" Floppy Disk Interface RS 232 Port Interface
2980 Run Time Hours
Specifications
| Manufacturer | Fadal |
| Model | VMC4020 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 117739 |
| Quantity | 1 |

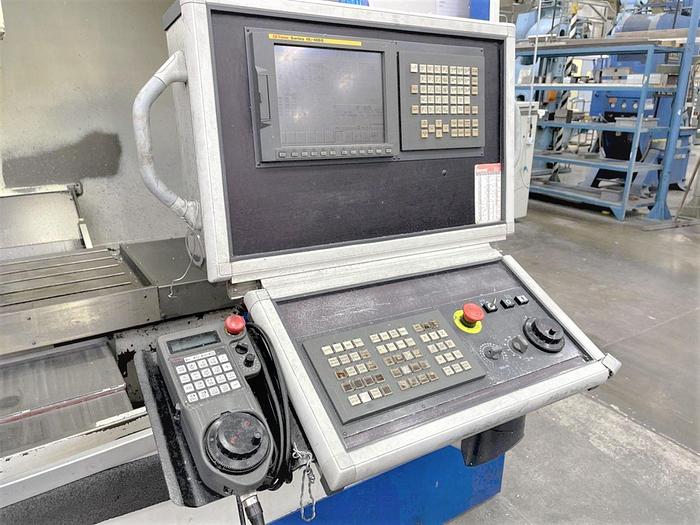

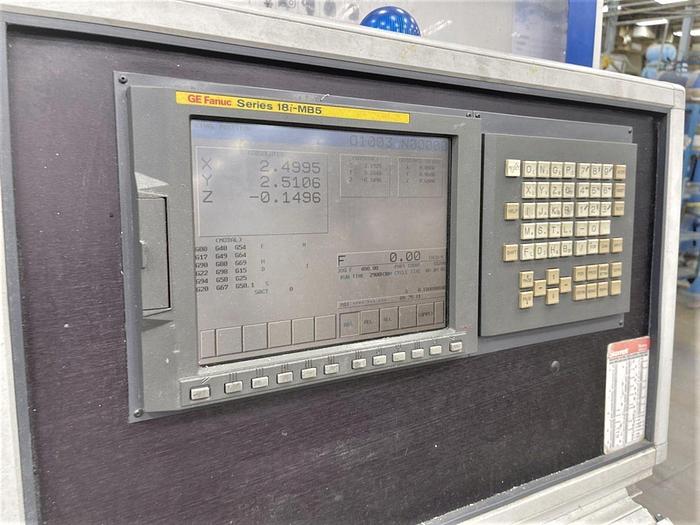

| Control | Fanuc 18i-MB5 Control |

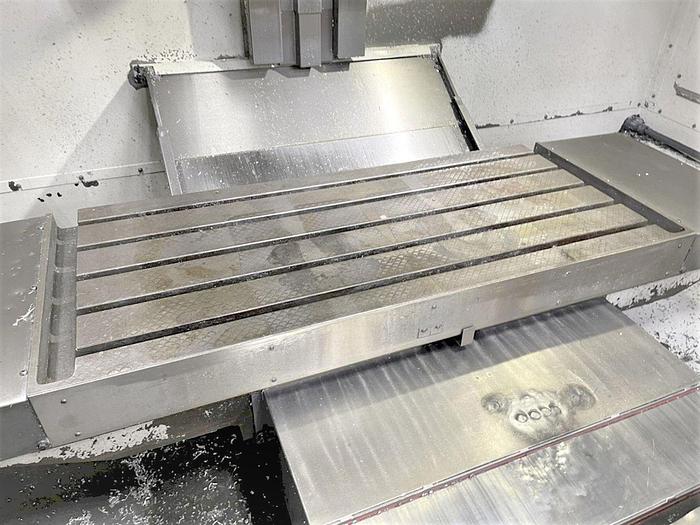

| Table Size | 48" x 20" |
| Maximum Table Load | 3,641 lbs. |
| X-Axis Travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10,000 rpm |
| Spindle Motor | 15 HP |
| Tool Magazine Capacity | 24 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 6" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 900 ipm, 900 ipm, 700 ipm |
| Machine Dimensions LxWxH | 116" x 97" x 87" |
| Machine Weight | 12,000 lbs. |
