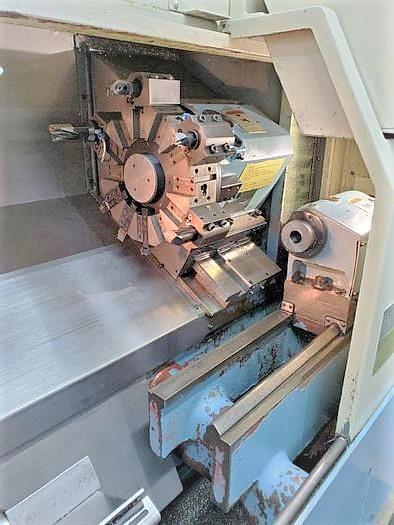

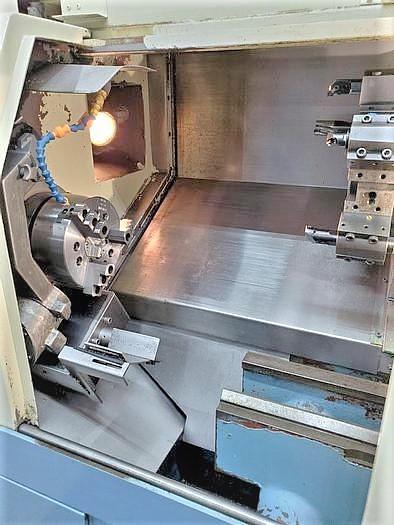

1999 Dainichi F-20
No longer available
1999 Dainichi F-20
$17,500 (USD)
Location:Ohio
Description
Tool Presetter
Parts Catcher
Tailstock
Misc Tool Holders
All Available Manuals
Specifications
| Manufacturer | Dainichi |
| Model | F-20 |
| Year | 1999 |
| Condition | Used |
| Stock Number | 117737 |

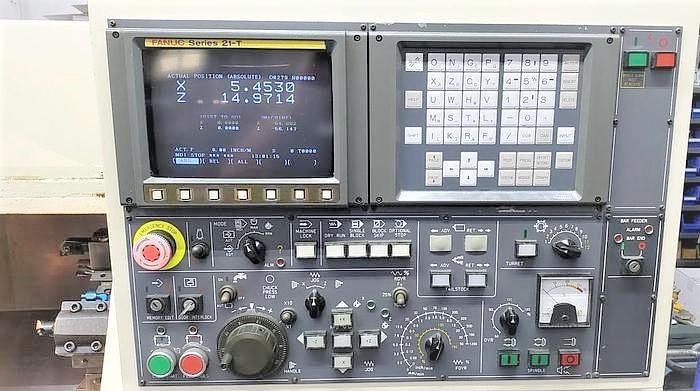

| Machine Control | Fanuc 21T |
| Chuck Size | 8" 3-Jaw Hydraulic |
| Maximum Swing | 17.72" |
| Maximum Machining Diameter | 9.84" |
| Maximum Machining Length | 23.62" |
| Distance Between Centers | 24.41" |
| X-Axis Travel | 5.9" |
| Z-Axis Travel | 26.3" |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 2.4" / 2" |
| Spindle Speeds | 45- 4,500 rpm |
| Spindle Motor | 15 HP |
| Number of Turret Positions | 12 Position Turret |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.9" / 3.94" / MT #4 |
| Machine Dimensions LxWxH | 96" x 70" x 72" |
| Machine Weight | 8,700 lbs |
