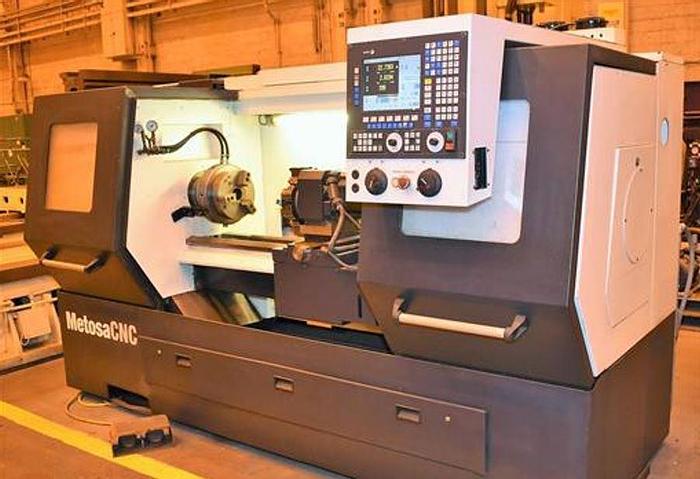

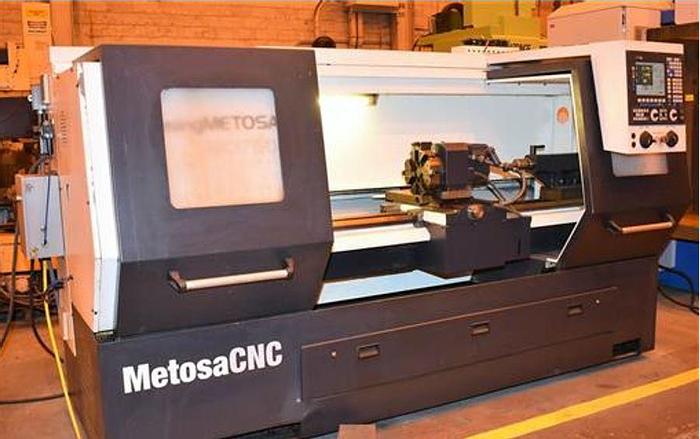

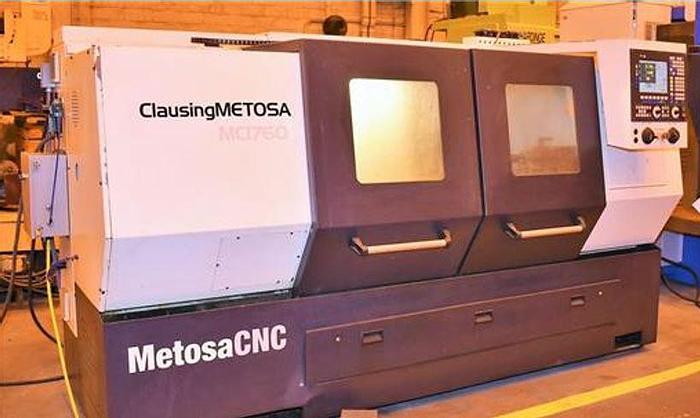

2012 Clausing Metosa MC1760
No longer available
2012 Clausing Metosa MC1760
$17,500 (USD)
Location:Pennsylvania
Description

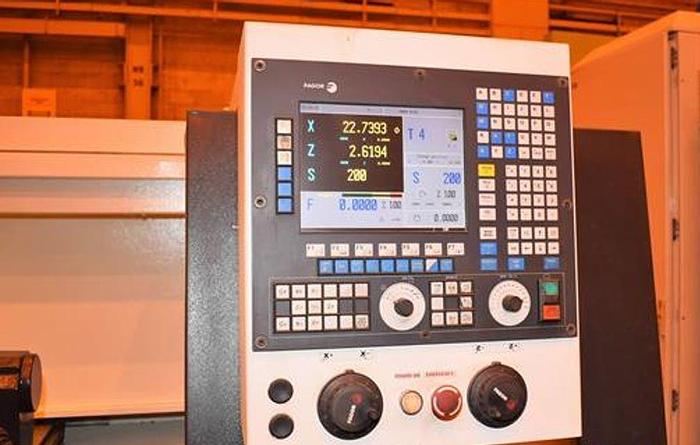

10.4" Color LCD Display
User Definable Turning Cycles
Auto Lubrication System
Tailstock
Coolant System
New Spindle bearings recently installed

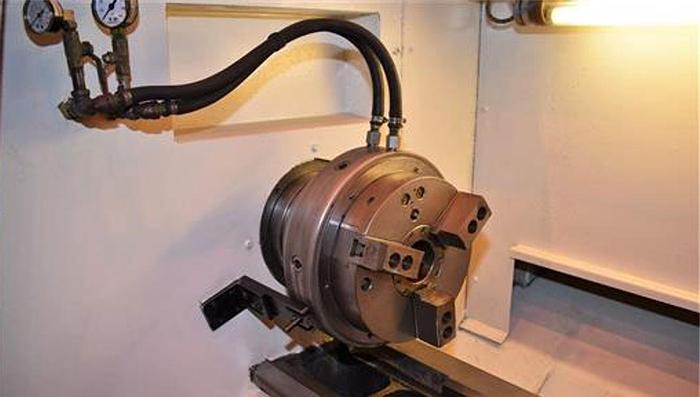

Clunking noise in the video is the air mechanism that opens and closes the chuck
Specifications
| Manufacturer | Clausing Metosa |
| Model | MC1760 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 117736 |
| Machine Control | Fagor 8055I Conversational |
| Chuck Size | 10" 3-Jaw Air |
| Maximum Swing over Bed | 17.7" |
| Maximum Swing Over Cross Slide | 10" |
| Distance Between Centers | 60" |
| Cross Slide Width | 8.1" |
| Spindle Nose / Bore / Bar Capacity | D1-6 / 2.5" / 2.5" |
| Spindle Speeds | 0-3,000 rpm |
| Spindle Motor | 15 hp |
| Tailstock Body Travel / Center | 7.8" / #5MT |
| Rapid Traverse Rates | 393 ipm |
| Machine Dimensions LxWxH | 129"x53"x75" |
| Machine Weight | 5,260 lbs |

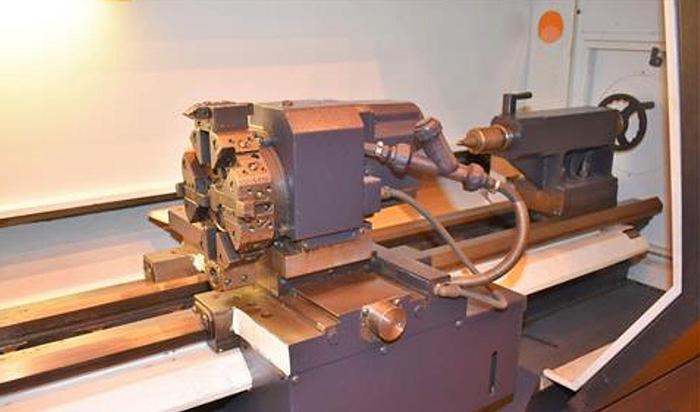

| Number of Turret Positions | 8 |
