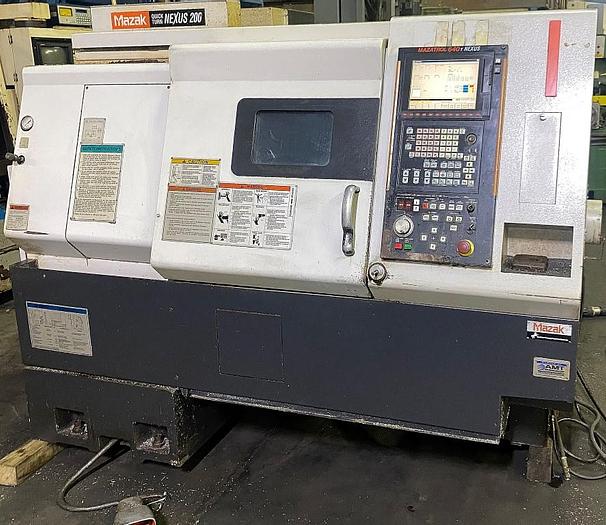

2004 Mazak Nexus QTN 200
No longer available
2004 Mazak Nexus QTN 200
$23,500 (USD)
Ohio
Description
8" 3 Jaw Hydraulic Chuck

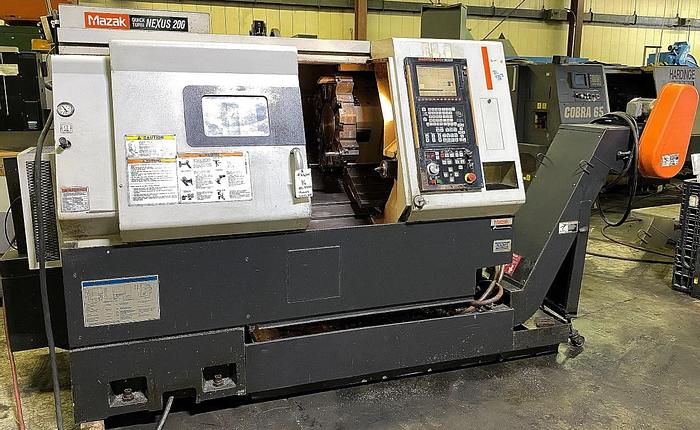

Chip Conveyor
Automatic Tool Eye
Programmable Tailstock
IC Memory Card Interface
PCM CIA Interface (2 slots)
3.5" Floppy Disk Interface
RS232 Port Interface
Hydraulic Pressure Interlock
Chuck Open/Close Confirmation
Door Interlock
Multi-Tap Transformer Coolant Tank with Pump All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 200 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117733 |

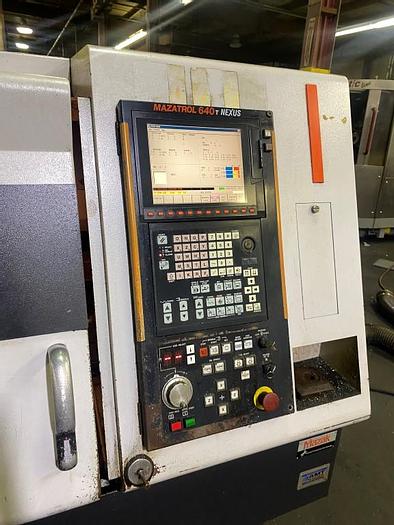

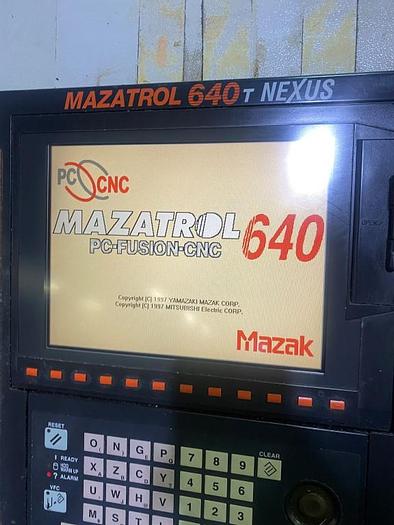

| Control | Mazatrol Fusion 640T Nexus |
| Chuck Size | 8" 3-Jaw Hydraulic |
| Maximum Swing | 24" |
| Maximum Cutting Diameter | 14" |
| Maximum Machining Length | 20.1" |
| X-Axis Travel | 7.5" |
| Z-Axis Travel | 21.125" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.0" / 2.00" |
| Spindle Speeds | 5,000 RPM |
| Spindle Motor | 35 HP |

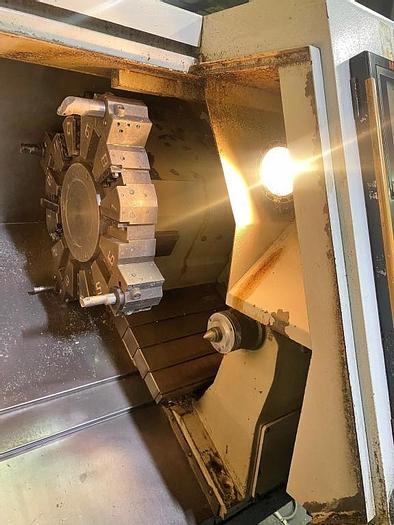

| Number of Turret Positions | 12 Position Drum |
| Rapid Traverse Rates X/Z | 1181 / 1299 IPM |
| Tailstock Body Travel / Center | 21.75" / MT#5 |
| Machine Dimensions LxWxH | 99.6" x 70.1" x 72.4" |
| Machine Weight | 10,803 lbs. |
