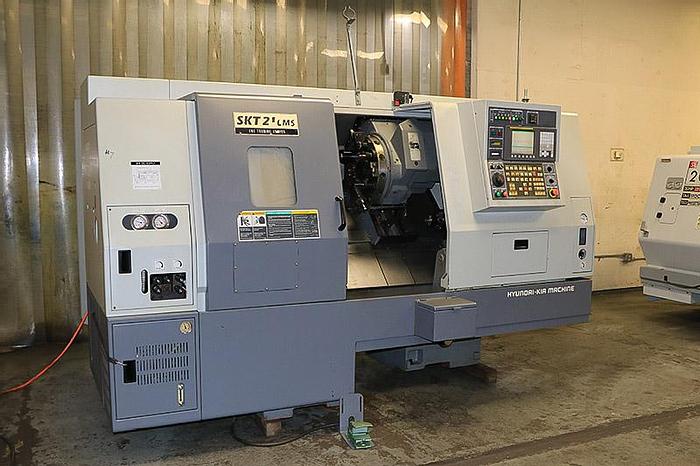

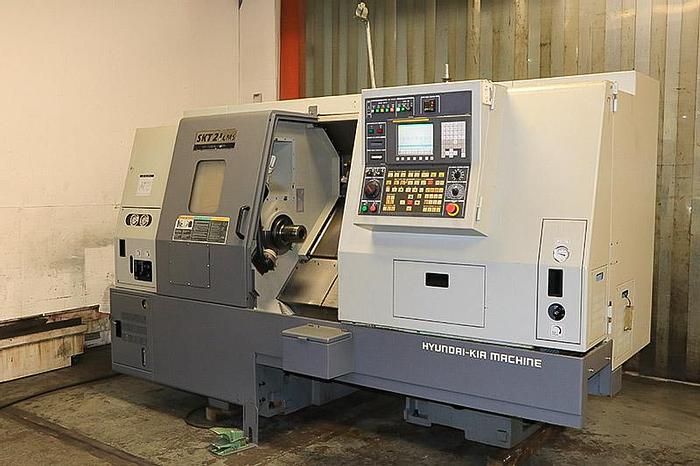

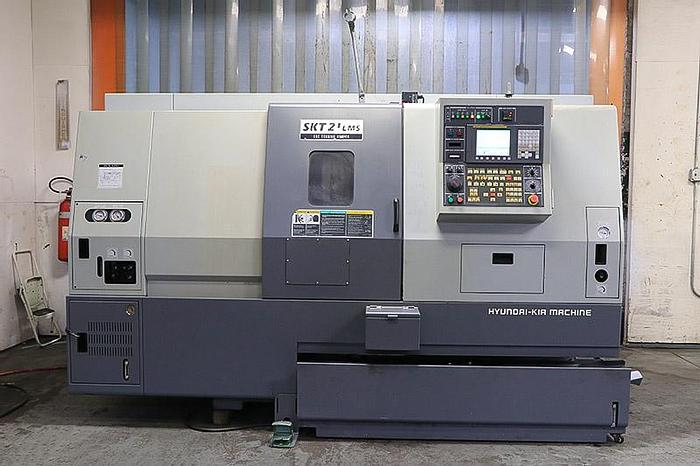

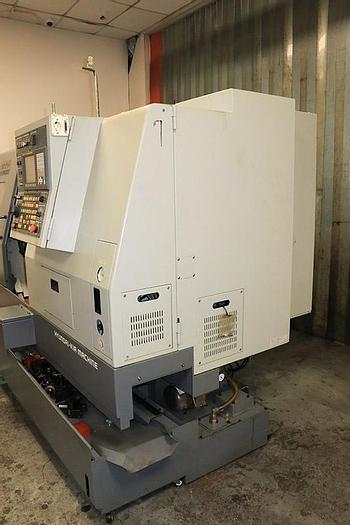

2006 Hyundai-Kia SKT-21LMS
No longer available
2006 Hyundai-Kia SKT-21LMS
$34,500 (USD)
Location:New Jersey
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

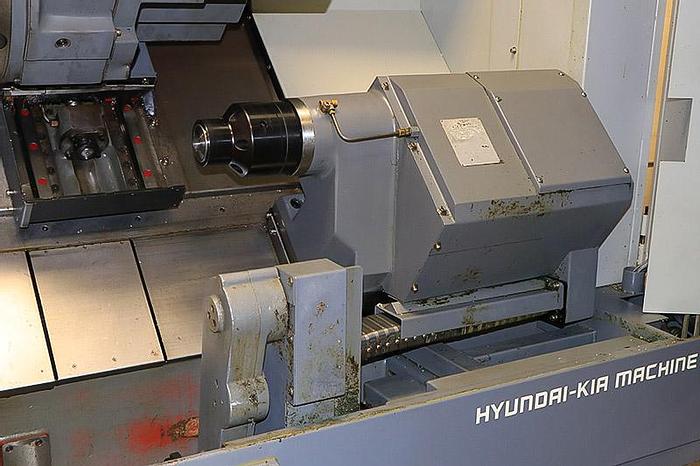

Subspindle
ATS 16C Collet Chuck on Main Spindle
ATS 16C Collet Chuck on Subspindle
Automatic Parts Catcher
Tool Presetter
Servo Turret
All Available Static & Live Tooling
All Available Manuals
Complete Coolant System with Tank & Pump

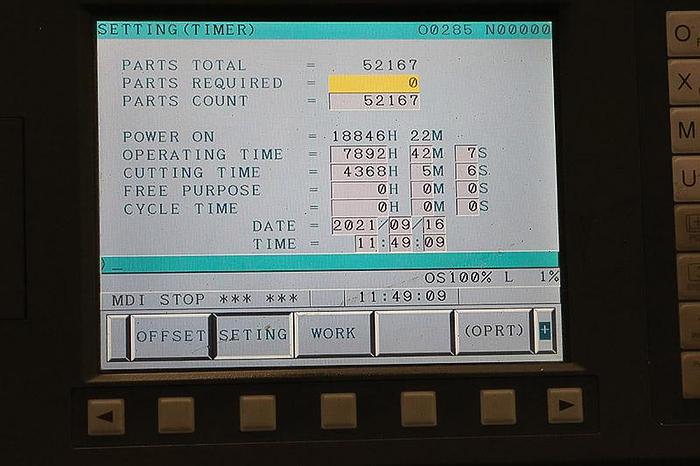

ONLY 4368 Cutting Hours
Specifications
| Manufacturer | Hyundai-Kia |
| Model | SKT-21LMS |
| Year | 2006 |
| Condition | Used |
| Stock Number | 117731 |

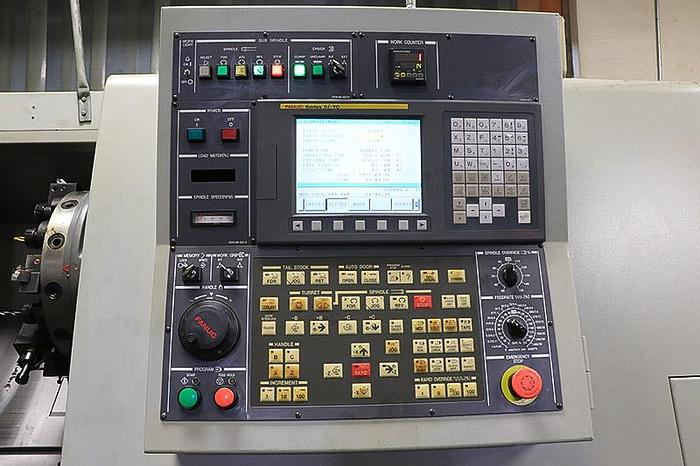

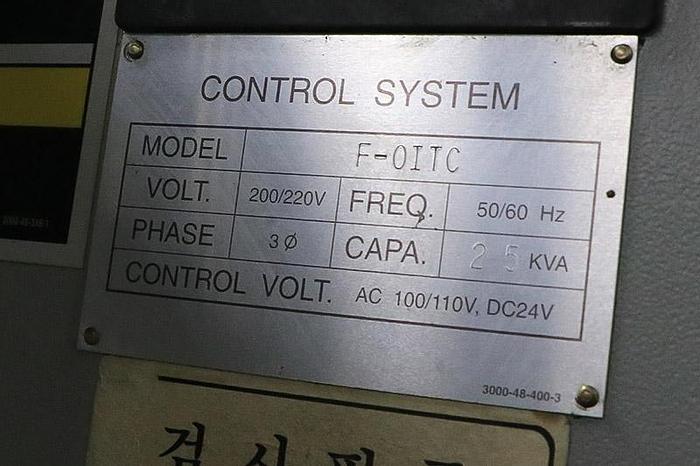

| Machine Control | Fanuc 0iTC |
| Chuck types main / subspindle | ATS 16C Collet / ATS 16C Collet |
| Maximum swing | 21.6" |
| Maximum cutting diameter | 10" |
| Maximum machining length | 20.9" |
| Maximum bar capacity | 2.8" |
| X-axis travel | 8.7" |
| Z-axis travel | 21.7" |
| Minimum spindle index increment | 0.001 Degree |
| Spindle nose / spindle bore | A2-6" / 3.14" |
| Spindle speed | 40 - 4000 RPM |
| Spindle motor 30 min. / cont. | 20 HP / 15 HP |
| Subspindle Speed | 30 - 6,000 RPM |
| Subspindle Motor | 5 HP |
| Rotary tool speed | 30 - 3000 RPM |
| Rotary tool motor | 5.5 HP |

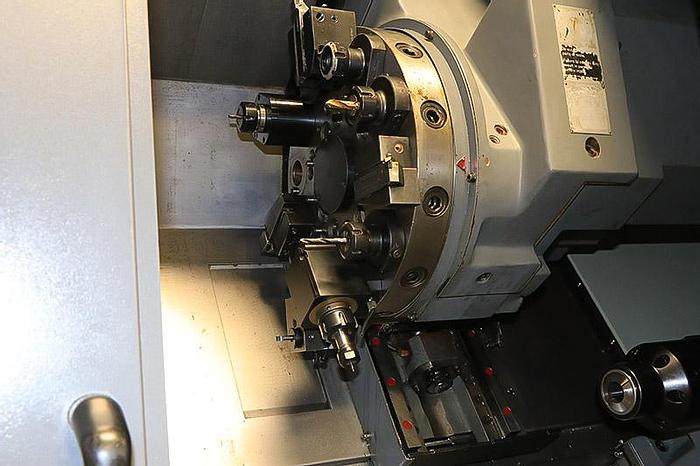

| Turret type / live positions | 12 Station VDI / 6 Positions |
| Rapid traverse rates | n/a |
| Machine dimensions | 124"x66"x68" |
| Machine weight | 10,100 lbs. |
