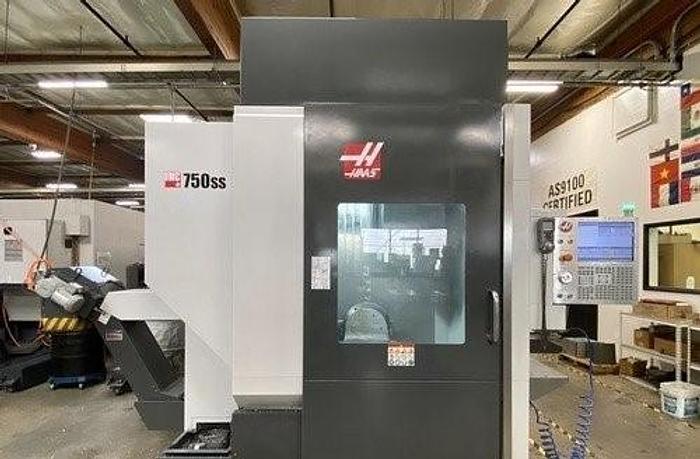

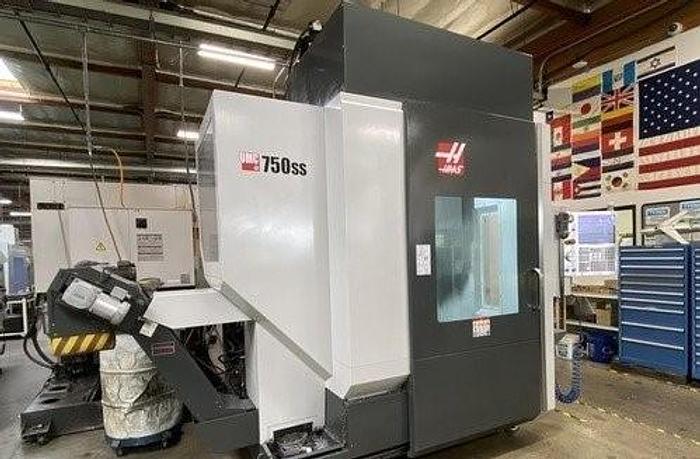

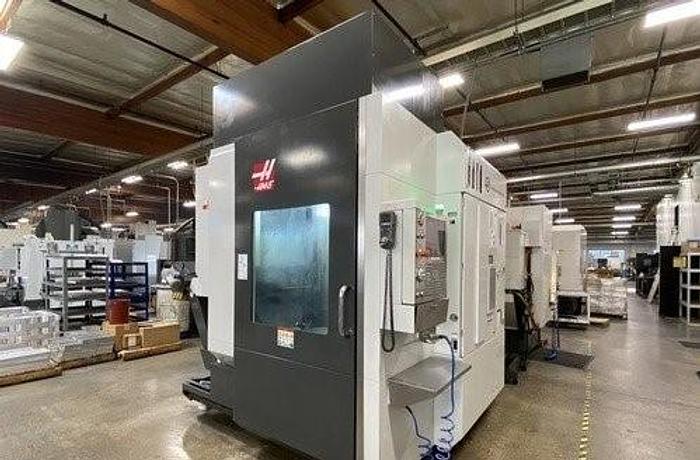

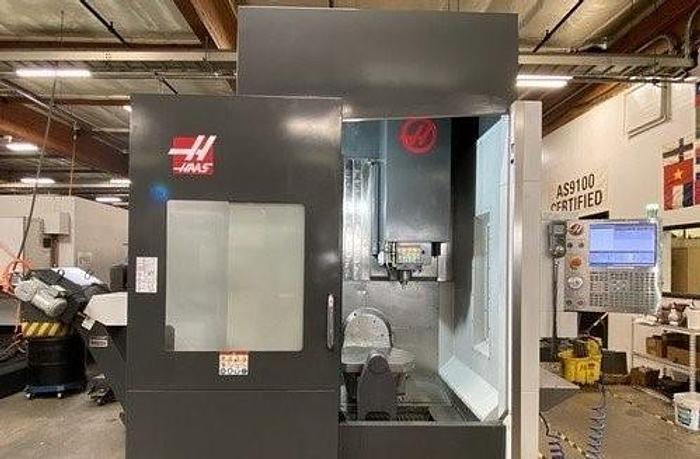

2016 Haas UMC-750SS
No longer available
2016 Haas UMC-750SS
$115,950 (USD)
California
Description

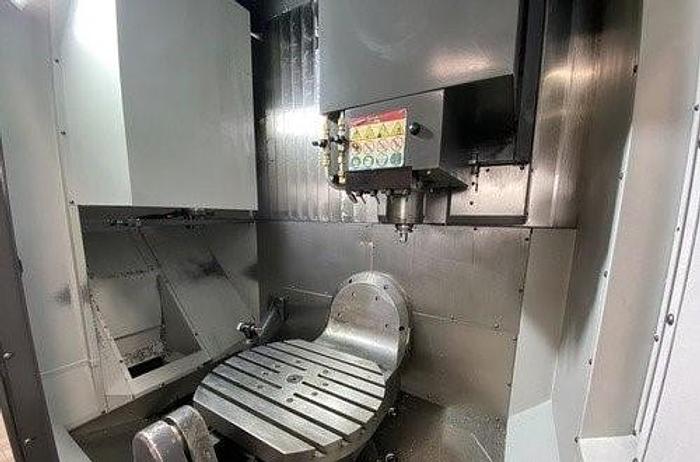

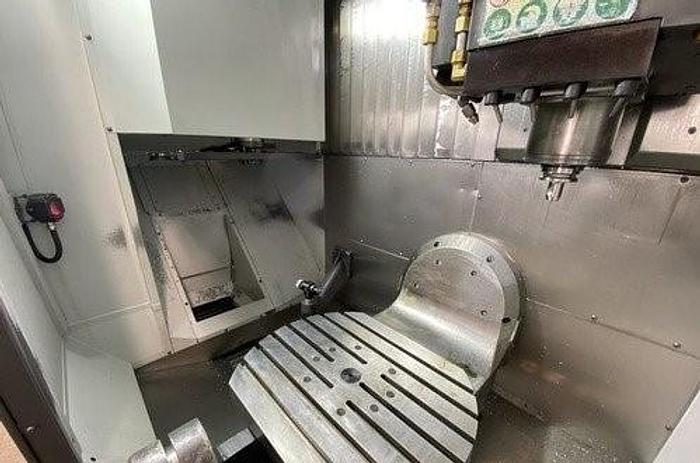

5 Axis with Integrated Trunnion Style Table
Through Spindle Coolant System 1000 PSI
15,000 RPM Max Spindle Speed

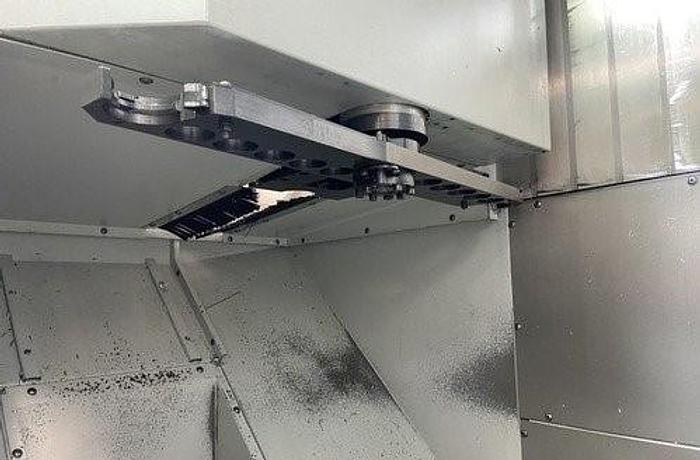

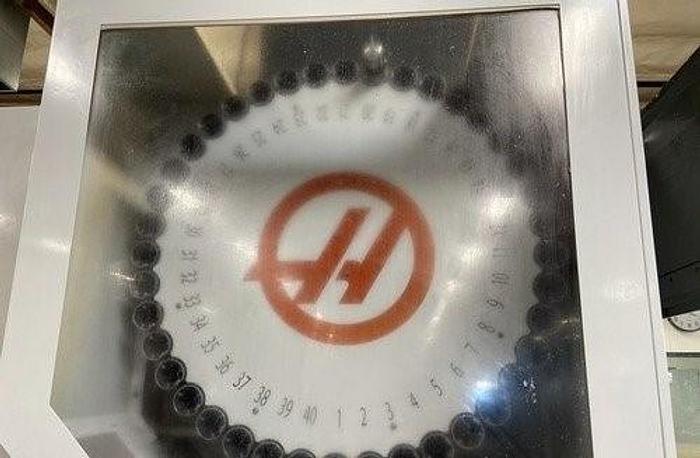

40 Station Twin Arm Automatic Tool Changer
Wireless Intuitive Probing System with Tool and Parts Probe
Henning Chip Conveyor
Programmable Coolant Nozzle
High Speed Machining
Remote Jog Handwheel
Rigid Tapping
Through Tool Air Blast
Dynamic Work Offset and Tool Center Point Control
Second Home Position

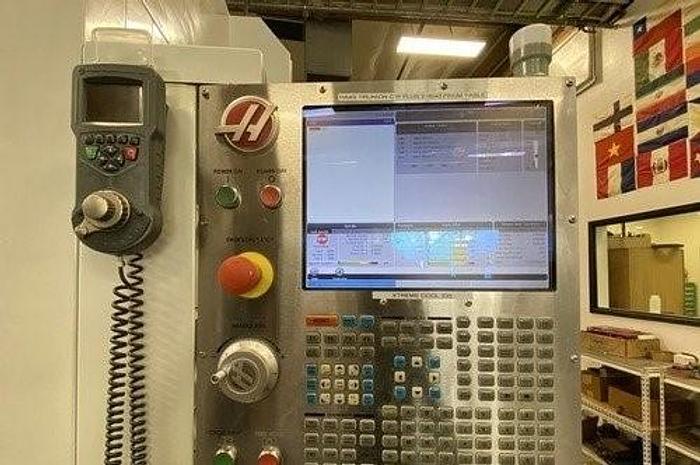

HAAS NextGen 5-Axis CNC Control
USB Port Interface
Ethernet Port Interface
Memory Stick with Backup Parameters
Machine Top Cover

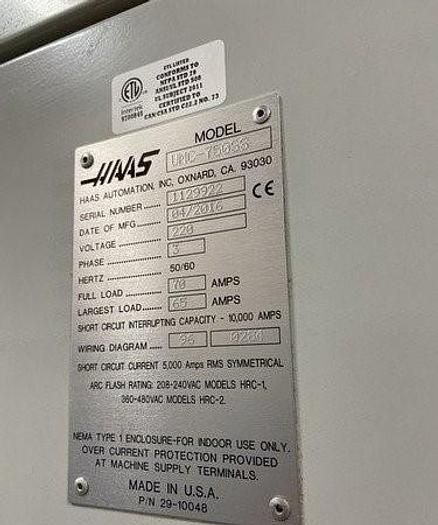

Wired 220V Electrics
Specifications
Manufacturer | Haas |
Model | UMC-750 |
Year | 2016 |
Condition | Used |
Stock Number | 117726 |
Table size | 19.7" Diameter |
Table load capacity | 660 lbs |
X axis travel | 30" |
Y axis travel | 20" |
Z axis travel | 20" |
B axis rotate of trunnion | 110 Deg to -35 Deg |
C axis table rotation | 360 Degrees |
Spindle taper | CAT 40 |
Spindle speed | 15,000 RPM |
Spindle motor | 30 HP |
Tool magazine | 40 +1 Station Tool Changer |
Rapid traverse rates | 1200 IPM |
Maximum feed rates | 650 IPM |
Machine dimensions | 157"x94"x101" |
Machine weight | 19,100 lbs |
