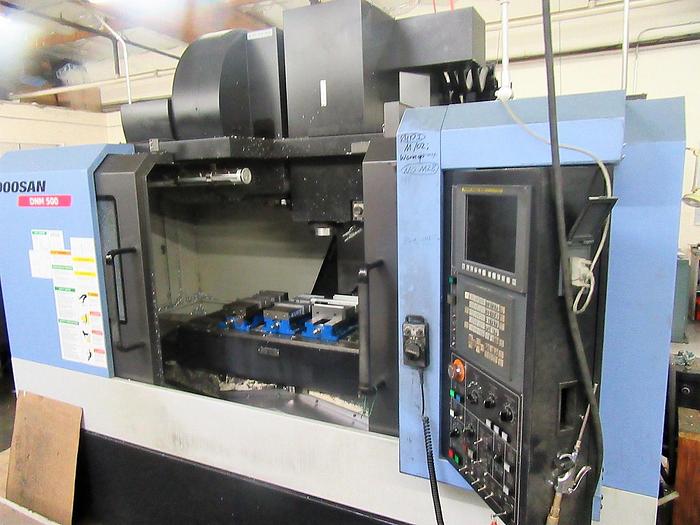

2012 Doosan DNM 500
No longer available
2012 Doosan DNM 500
$53,500 (USD)
Location:California
Description
Coolant Through the Spindle
4th Axis Rotary Table
30 Station Side Mounted Tool Changer
Rigid Tapping
Remote Jog Handle
Spindle Orientation
Custom Macro B
Work Light
Wired 220V/3/50-60 Hz Electrics
All Available Manuals
Specifications
| Manufacturer | Doosan |
| Model | DNM 500 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 117715 |
| Machine Control | Fanuc 0iMD |
| Table size | 47.24" x 21.25" |
| Maximum Table Load | 1,760 lbs. |
| X-Axis Travel | 40" |
| Y-Axis Travel | 21.25" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 25 HP |
| Number of Tool Positions | 30 Station Side Mounted ATC |
| Tool Change Time Tool to Tool | 1.3 Seconds |
| Rapid Traverse Rates X, Y / Z | 1417 IPM / 1181 IPM |
| Cutting Feedrates | 590 IPM |
| Machine Dimensions | 127" x 90" x 102" |
| Machine Weight | 14,300 lbs. |
