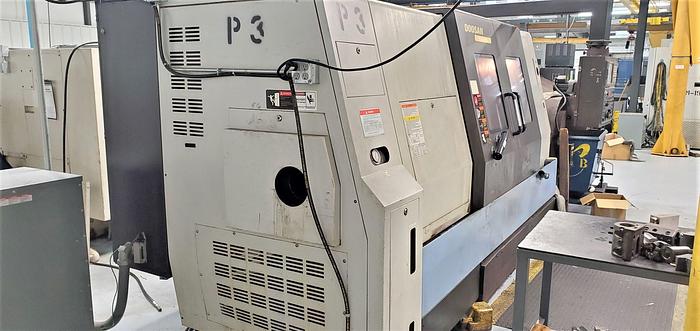

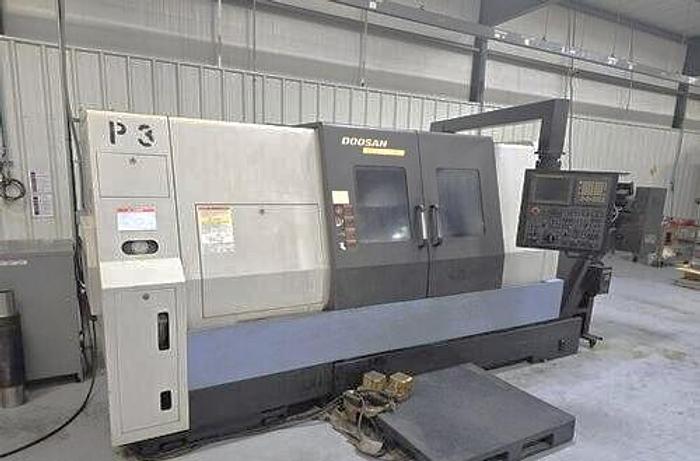

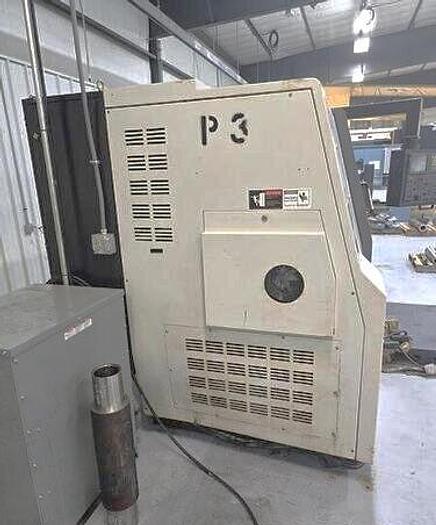

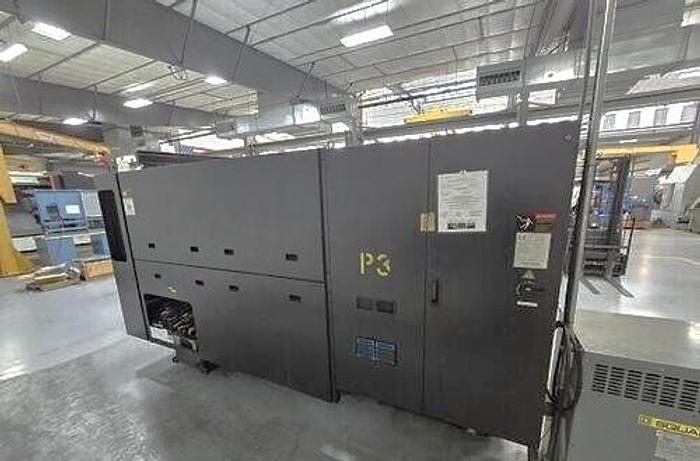

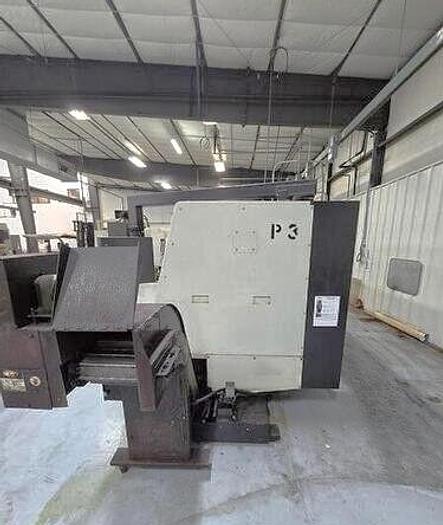

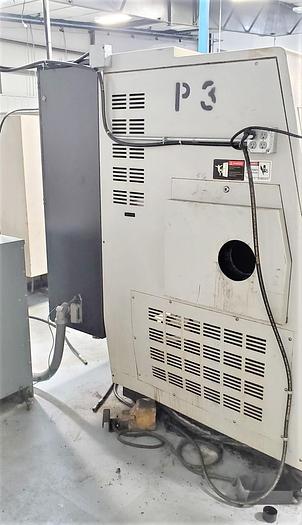

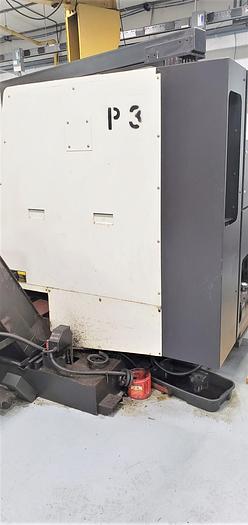

2008 Doosan Puma 400C
No longer available
2008 Doosan Puma 400C
$69,950 (USD)
Location:Texas
Description
Chip Conveyor 21" 3 Jaw Hydraulic Chuck Programmable Tailstock 3.5" Floppy Disk Interface RS 232 Port Interface Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed All Available Tooling All Available Manuals
Wired 200/220V Electrics
Specifications
| Manufacturer | Doosan |
| Model | Puma 400C |
| Year | 2008 |
| Condition | Used |
| Stock Number | 117710 |

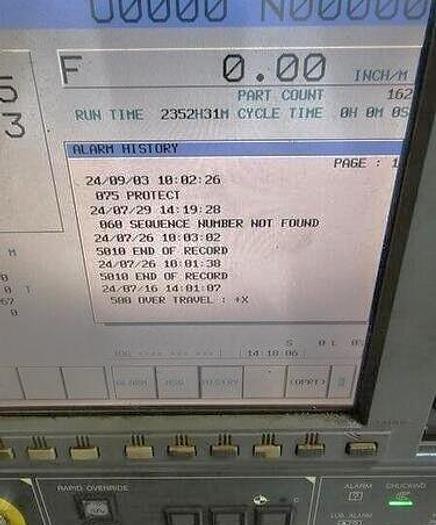

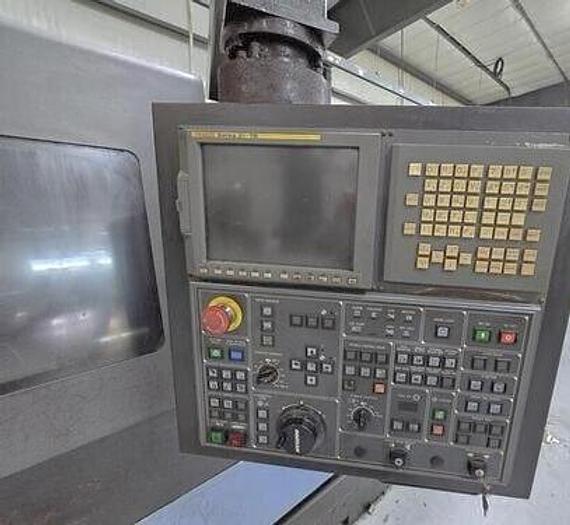

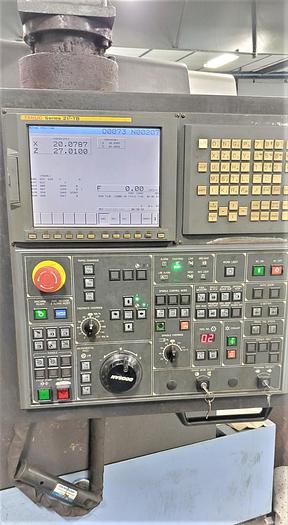

| Control | Fanuc 21i-TB |

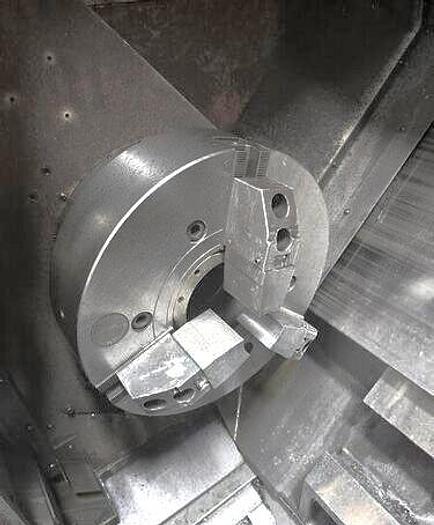

| Chuck Size | 21" Hydraulic Chuck |
| Maximum Swing | 30.31" |
| Maximum Turning Diameter | 21.7" |
| Maximum Turning Length | 41" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 14.25" |
| Z-Axis Travel | 43.5" |
| Spindle Nose / Spindle Bore | A2-15" / 7.1" |
| Spindle Speeds | 20 - 2,000 RPM |
| Spindle Motor | 50 HP |
| Transmission | 2 Speed Gearbox |

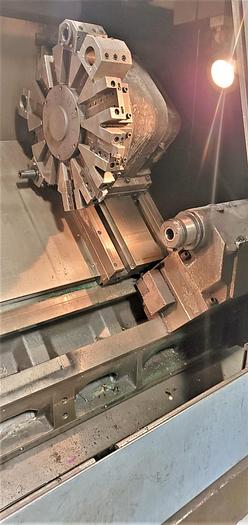

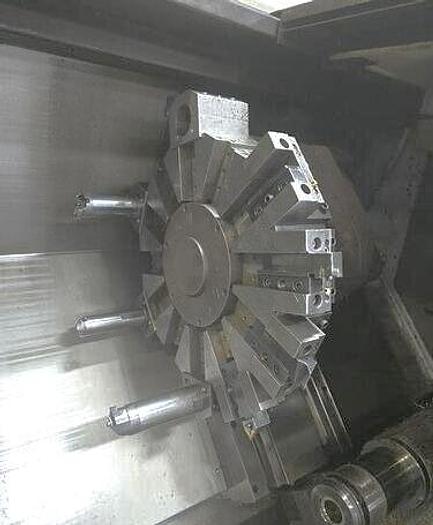

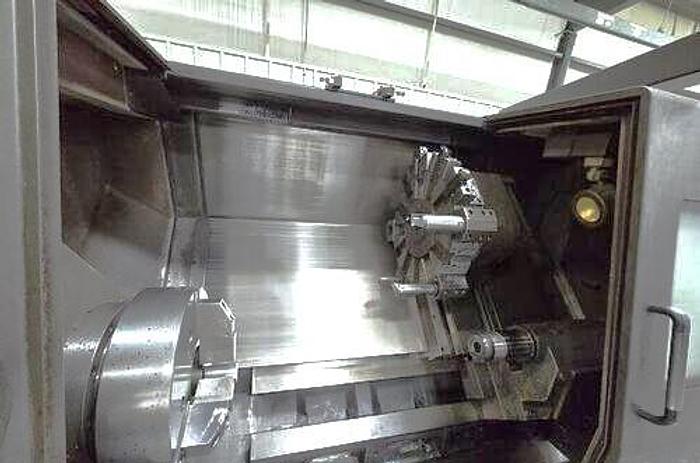

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 790 IPM |
| Tailstock Quill Diameter / Center | 4.7" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions | 201" x 94" |
| Machine Weight | 18,100 lbs. |
