2007 Doosan Puma 400C

2007 Doosan Puma 400C

$62,500 (USD)


orCall (863) 439-6066


Chip Conveyor 18" 3 Jaw Hydraulic Chuck Programmable Tailstock 3.5" Floppy Disk Interface RS 232 Port Interface Coolant System with Tank & Pump

Boxed Way Construction on Slant Bed All Available Tooling All Available Manuals

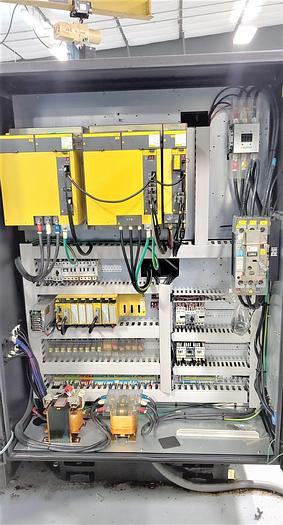

Wired 200/220V Electrics


ModelPuma 400C
Stock Number117709

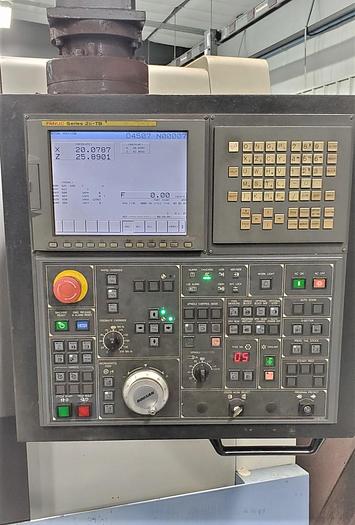

ControlFanuc 21i-TB

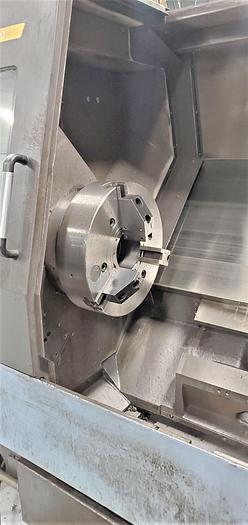

Chuck Size18" Hydraulic Chuck
Maximum Swing30.31"
Maximum Turning Diameter21.7"
Maximum Turning Length41"
Maximum Bar Capacity6.5"
X-Axis Travel14.25"
Z-Axis Travel43.5"
Spindle Nose / Spindle BoreA2-15" / 7.1"
Spindle Speeds20 - 2,000 RPM
Spindle Motor50 HP
Transmission2 Speed Gearbox

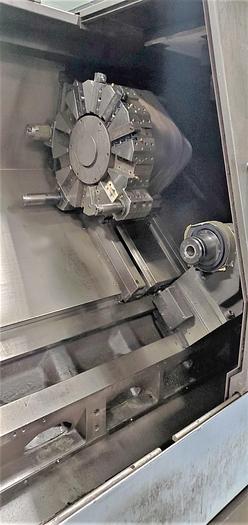

Number of Turret Positions12 Position Turret
Rapid Traverse Rates X/Z630 IPM / 790 IPM
Tailstock Quill Diameter / Center4.7" / MT #5
Tailstock Quill Travel4.7"
Machine Dimensions201" x 94"
Machine Weight18,100 lbs.
