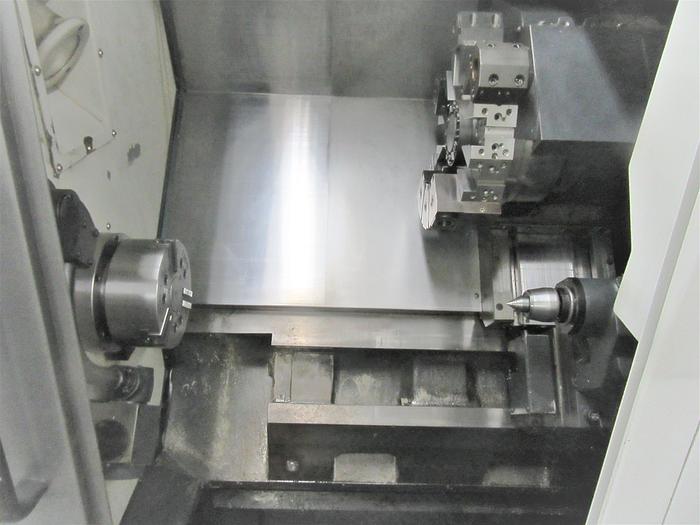

2004 Doosan/Daewoo Puma 240C
No longer available
2004 Doosan/Daewoo Puma 240C
$26,500 (USD)
Location:California
Description
10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Tool Presetter
Programmable Tailstock
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Doosan/Daewoo |
| Model | Puma 240C |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117705 |
| Machine Control | Fanuc i Series |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing over Bed | 21.7" |
| Maximum Cutting Diameter | 13.8" |
| Distance Between Centers | 26.3" |
| X-Axis Travel | 9.3" |
| Z-Axis Travel | 22.8" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.54" / 3.03" |
| Spindle Speeds | 35 - 3,500 rpm |
| Spindle Motor | 25 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/Z | 945 / 1,200 ipm |
| Tailstock Quill Diameter / Center | 3" / #4 MT |
| Tailstock Body Travel / Quill Travel | na / 3.1" |
| Machine Dimensions LxWxH | 135" x 66" x 72" |
| Machine Weight | 9,770 lbs |
