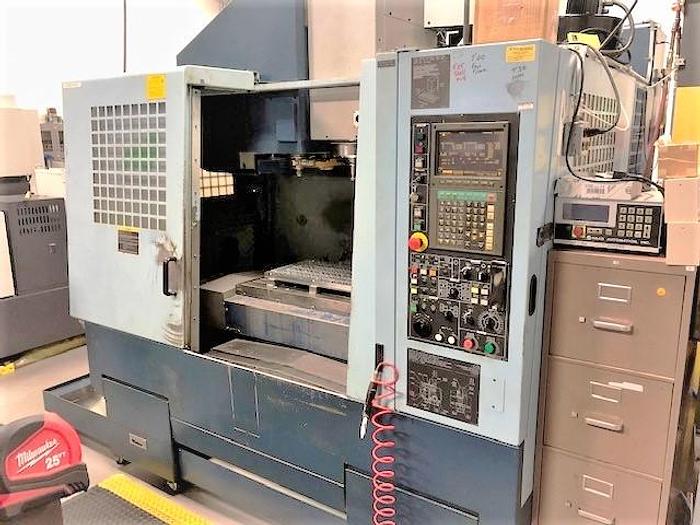

2000 Matsuura MC-660VG
No longer available
2000 Matsuura MC-660VG
$15,950 (USD)
Location:New York, NY
Description

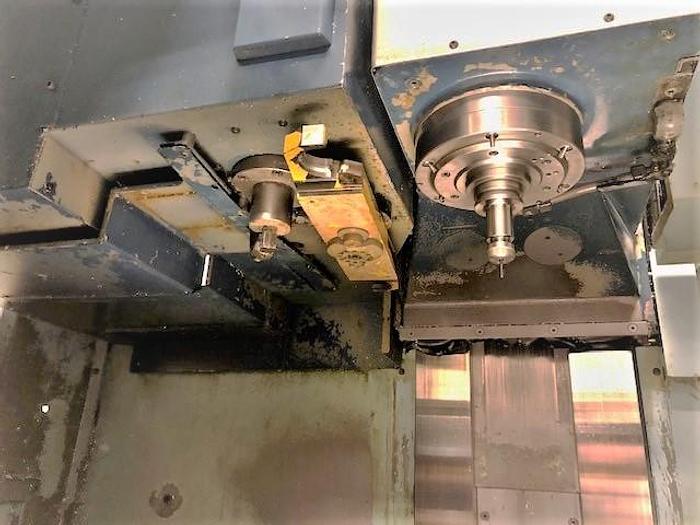

20,000 RPM Spindle
30 Station Side Mounted Tool Changer
RS 232 Port Interface
Rigid Tapping
Spindle Chiller Unit

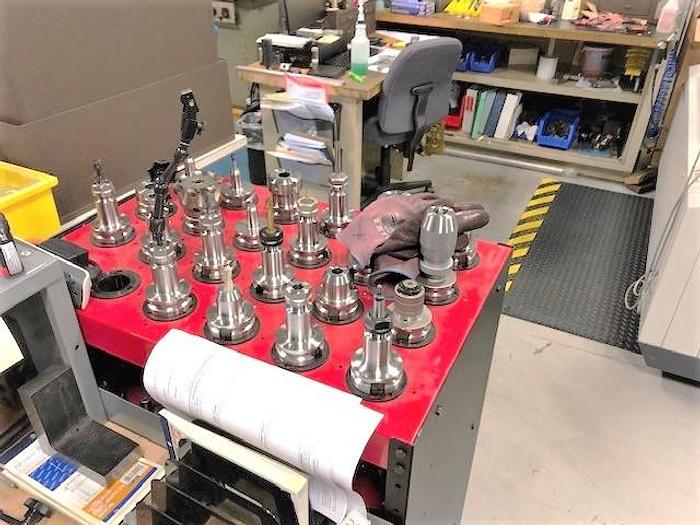

Large Variety of BT40 Toolholders
Specifications
| Manufacturer | Matsuura |
| Model | MC-660VG |
| Year | 2000 |
| Condition | Used |
| Stock Number | 117702 |

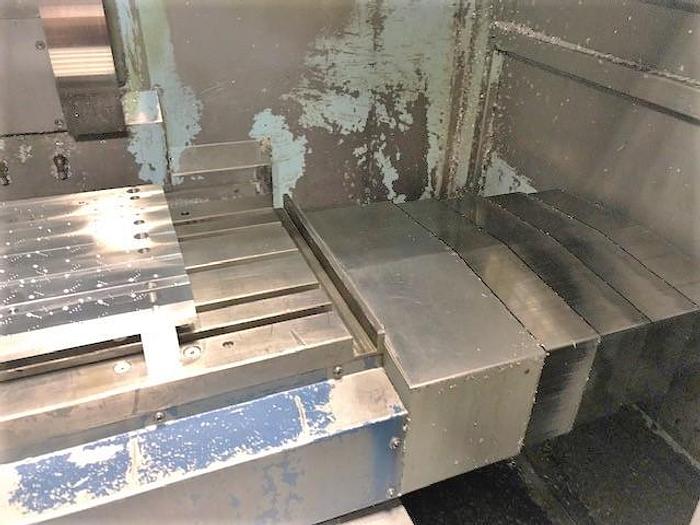

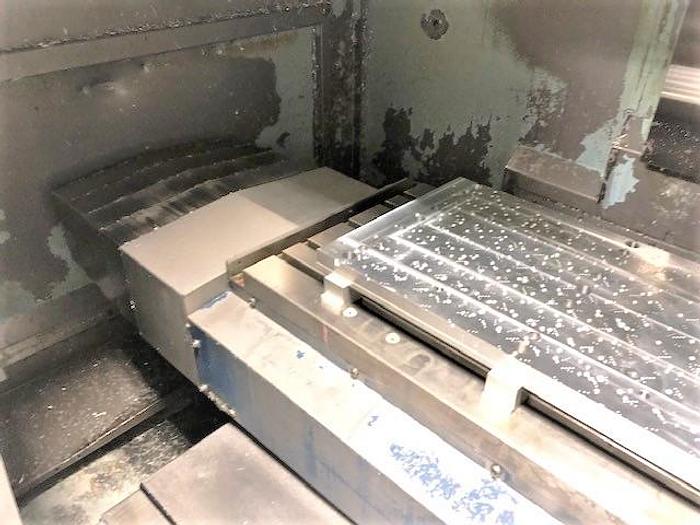

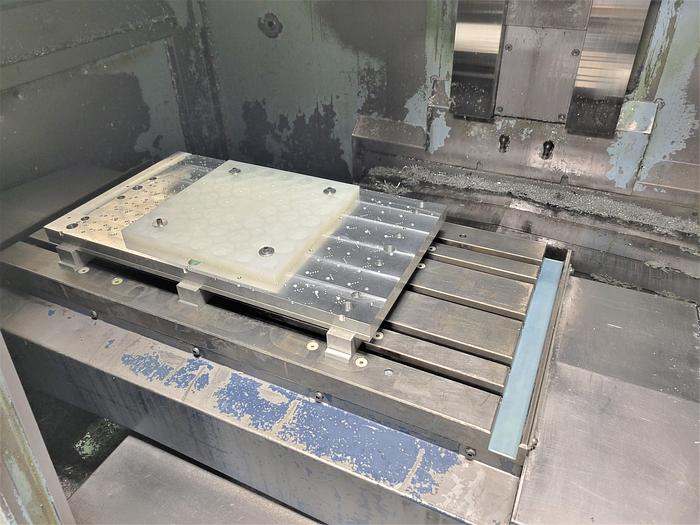

| Table size | 37" x 18.11" |
| Maximum Table Load | 880 lbs. |
| Distance Spindle Nose to Table Top | 5.9" - 24.4" |
| X-Axis Travel | 26" |
| Y-Axis Travel | 18.11" |
| Z-Axis Travel | 19.09" |
| Spindle Taper | BT 40 |
| Spindle Speed | 20,000 RPM |
| Spindle Motor | 20 HP |
| Number of Tool Positions | 30 Position ATC |
| Maximum Tool Diameter / Length / Weight | 5.9" / 11.8" / 17.6 lbs. |
| Cutting Feedrates | 394 IPM |
| Rapid Traverse Rates X, Y / Z | 1575 IPM / 1181 IPM |
| Machine Dimensions | 148" x 135" x 107" |
| Machine Weight | 12,500 lbs. |
