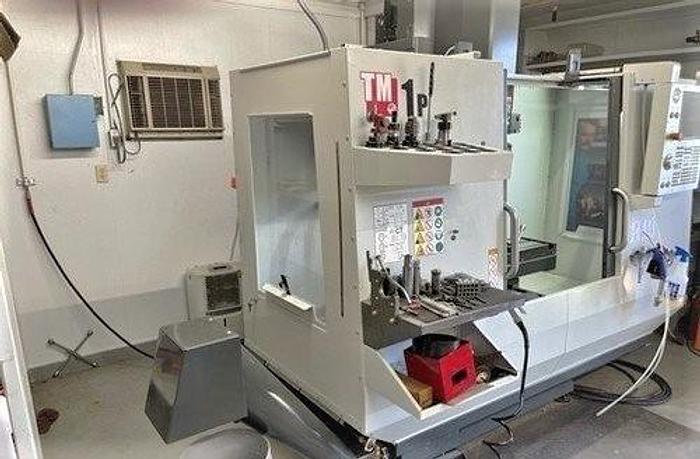

2018 Haas TM-1P
No longer available
2018 Haas TM-1P
$32,500 (USD)
Location:Oklahoma
Description
Rigid Tapping
Auger Style Chip Conveyor
User Definable Macros
Coolant Pump Kit
USB Port Interface
RS 232 Port Interface
Haas Intuitive Programming System
Price New as equipped at $41,000
Manufactured new in June 2018
Machine is wired 220V - 3 Phase Power
Specifications
| Manufacturer | Haas |
| Model | TM-1P |
| Year | 2018 |
| Condition | Used |
| Stock Number | 117698 |

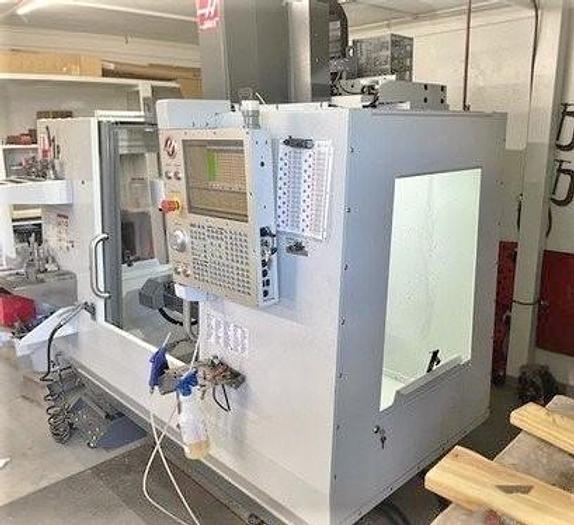

| Machine Control | Haas 32 BIT |

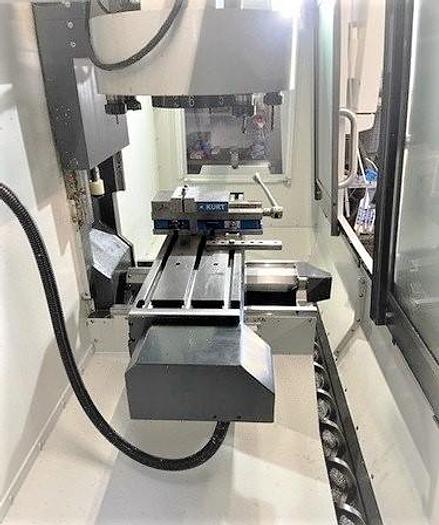

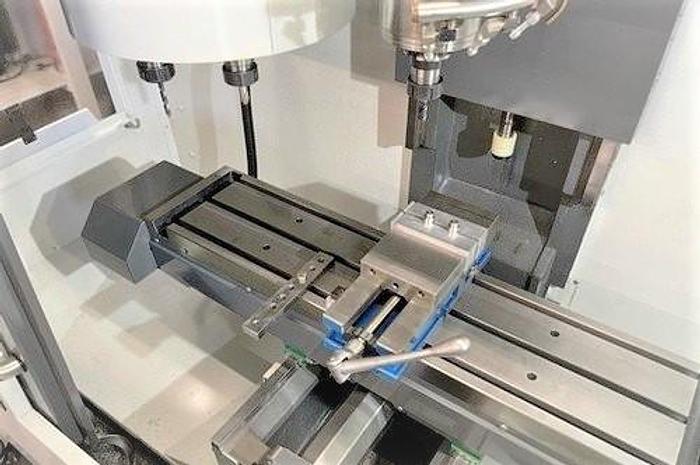

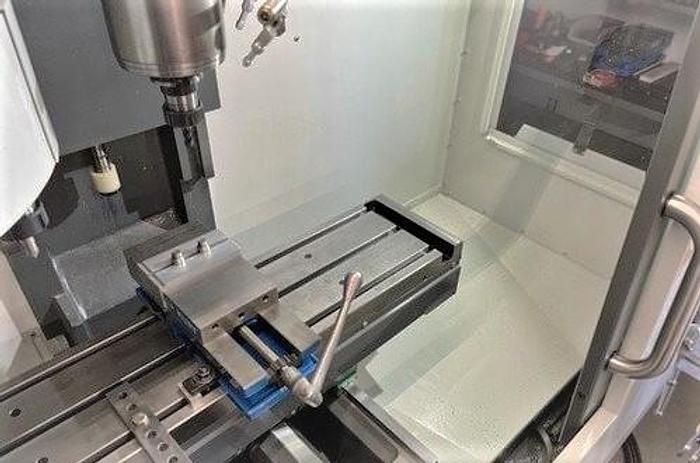

| Table size | 47.75" x 10.5" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 16" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 7.5 hp |
| Tool Magazine Capacity | 10 Position ATC |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Rapid Traverse Rates | 400 IPM |
| Machine Dimensions LxWxH | 96" x 72" x 103" |
| Machine Weight | 3,850 lbs |
