2003 Mazak Nexus QTN 200
No longer available
2003 Mazak Nexus QTN 200
Location:Illinois
Description

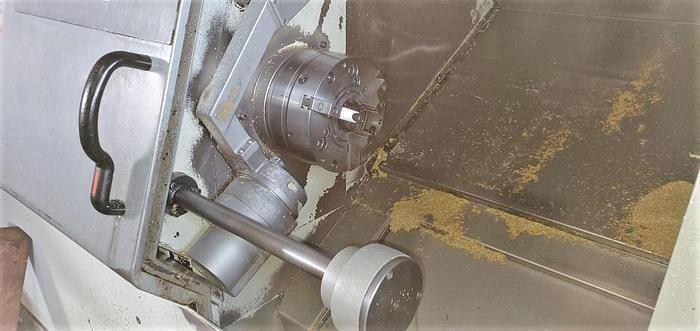

8" 3 Jaw Hydraulic Chuck
LNS Gatlin Style Barfeed -12' Length

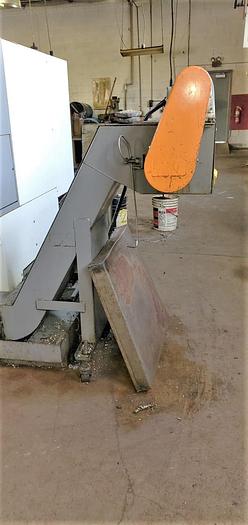

Chip Conveyor - not working
Parts Catcher
Automatic Tool Eye
Programmable Tailstock
IC Memory Card Interface
PCM CIA Interface (2 slots)
3.5" Floppy Disk Interface
RS232 Port Interface
Hydraulic Pressure Interlock
Chuck Open/Close Confirmation
Door Interlock
Tool Path Solid Model Multi-Tap Transformer Coolant Tank with Pump All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 200 |
| Year | 2003 |
| Condition | Used |
| Stock Number | 117696 |

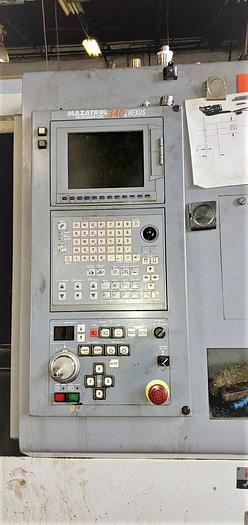

| Control | Mazatrol Fusion 640T Nexus |
| Chuck Size | 8" 3-Jaw Hydraulic |
| Maximum Swing | 24" |
| Maximum Cutting Diameter | 14" |
| Maximum Machining Length | 20.1" |
| X-Axis Travel | 7.5" |
| Z-Axis Travel | 21.125" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.0" / 2.00" |
| Spindle Speeds | 5,000 RPM |
| Spindle Motor | 35 HP |

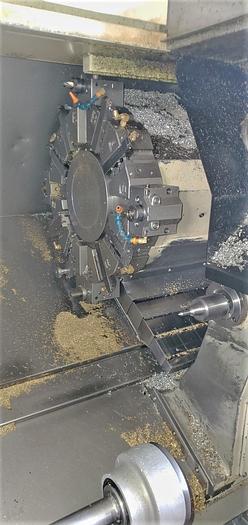

| Number of Turret Positions | 12 Position Drum |
| Rapid Traverse Rates X/Z | 1181 / 1299 IPM |
| Tailstock Body Travel / Center | 21.75" / MT#5 |
| Machine Dimensions LxWxH | 99.6" x 70.1" x 72.4" |
| Machine Weight | 10,803 lbs. |
