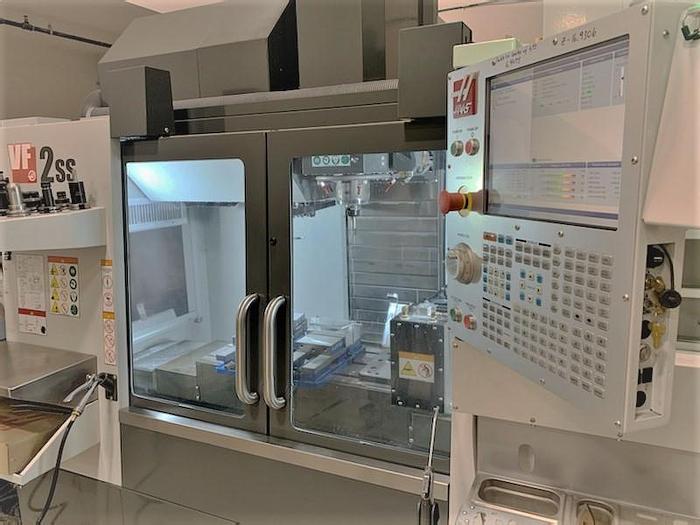

2020 Haas VF2SS
2020 Haas VF2SS
$89,950 (USD)
Location:Texas
Description

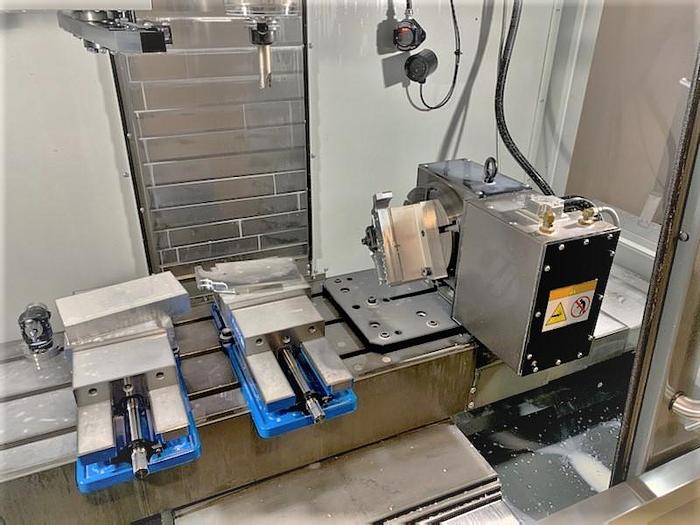

Haas HRT-210 4th Axis Rotary Table
Wired for 4th Axis
300 PSI Coolant Through the Spindle
Haas WIPS Wireless Intuitive Probing System Tool & Part Probe
30+1 Position Side Mounted Tool Changer
Auger Style Chip Conveyor

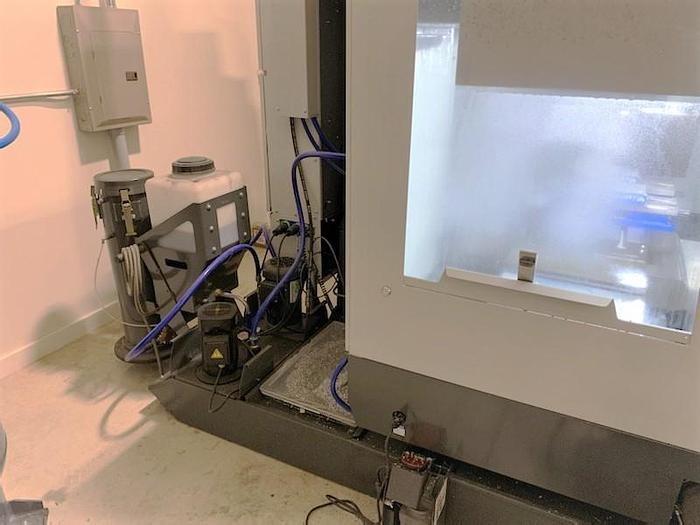

Auxiliary Coolant System
High Pressure Flood Coolant
Programmable Coolant Nozzle
High Speed Machining
Dynamic Work Offsets and Tool Center Point Control
Wifi Camera: Fully Enclosed
Coolant Maitenance Package: Coolant Mist Condenser, Coolant Tank Skimmer & Auto Coolant Refill System
15" Color LCD Monitor
1 GB Program Memory
Rigid Tapping
Haas Drop
Haas Connect
M130
Media Display M-Code
Window Air Blast
Safe Run
Wifi Connection for Control
Ethernet Interface
RS 232C Port Interface for DNC Operation
All Available Manuals
Price New as equipped at over $118,000
Specifications
| Manufacturer | Haas |
| Model | VF2SS |
| Year | 2020 |
| Condition | Used |
| Stock Number | 117693 |
| Table size | 36"x14" |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 16" |
| Z axis travel | 20" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 30 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 88" x 93" x 106"H |
| Machine weight (approximately) | 9,000 lbs. |
