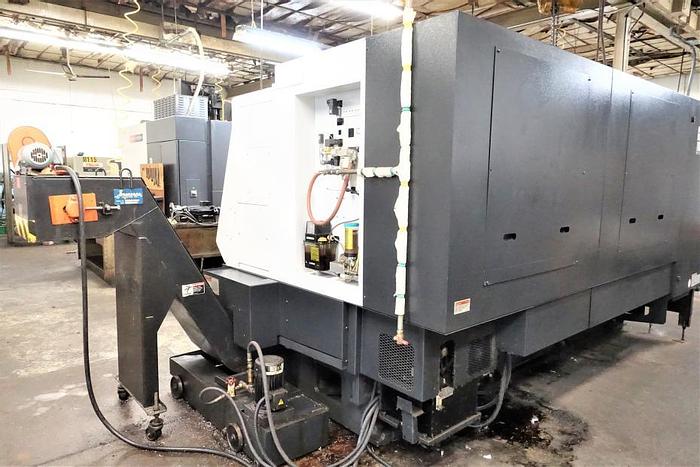

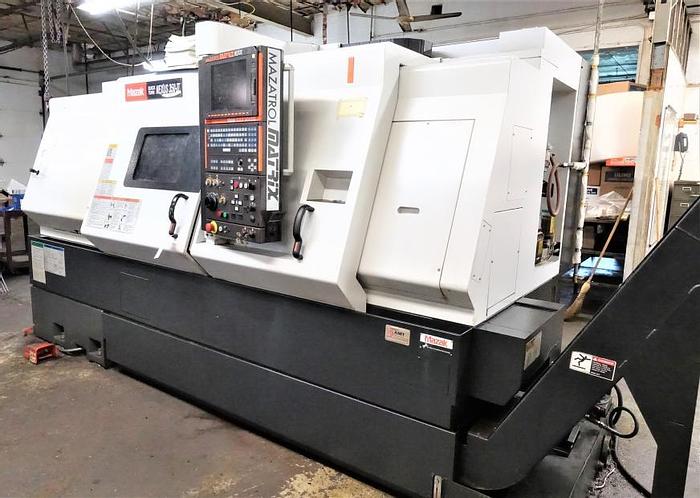

2009 Mazak Nexus QTN 350-II/1200
No longer available
2009 Mazak Nexus QTN 350-II/1200
$89,500 (USD)
Location:Illinois
Description

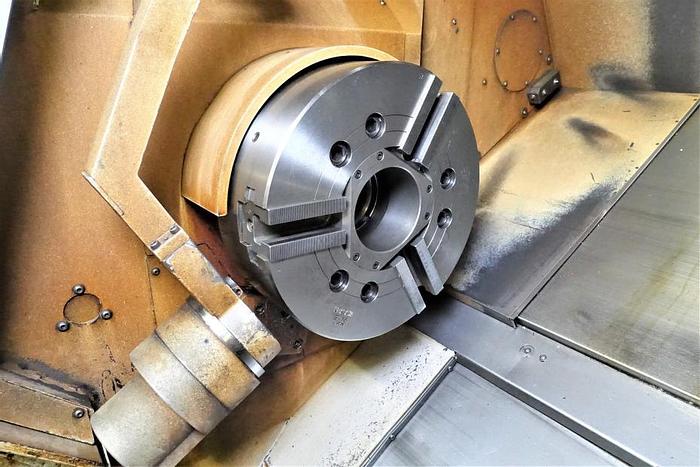

12" 3 Jaw Hydraulic Chuck

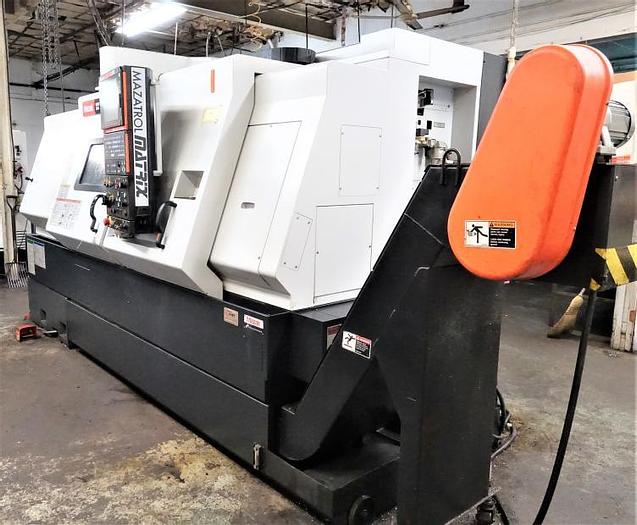

Chip Conveyor
Automatic Tool Eye
Programmable Tailstock
IC Memory Card Interface
PCM CIA Interface (2 slots)
RS232 Port Interface
Hydraulic Pressure Interlock
Chuck Open/Close Confirmation
Door Interlock
Multi-Tap Transformer Coolant Tank with Pump
Wired as 208V Electrics All Available Manuals
All Available Tooling

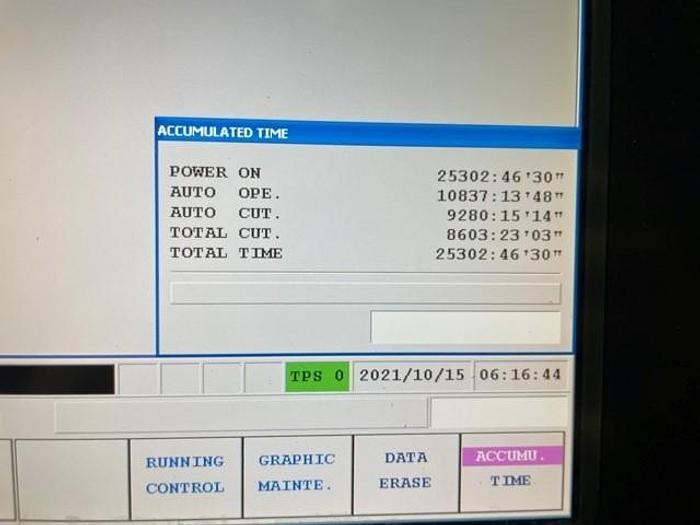

8,603 Total Cut Hours
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 350-II/1200 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 117680 |

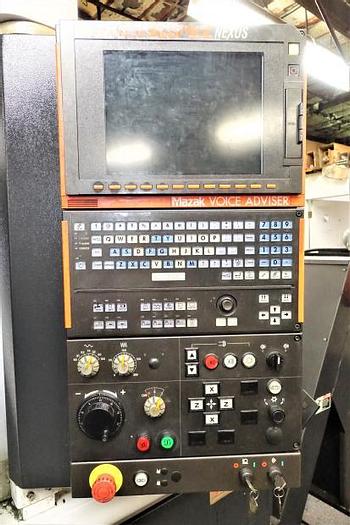

| Control | Mazatrol Matrix Nexus |
| Chuck Size | 12" 3-Jaw Hydraulic |
| Maximum Swing | 26.77" |
| Maximum Cutting Diameter | 16.53" |
| Maximum Machining Length | 48" |
| X-Axis Travel | 8.85" |
| Z-Axis Travel | 48.38" |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 4.4" / 4" |
| Spindle Speeds | 3,300 RPM |
| Spindle Motor | 40 HP |
| Spindle Torque | 533 ft./lbs. |

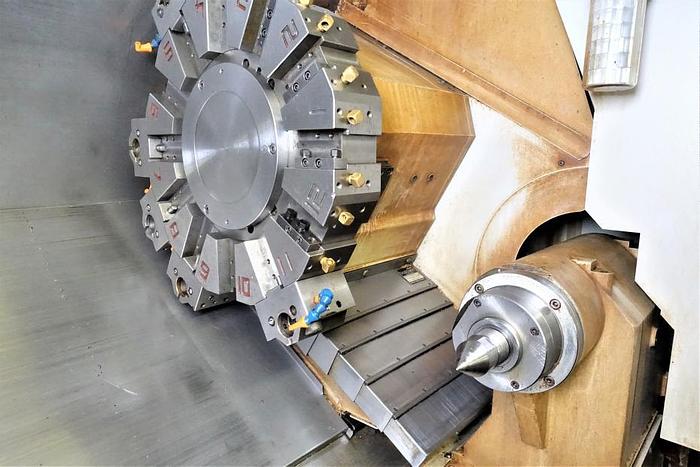

| Number of Turret Positions | 12 Position Drum |
| Turret Index Time | .2 Seconds |
| Rapid Traverse Rates X/Z | 1181 IPM / 984 IPM |
| Tailstock Center | MT #5 |
| Machine Dimensions LxWxH | 120" x 80.7" x 79" |
| Machine Weight | 18,778 lbs. |
