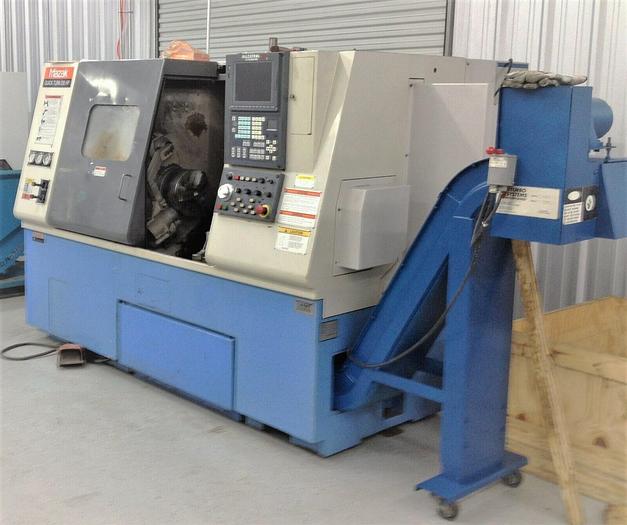

2001 Mazak QT250HP
No longer available
2001 Mazak QT250HP
$26,500 (USD)
Texas
Description
10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Automatic Tool Eye
Programmable Tailstock
IC Memory Card Interface
PCM CIA Interface (2 slots)
3.5" Floppy Disk Interface
RS232 Port Interface

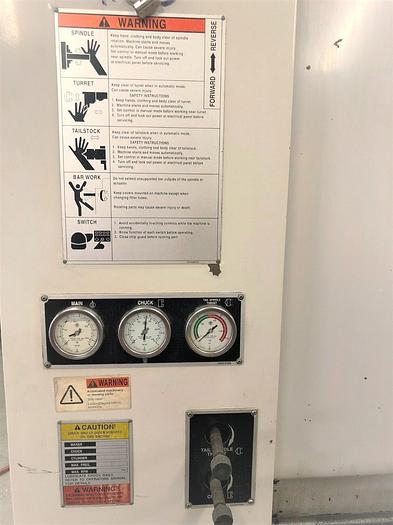

Hydraulic Pressure Interlock
Chuck Open/Close Confirmation
Door Interlock
Tool Path Solid Model Multi-Tap Transformer Coolant Tank with Pump All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | QT250HP |
| Year | 2001 |
| Condition | Used |
| Stock Number | 117670 |

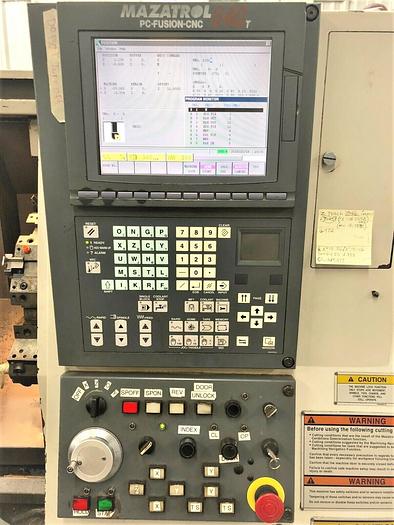

| Control | Mazatrol Fusion 640T |

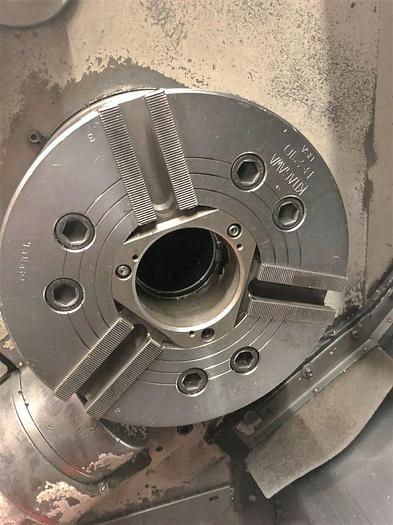

| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 23.6" |
| Maximum Cutting Diameter | 15.7" |
| Maximum Machining Length | 19.7" |
| X-Axis Travel | 8.46" |
| Z-Axis Travel | 20.1" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.15" / 2.75" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Spindle Torque | 228.56 ft./lbs |

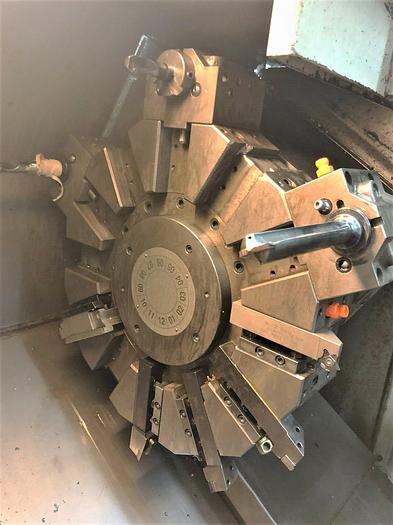

| Number of Turret Positions | 12 Position Drum |
| Rapid Traverse Rates X/Z | 1200 / 1300 IPM |
| Tailstock Body Travel / Center | 18.1" / MT#4 |
| Machine Dimensions LxWxH | 107" x 69" x 67" |
| Machine Weight | 10,340 lbs. |
