2004 Haas VF2SS
No longer available

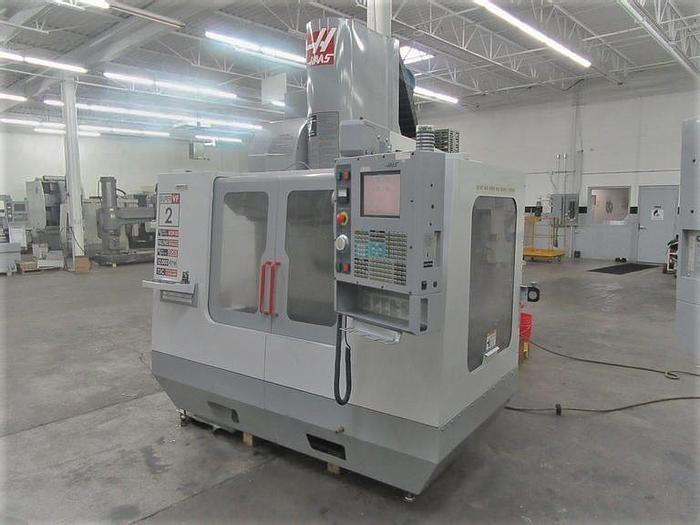

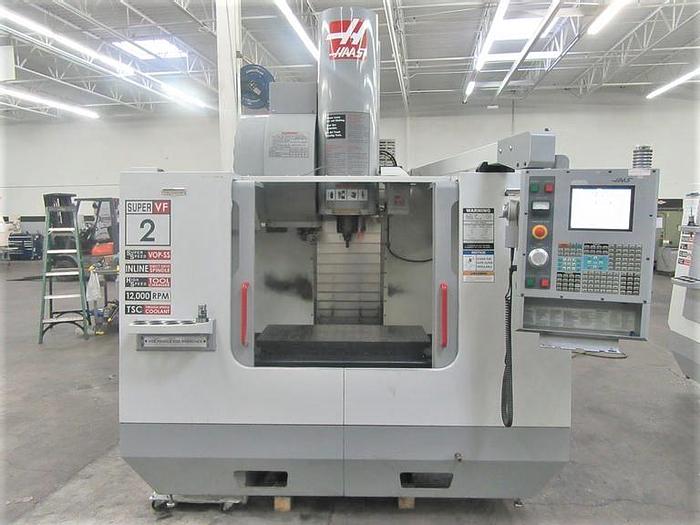

2004 Haas VF2SS
Location:Minnesota
Description

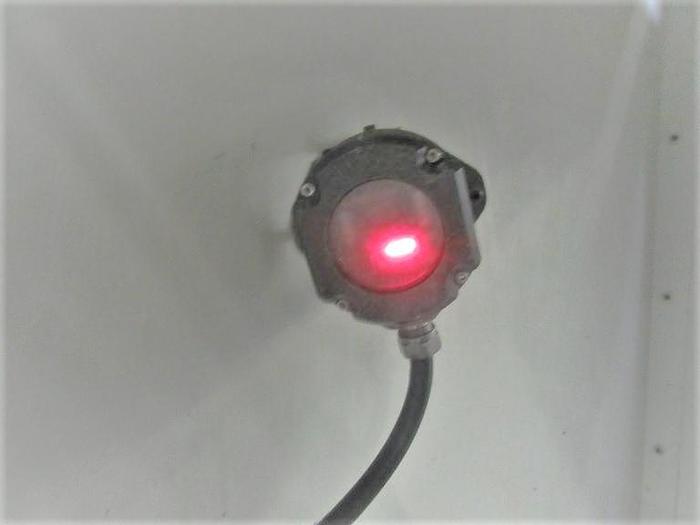

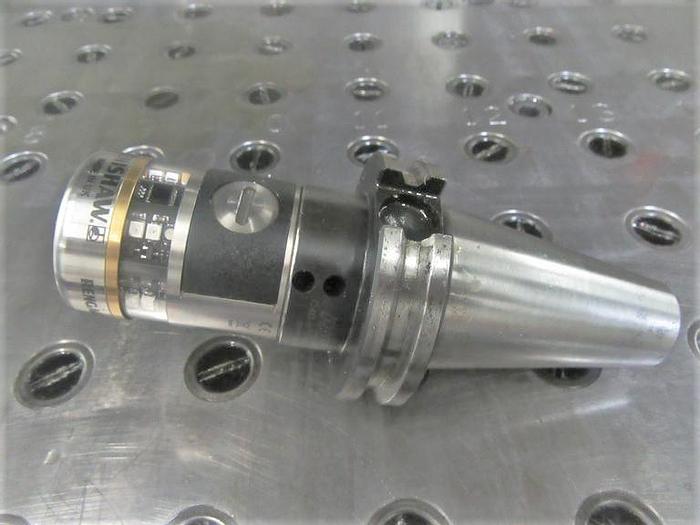

Haas Probing with Parts Probe, which needs stylus (no tool probe)
Coolant Through the Spindle
4th Axis Drive - Brushless
24+1 Position Side Mounted Tool Changer
Auger Style Chip Conveyor

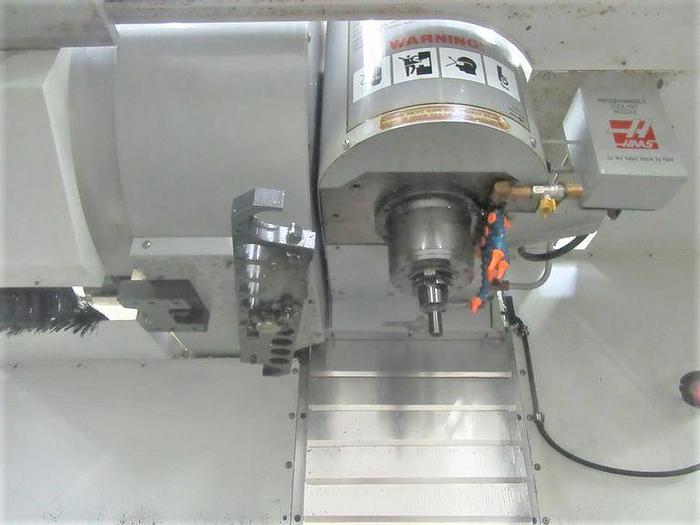

Programmable Coolant Nozzle
Remote Jog Handle
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
16 MB Program Storage
RS 232C Port Interface for DNC Operation

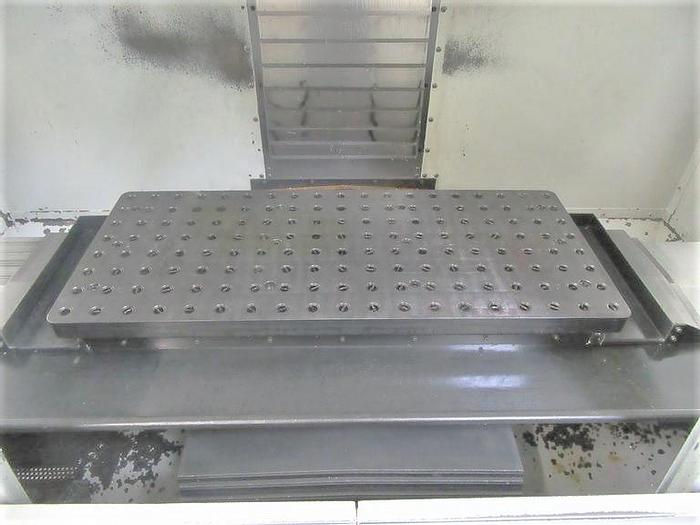

38" x 16" Fixture Plate
Wired 208-230V Electrics
All Available Manuals
Machine manufactured new in January of 2004

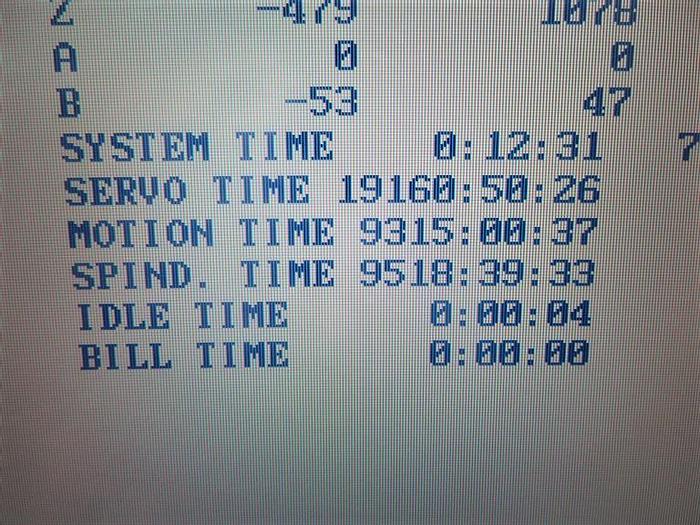

Servo On Hours 19,160
Motion Hours 9,315
Spindle Hours 9,518
Specifications
| Manufacturer | Haas |
| Model | VF2SS |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117660 |
| Table size | 36" x 14" |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 16" |
| Z axis travel | 20" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 112" x 94" x 102"H |
| Machine weight (approximately) | 9,000 lbs. |
