2003 Mazak QT40/1000
No longer available
2003 Mazak QT40/1000
Location:Ohio
Description

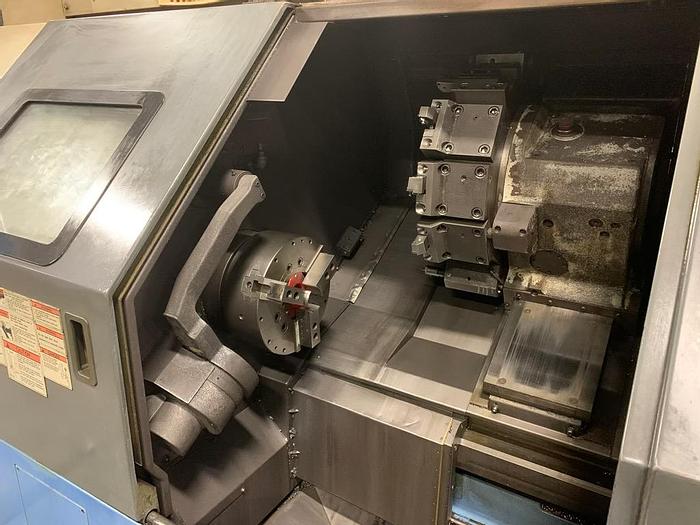

12" Hydraulic 3-Jaw Chuck Automatic Tool Eye Complete Coolant System Multi-Tap Transformer Programmable Tailstock RS 232 Port Interface

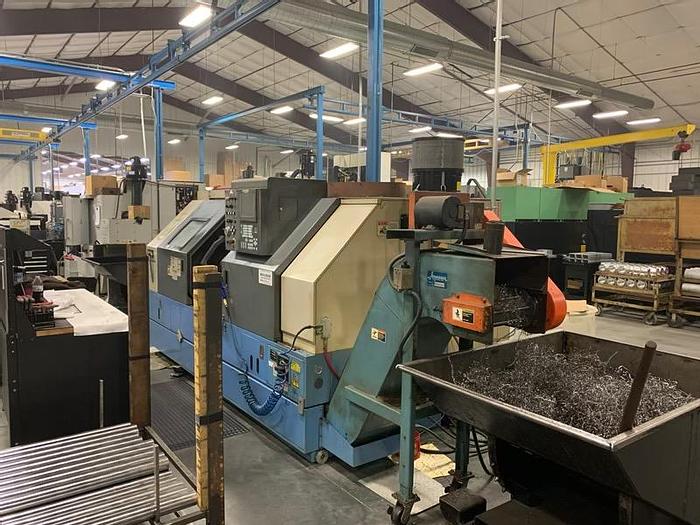

Jorgensen Chip Conveyor All Available Tooling All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | QT40/1000 |
| Year | 2003 |
| Condition | Used |
| Stock Number | 117650 |
| Quantity | 1 |

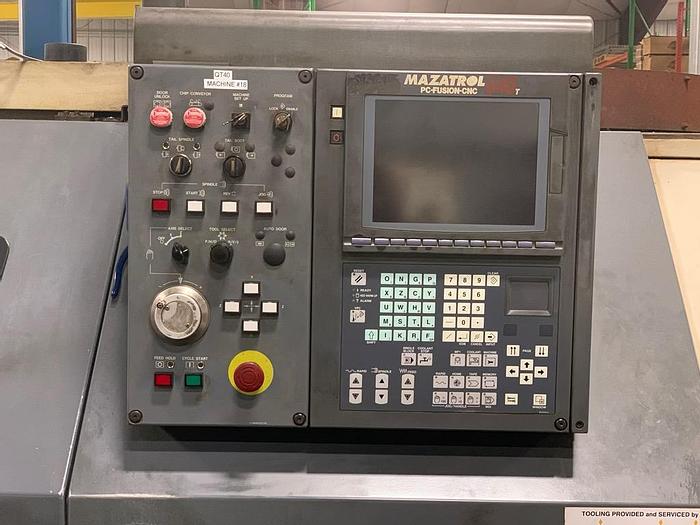

| Control | Mazatrol Fusion 640T |
| Chuck Size | 12" Hydraulic Chuck |
| Maximum Swing | 24" |
| Maximum Cutting Diameter | 14.75" |
| Maximum Machining Length | 40.4" |
| Maximum Bar Capacity | 2.75" |
| X-Axis Travel | 11" |
| Z-Axis Travel | 41.3" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.15" / 2.75" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 40 HP |
| Transmission | 3 Ranges - 1,063 ft/lbs Torque |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 472 IPM / 709 IPM |

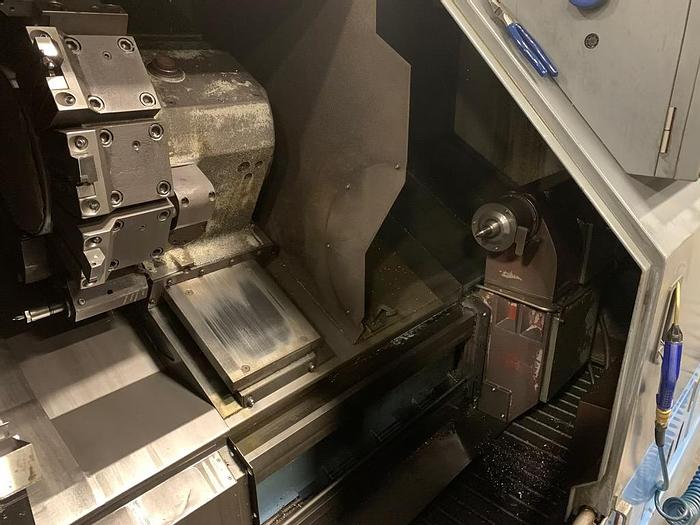

| Tailstock Quill Diameter / Center | 3.94" / MT #5 |
| Machine Dimensions | 132"x84"x80" |
| Machine Weight | 14,500 lbs. |
