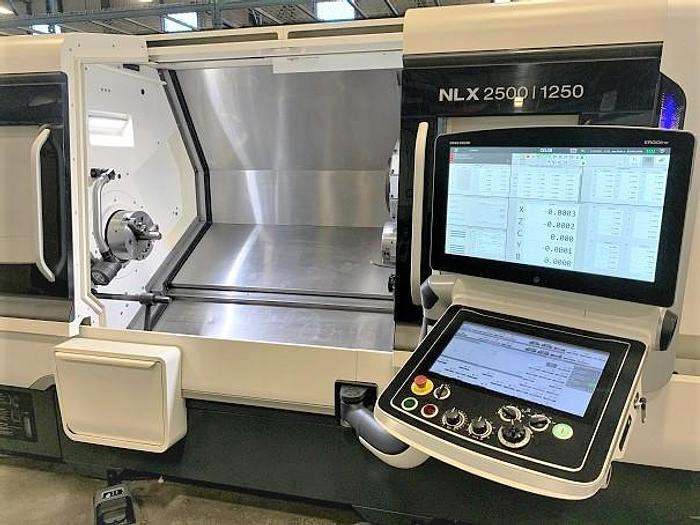

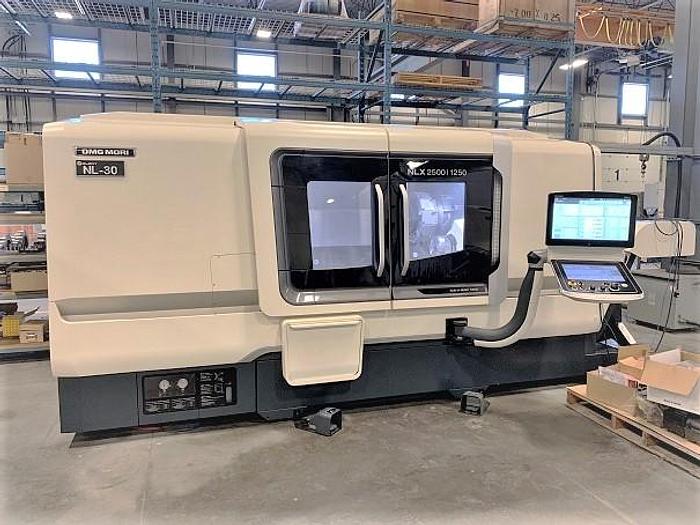

2018 DMG-Mori NLX2500SY/1250
2018 DMG-Mori NLX2500SY/1250
Canada
Description
Subspindle Full C Axis Spindle Rotation Live Milling/Drilling Capability

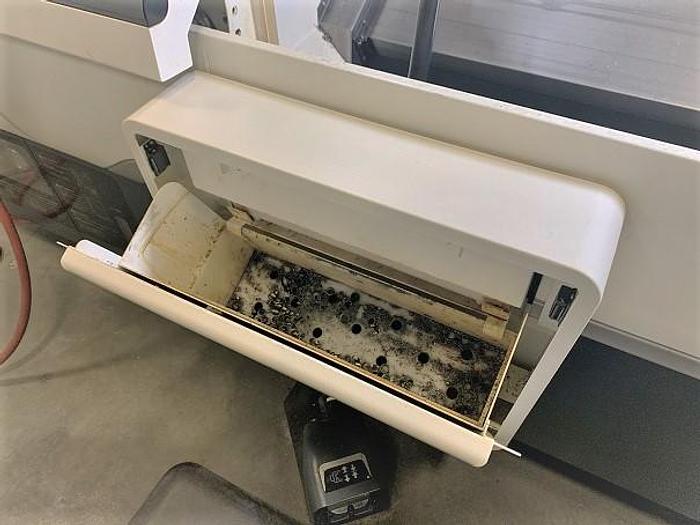

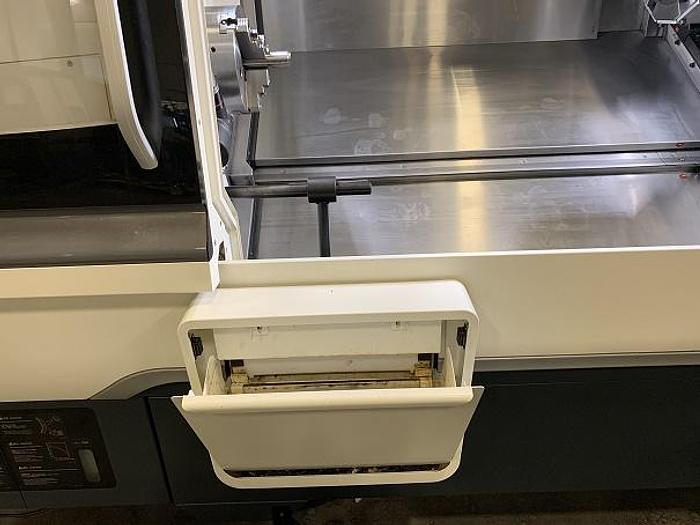

Y Axis Capability Chip Conveyor Parts Catcher

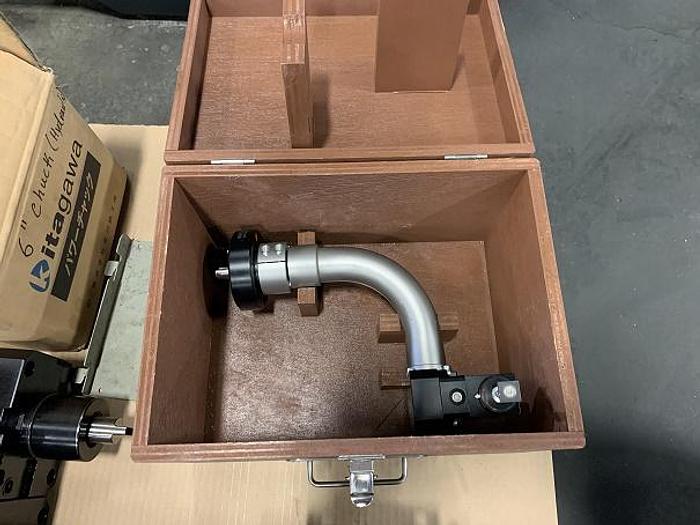

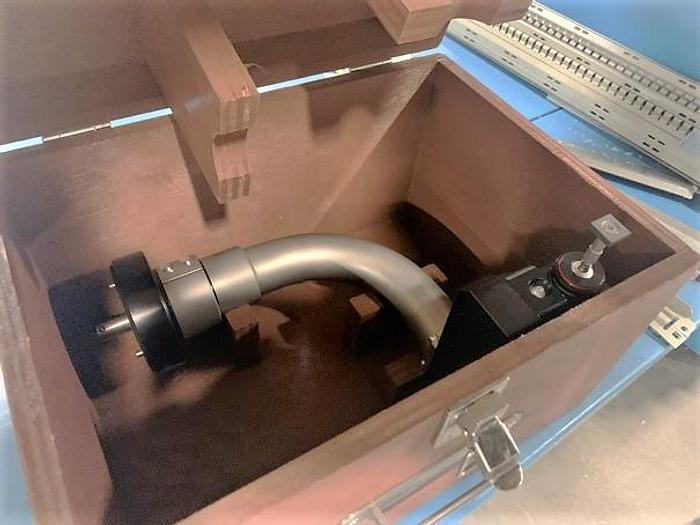

Tool Presetter Both Spindles
High Pressure Coolant - 217 PSI

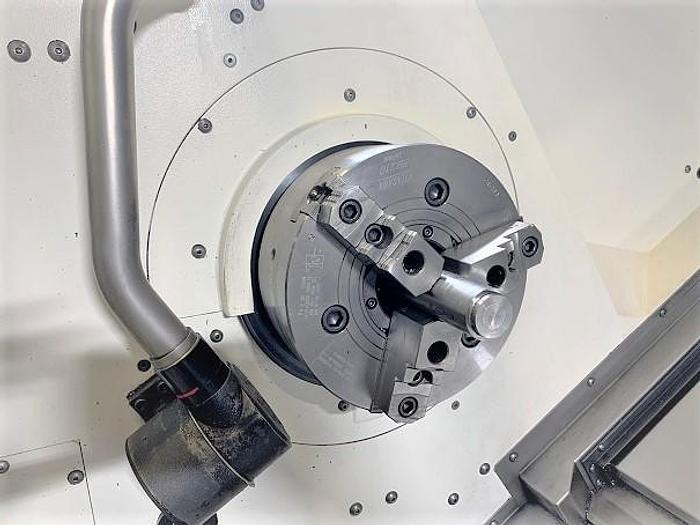

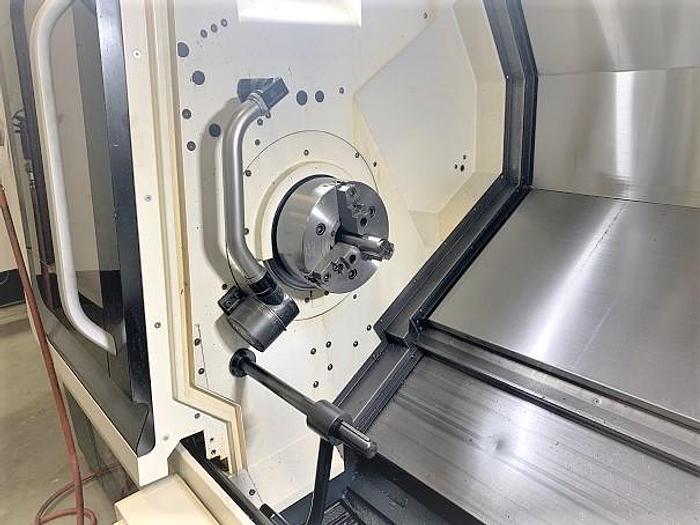

10" Kitagawa B210 3 Jaw Hydraulic Chuck for Main Spindle

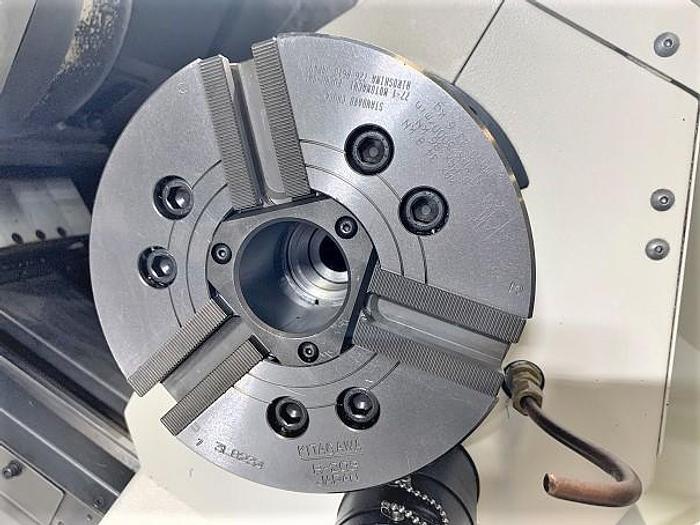

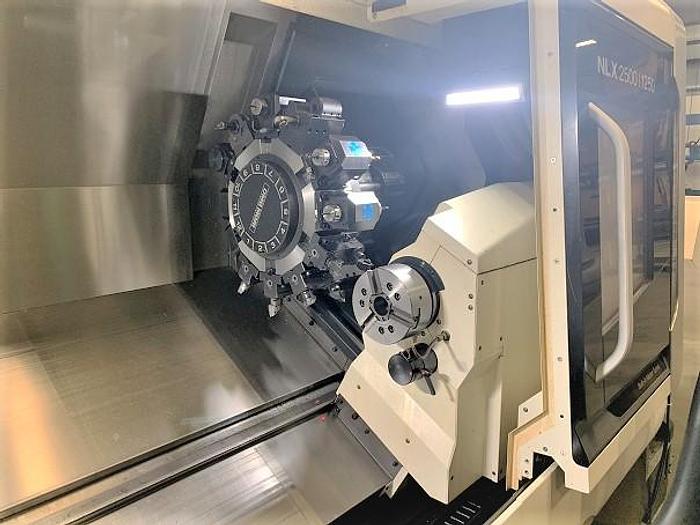

8" Kitagawa B208 3 Jaw Hydraulic Chuck for Subspindle
Polygon Machining
Circular Threading
Re-Threading
Open Pock Machining
Thread Cutting Override
Text Engraving
Tool Retract and Recover
Macro Common Variables
Additional Workpiece Coordinate System
Smart Key

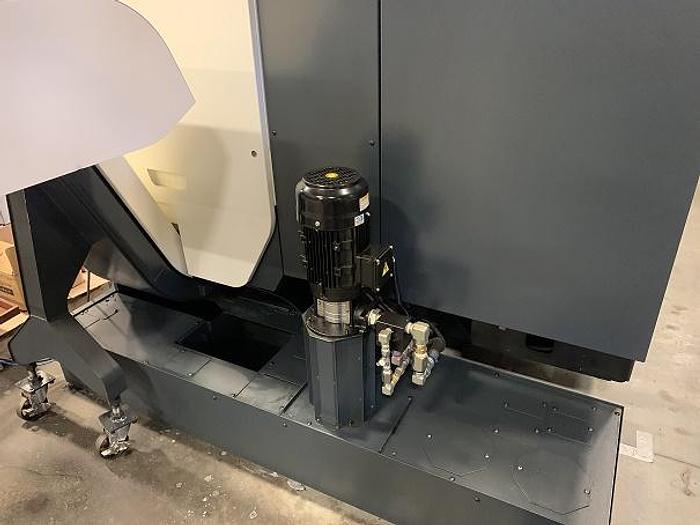

USB Port Interface RS 232 Port Interface Coolant System with Tank & Pump
All Available Manuals
Wired 200V Electrics
Tooling includes:
(1) Radial OD type Live holder
(1) Axial Face type Live holder
(30) Pieces of AR32 Type Collets of varying size.

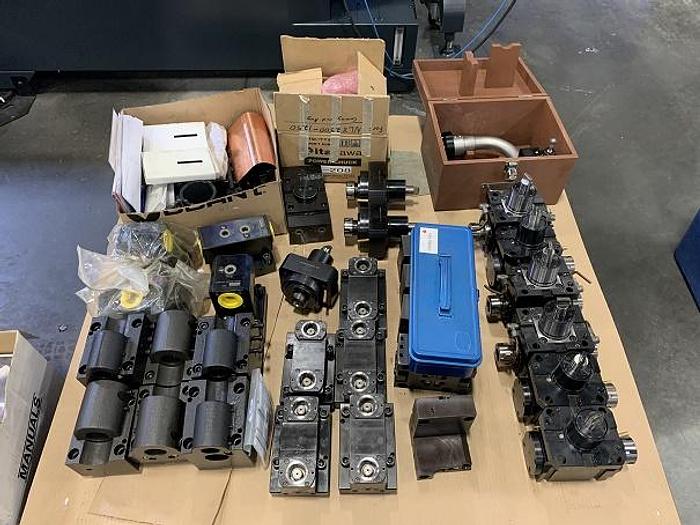

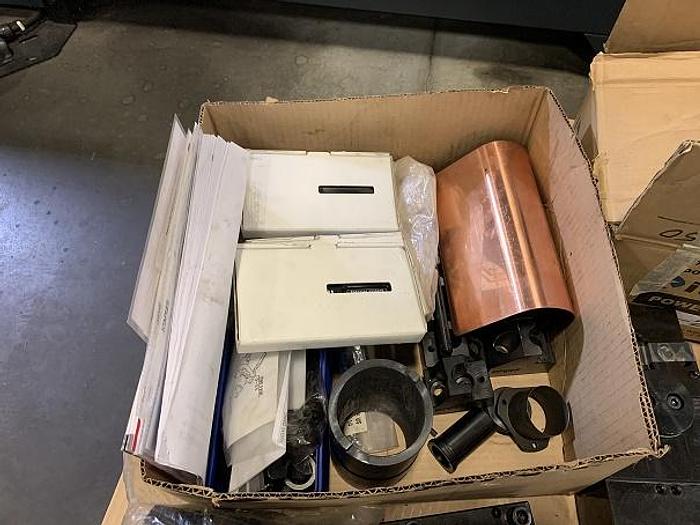

**At An Additional Cost Of $15,000 The Balance Of Tooling Seen On The Table Will Be Included**
Specifications
Manufacturer | DMG-Mori |
Model | NLX2500SY/1250 |
Year | 2018 |
Condition | Used |
Stock Number | 117649 |

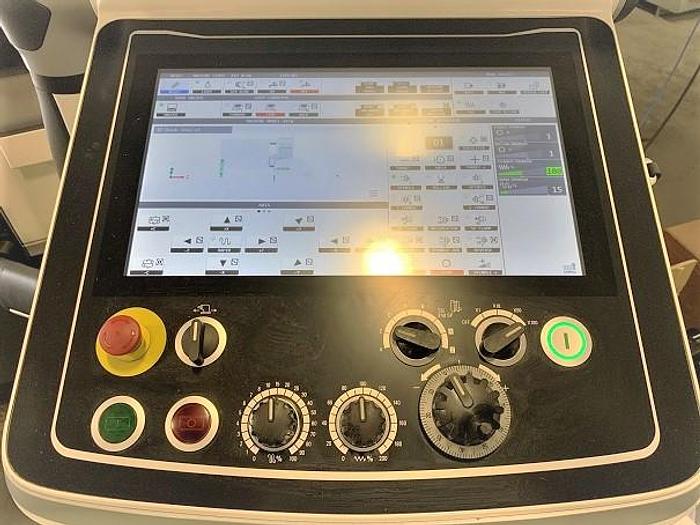

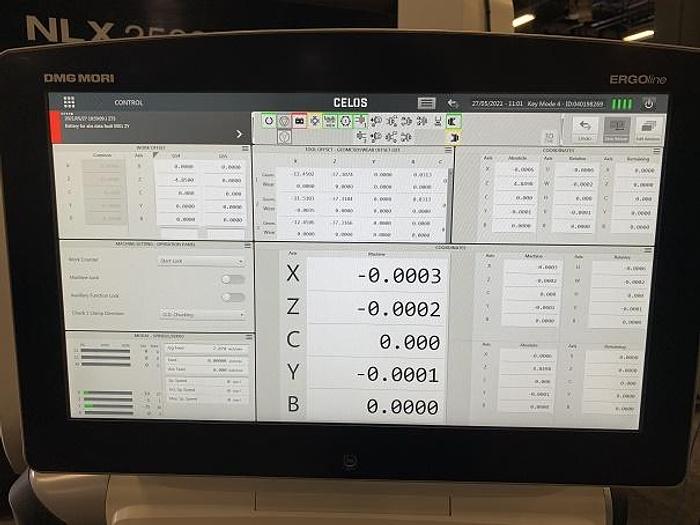

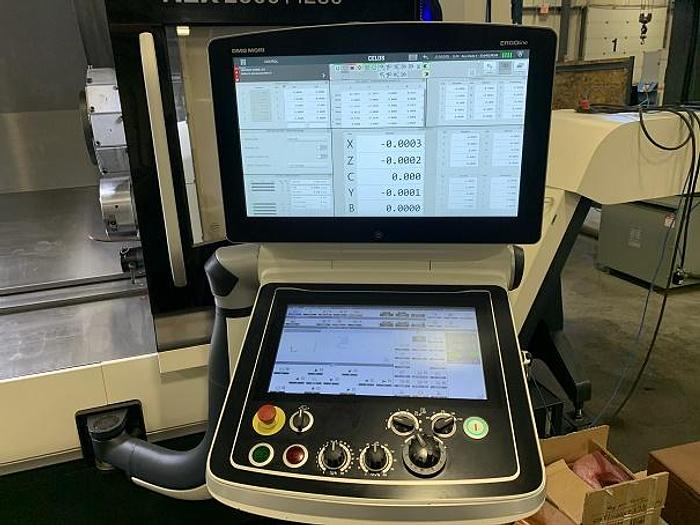

Machine Control | Celos M730UM |
Chuck Sizes Main / Subspindle | 10" Hydr. / 8" Hydr. 3-Jaw |
Maximum Turning Diameter | 14.4" |
Maximum Swing Over Cross Slide | 27.1" |
Maximum Cutting Length | 49.41" |
X-Axis Travel | 10.2" |
Y-Axis Travel | +/- 1.9" |
Z-Axis Travel | 31.2 |
B-Axis Travel (Subspindle) | n/a |
C-Axis Rotation | .001 Degrees |
Main & Subspindle Speeds | 4,000 rpm / 6,000 rpm |
Spindle Nose / Bore / Bar Capacity | A2-8" / 3.58" / 3.19" |
Subspindle Nose / Bore / Bar Capacity | A2-5" / 2.8" / 2.5" |
Rotary Tool Speed / Rotary Motor | 10,000 rpm / 7 HP |
Spindle Motor / Sub Spindle Motor | 35 HP / 15 HP |

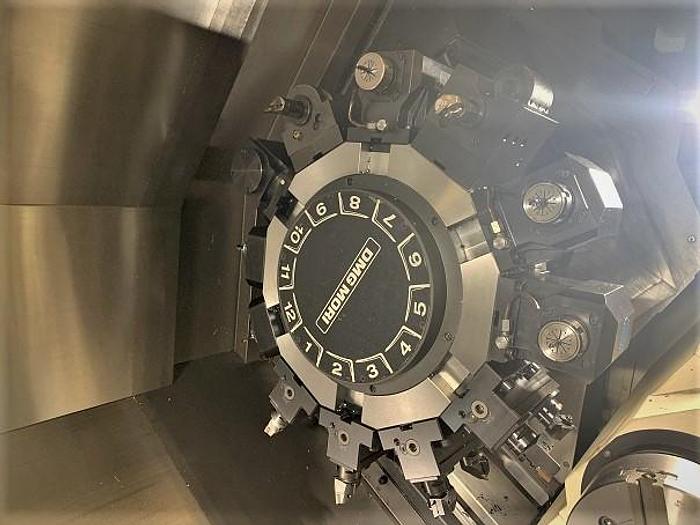

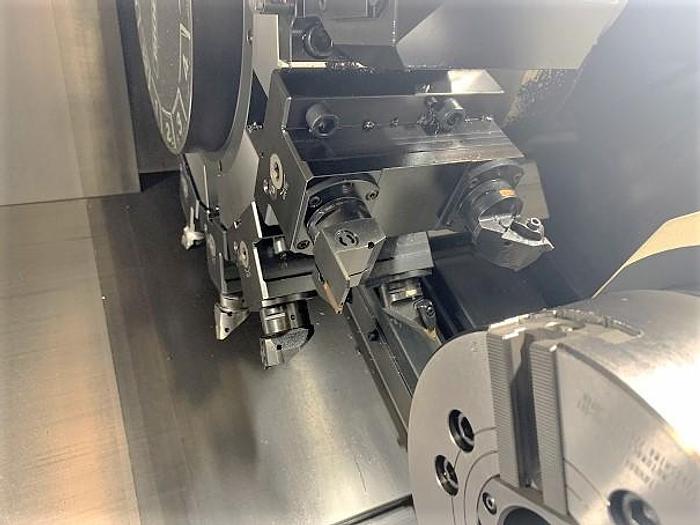

Number of Turret Positions | 12 Position Turret |
Rapid Traverse Rates | 1181 IPM |
Machine Dimensions LxWxH | 186"x93"x86.6" |
Machine Weight | 17,072 lbs |
