2004 Fanuc Robodrill T-21iD
No longer available
2004 Fanuc Robodrill T-21iD
$24,950 (USD)
Location:Illinois
Description
Kawata Tec Nobel SP-3950B 2-Pallet Changer
Coolant Thru the Spindle
Rigid Tapping
Big-Plus Tooling
RS 232 Port Interface
Complete Coolant System with Tank & Pump
All Available Manuals
Specifications
| Manufacturer | Fanuc |
| Model | Robodrill T-21iD |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117550 |

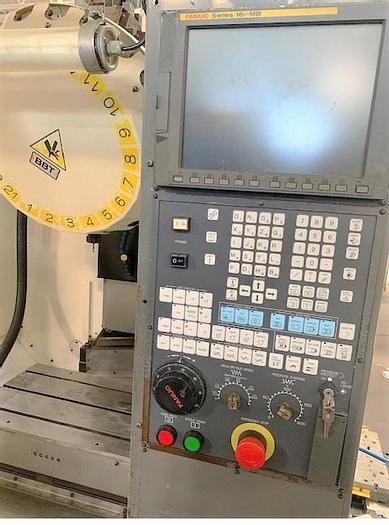

| Machine Control | Fanuc 16i-MB |
| Table Size | 25.6" x 15.74" |
| Maximum Table Load | 440 lbs |
| X-axis travel | 19.68" |
| Y-Axis Travel | 15.75" |
| Z-Axis Travel | 12.99" |
| Spindle Speed | 20,000 rpm |
| Spindle Taper | BT 30 |
| Spindle Motor | 7.5 hp |

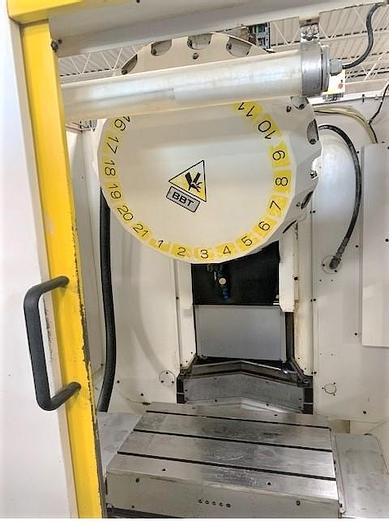

| Tool Magazine Capacity | 21 Position ATC |
| Maximum Tool Diameter / Length / Weight | 3.1" / 9.84" / 6.6 lbs |
| Rapid Traverse Rates | 2,125 ipm |
| Cutting Feedrates | 1,181 ipm |
| Machine Dimensions LxWxH | 79"x62"x88" |
| Machine Weight | 4,650 lbs |
