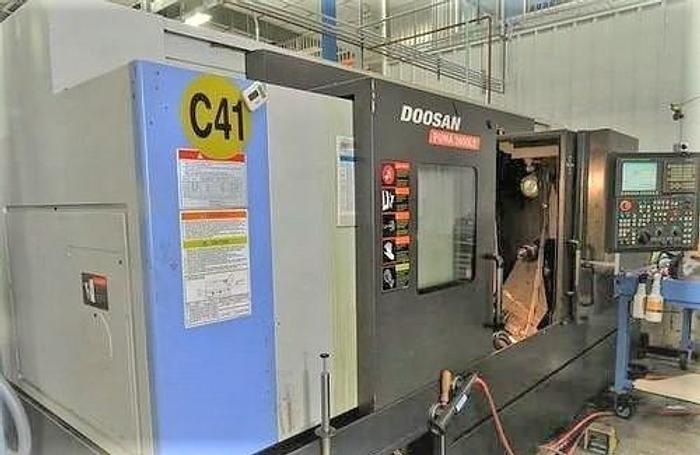

2012 Doosan Puma 2600LY
No longer available
2012 Doosan Puma 2600LY
Oklahoma City, OK
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability Y Axis Capability 12" 3 Jaw Hydraulic Chuck
Tool Presetter
Chip Conveyor

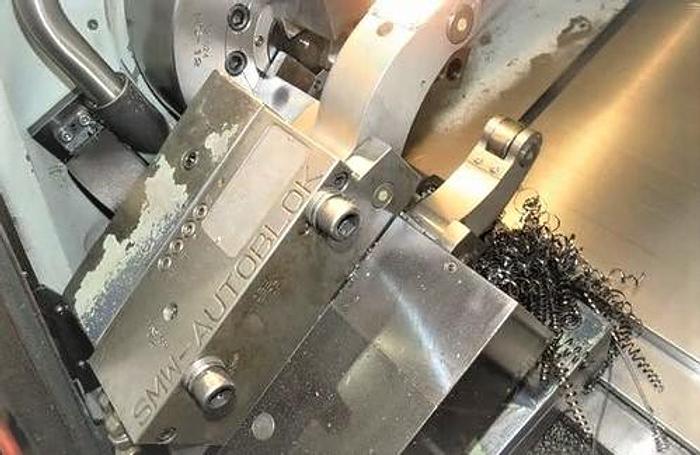

SMW Hydraulic Steady Rest Long Bed Design Option
24 Station Turret
Tailstock with Drag Type Body and Hydraulic Quill PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways All Available Static Tooling
Specifications
| Manufacturer | Doosan |
| Model | Puma 2600LY |
| Year | 2012 |
| Condition | Used |
| Stock Number | 117646 |

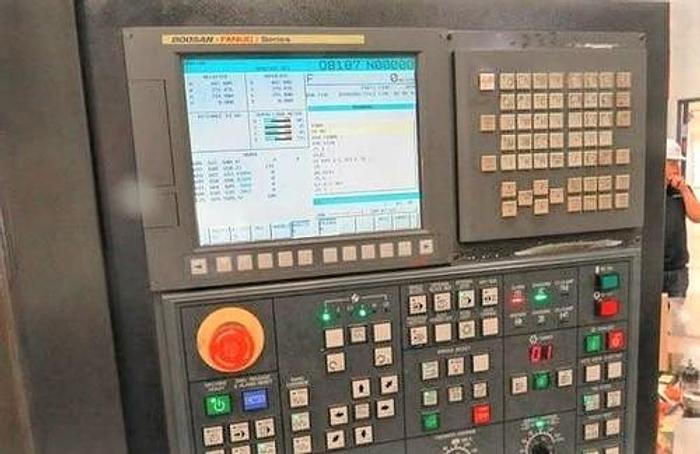

| Control | Fanuc i Series |

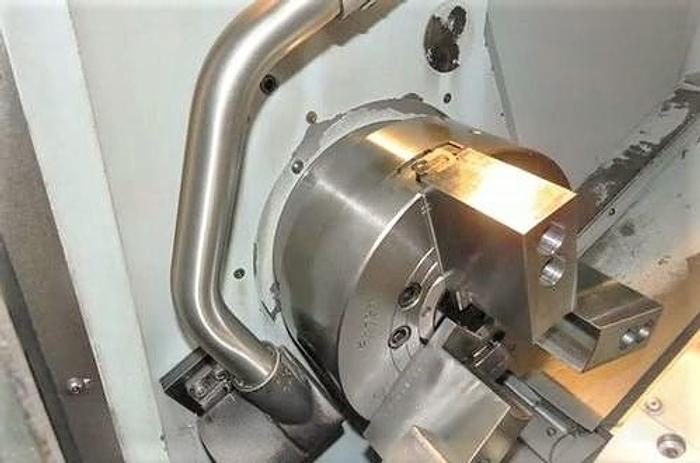

| Chuck Size | 12" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 30.7" |
| Maximum Cutting Diameter | 14.8" |
| Maximum Machining Length | 50.4" |
| Maximum Bar Capacity | 3.2" |
| X-Axis Travel | 10.2" |
| Y-Axis Travel | 4.13" |
| Z-Axis Travel | 53.1" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-8" / 3.54" |
| Spindle Speeds - Main | 2,800 RPM |
| Spindle Motor - Main | 30 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 7.5 HP |

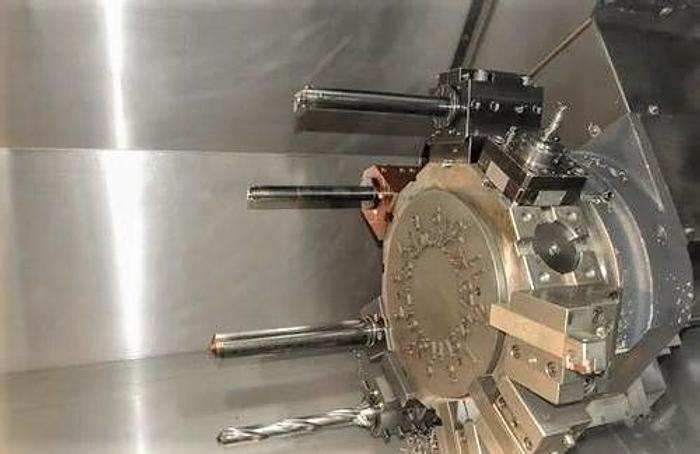

| Number of Turret Positions | 24 Station Turret |
| Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |

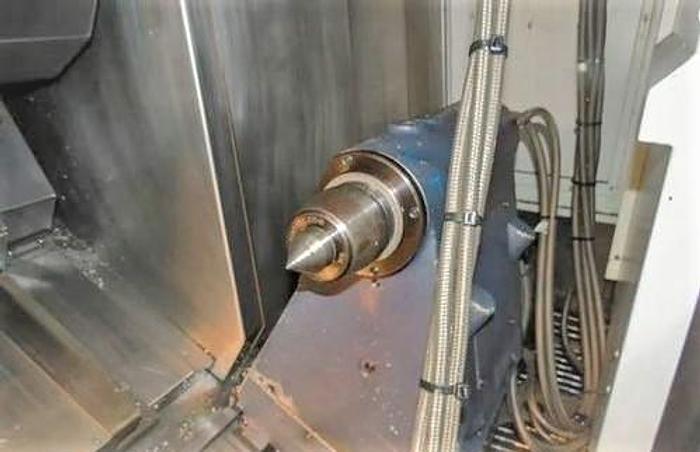

| Tailstock Quill Diameter / Quill Travel / Taper | 3.1" / 4.7" / MT #4 |
| Machine Dimensions | 172" x 85" x 86" |
| Machine Weight | 16,100 lbs. |
