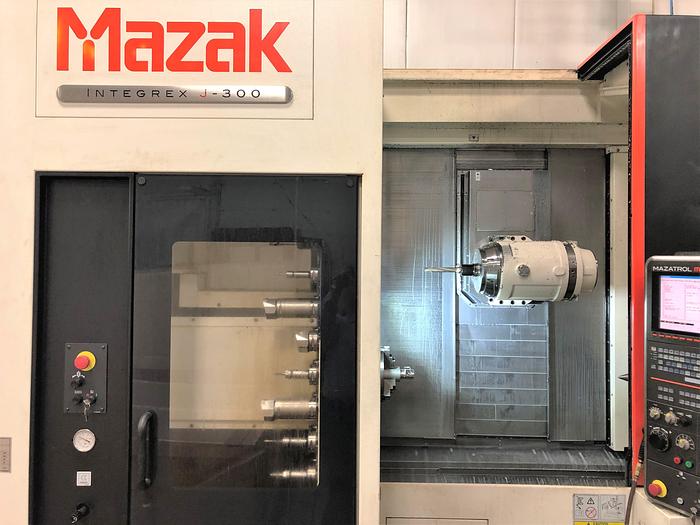

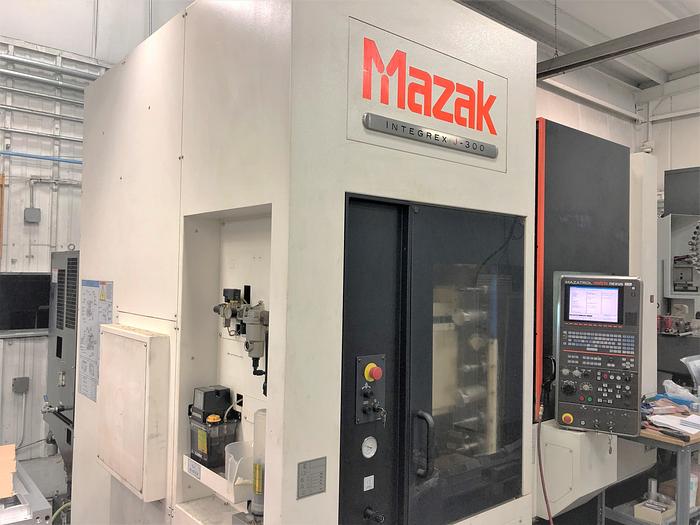

2012 Mazak Integrex J-300
2012 Mazak Integrex J-300
$154,500 (USD)
Massachusetts
Description
10" 3 Jaw Hydraulic Chuck
3.0" Bar Capacity Package
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
12,000 RPM Milling Spindle
B Axis Pendulum Head
Y Axis for Off Center Machining
40 Station Capto Tool Changer
Chip Conveyor
Programmable Tailstock
Coolant Through the Mill Head
213 PSI High Pressure Coolant

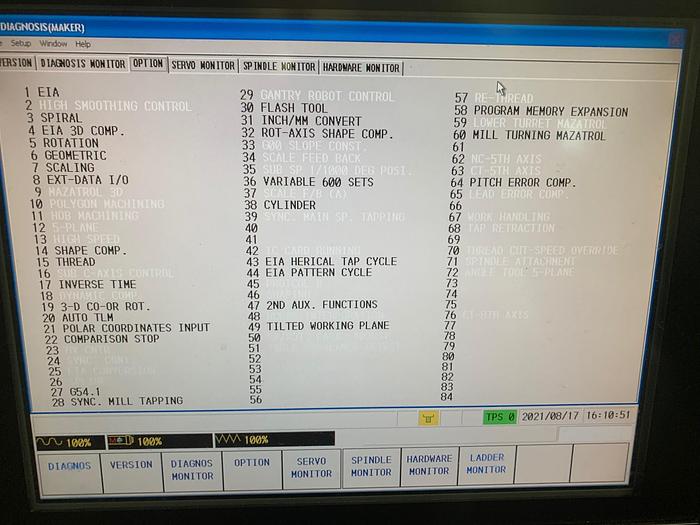

EIA Input Function
Spiral
EIA 3D Compensation
Flash Tool Software
Absolute Positioning System
Rotation
Geometric
Scaling
Ext-Data I/O
Shape Comp
Thread
Inverse Time
3-D Co-Or Rotation
Auto Tool Length Measurement
Polar Coordinates Input
Comparison Stop
G54.1
Synchronous Tapping
Flash Tool
Inch/MM Conversion
Rotation Axis Shape Comp
Variable 600 Sets
Cylindrical Interpolation
EIA Helical Tap Cycle
EIA Pattern Cycle
2nd Auxiliary Functions
Tilted Working Plane
Program Memory Expansion
Mill Turning Mazatrol Control Function
Pitch Error Comp
Manufactured New in June 2012
Total Cut Hours 11,800
Specifications
Manufacturer | Mazak |
Model | Integrex J-300 |
Year | 2012 |
Condition | Used |
Stock Number | 117645 |

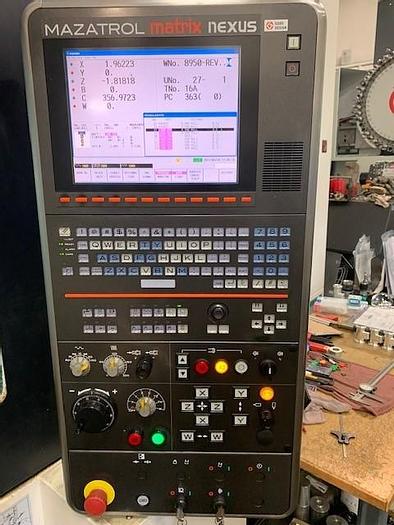

Machine Control | Mazatrol Matrix Nexus |
Chuck Size | 10" 3-Jaw Hydraulic |
Maximum Swing | 26.77" |
Maximum Machining Diameter | 19.69" |
Maximum Machining Length | 24.76" |
X-Axis Travel | 24.21" |
Y-Axis Travel | +/- 4.92" |
Z-Axis Travel | 27.36" |
B-Axis Tilt Movement | 220 Degrees |
C Axis Spindle Rotation | 0.0001 Degree |
Spindle Nose / Bore / Bar Capacity | A2-8" / 3.54" / 3.15" |
Spindle Speed | 35 - 4,000 RPM |
Spindle Motor | 25 HP |
Milling Spindle Speed | 35 - 12,000 rpm |
Milling Spindle Motor | 30 HP |
Tool Magazine Capacity | 40 Position Tool Changer - CAPTO |
Maximum Tool Diameter / Length / Weight | 4.92" / 15.75" / 22 lbs. |
Rapid Traverse Rates | NA |
Tailstock Body Travel / Taper | 40.39" / MT #5 |
Machine Dimensions LxWxH | NA |
Machine Weight | NA |
