2011 Mazak Integrex 100-IV
No longer available
2011 Mazak Integrex 100-IV
$119,500 (USD)
Massachusetts
Description

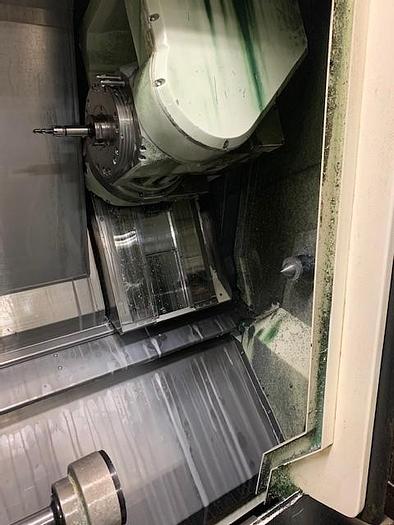

B Axis Pendulum Head 225 Degrees Movement
Full C-Axis
Live Milling / Drilling Capability
Y Axis Capability for Off Center Work
Chip Conveyor
Automatic Parts Catcher
Programmable Tailstock

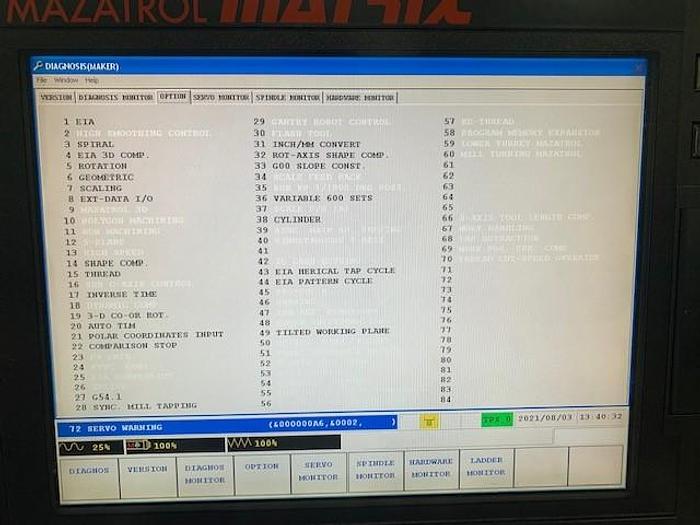

EIA
Spiral
EIA 3D Compensation
Rotation
Geometric
Scaling
Ext-Data I/O
Shape Compensation
Thread
Inverse Time
3-D Co-Or Rotation
Auto Tool Length Measurement
Polar Coordinates Input
Comparison Stop
G54.1
Synchronous Mill Tapping
Rotation Axis Shape Compensation
GOO Slope Compensation
Variable 600 Sets
Cylinder
EIA Herical Tap Cycle
EIA Pattern Cycle
Tilted Working Plane
All Available Manuals

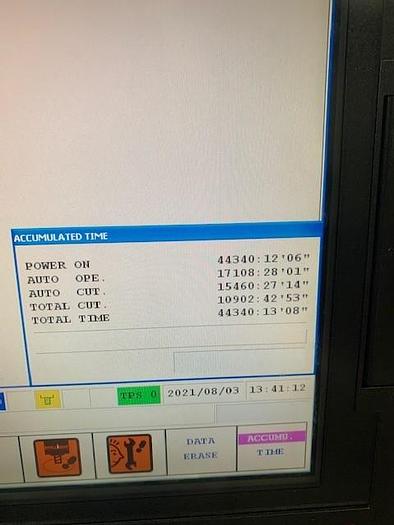

Total Cut Hours 10,902
Specifications
| Manufacturer | Mazak |
| Model | Integrex 100-IV |
| Year | 2011 |
| Condition | Used |
| Stock Number | 117674 |

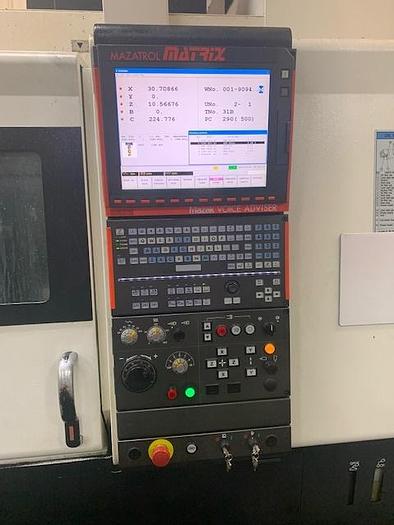

| Machine Control | Mazatrol Matrix |
| Chuck Size | 6" 3-Jaw Hydraulic |
| Maximum Swing | 21.45" |
| Maximum Swing over Bed | 13.86" |
| X-Axis Travel | 16.14" |
| Y-Axis Travel | +/- 2.75" |
| Z-Axis Travel | 31.69" |
| C-Axis Rotation | .001 Degrees |
| Spindle Nose / Bore / Bar Capacity | A2-5 / 2.4" / 2" |
| Spindle Speed | 6,000 rpm |
| Spindle Motor | 15/10 hp |
| Rapid Traverse Rates X/Y/Z/C | 1181ipm / 1024 ipm / 1299 ipm / 555 ipm |
| Tool Magazine Capacity | 40 Position Tool Changer |
| Spindle Taper | KM 63 |
| Rotary Tool Speed / Rotary Motor | 12,000 rpm / 7.5 hp |
| Maximum Tool Diameter / Length / Weight | 3.54" / 7.87" / NA |
| Tailstock Body Travel / Center | NA |
| Machine Dimensions LxWxH | 119"x85"x92" |
| Machine Weight | 16,500 lbs |
