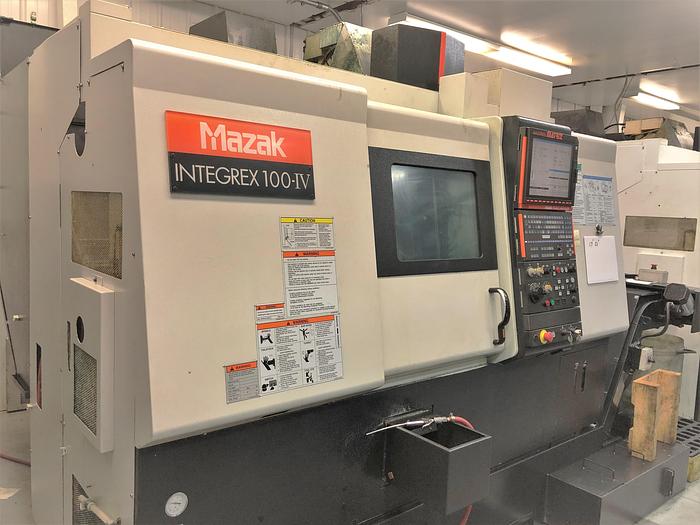

2007 Mazak Integrex 100-IV

2007 Mazak Integrex 100-IV

$89,500 (USD)


orCall (863) 439-6066

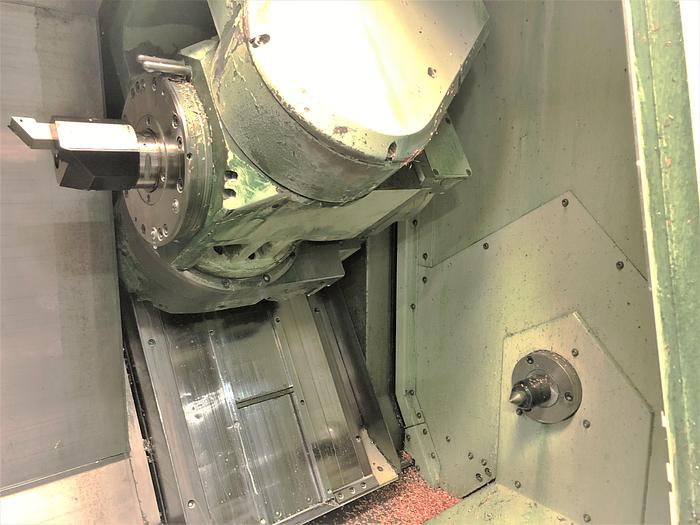

B Axis Pendulum Head 225 Degrees Movement

Full C-Axis

Live Milling / Drilling Capability

Y Axis Capability for Off Center Work

6" 3 Jaw Hydraulic Chuck with 2" Bar Capacity Package

40 Station Tool Changer with CAPTO Type

Programmable Tailstock

Automatic Parts Catcher

Chip Conveyor

Automatic Tool Eye

EIA Input Function

High Smoothing Control

Spiral Interpolation

EIA 3D Compensation

Coolant Through the Millhead

213 PSI High Pressure Coolant with Flood

Overload Detection

Smoothing Control Function

Absolute Positioning System




Ext-Data I/O

Shape Comp


Inverse Time

3-D Co-Or Rotation

Auto Tool Length Measurement

Polar Coordinates Input

Comparison Stop

Tilted Working Plane

2nd Auxiliary Functions


Variable 600 Sets

G00 Slope

Rotation Axis Shape Compensation

Inch/MM Conversion

All Available Manuals

Manufactured New June of 2007


ModelIntegrex 100-IV
Stock Number117644

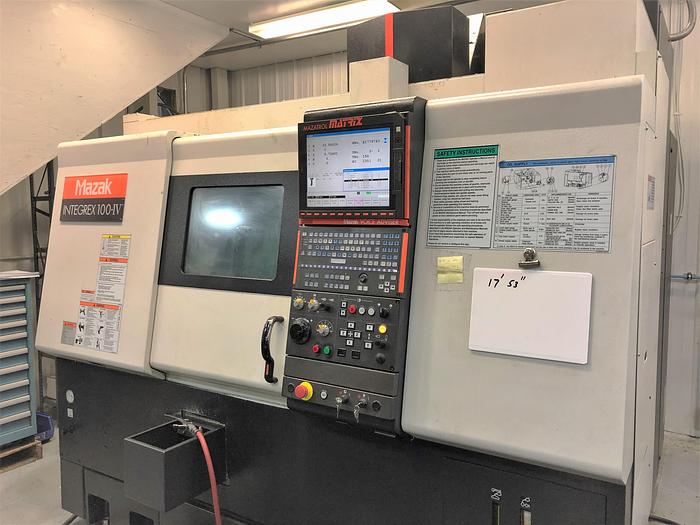

Machine ControlMazatrol Matrix
Chuck Size6" 3-Jaw Hydraulic
Maximum Swing21.45"
Maximum Swing over Bed13.86"
X-Axis Travel16.14"
Y-Axis Travel+/- 2.75"
Z-Axis Travel31.69"
C-Axis Rotation.001 Degrees
Spindle Nose / Bore / Bar CapacityA2-5 / 2.4" / 2"
Spindle Speed6,000 rpm
Spindle Motor15/10 HP
Rapid Traverse Rates X/Y/Z/C1181ipm / 1024 ipm / 1299 ipm / 555 ipm
Tool Magazine Capacity40 Position Tool Changer
Spindle TaperCAPTO
Rotary Tool Speed / Rotary Motor12,000 rpm / 7.5 hp
Maximum Tool Diameter / Length / Weight3.54" / 7.87" / NA
Tailstock Body Travel / CenterNA
Machine Dimensions LxWxH119"x85"x92"
Machine Weight16,500 lbs
