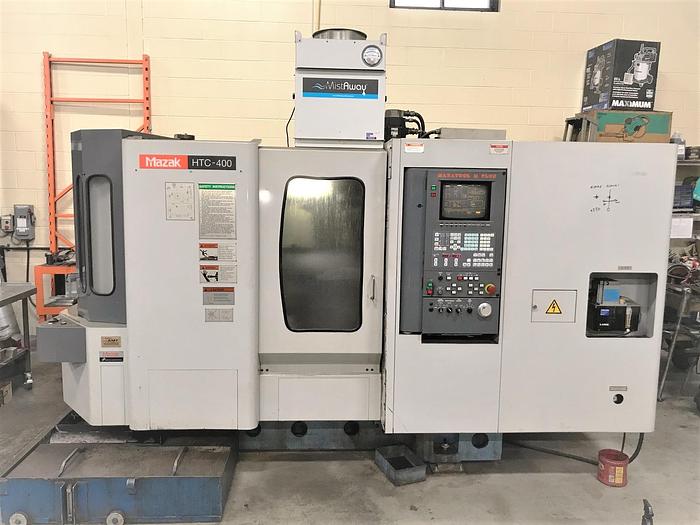

1998 Mazak HTC400
No longer available
1998 Mazak HTC400
$25,000 (USD)
Ontario, Canada
Description

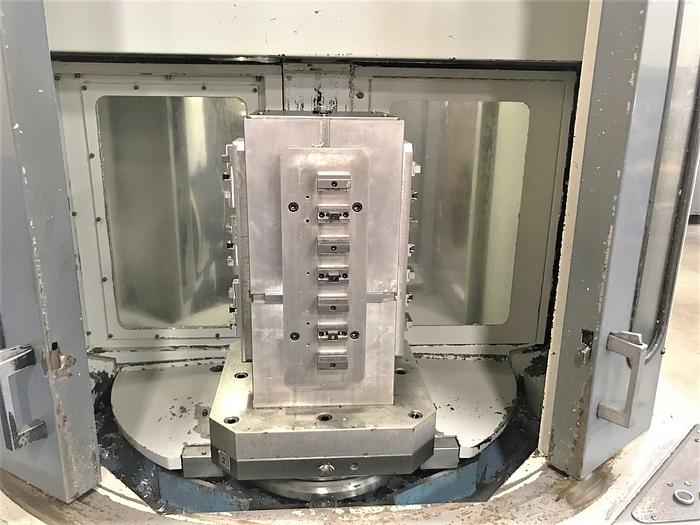

2 Pallet Changer System
Coolant Through the Spindle
4th Axis Rotary Table with 1 Degree Indexing
30 Position Tool Changer
Automatic Tool Length Measurement-Probe
Part Probe - Never Used
Chip Conveyor
Dual Chip Augers
Niagara Coolant System with Pump
Flood Coolant System
Helical Interpolation
EIA/ISO Input Function
RS-232C Interface
Tool Life Monitoring
Adaptive Feedrate Control
Tool Life Management
Spare Tool Selection
Background Tool Path Check
Approximately (40) BT40 Tool Holders

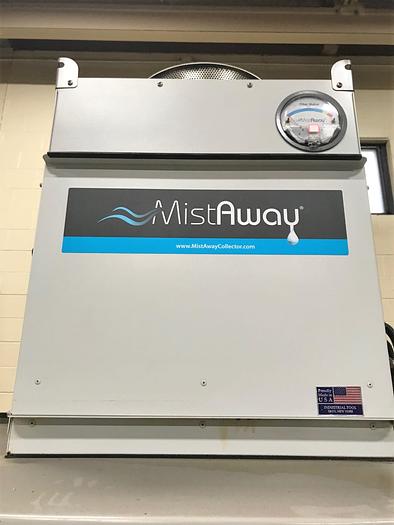

Mist Away Mist Collection Unit
Full Compliment of Machine Manuals
Specifications
| Manufacturer | Mazak |
| Model | HTC400 |
| Year | 1998 |
| Condition | Used |
| Stock Number | 117643 |
| Machine Control | Mazatrol Mplus |
| Pallet Size / Number of Pallets | 15.7"x15.7" / 2 Pallets |
| Maximum Table Load | 660 LBS |
| Distance Spindle Nose to Table Top | 5.9"-25.98" |
| Table Indexing | 1 Degree Pallet Indexing |
| X-axis travel | 22.05" |
| Y-Axis Travel | 20.08" |
| Z-Axis Travel | 20.08" |
| Spindle Speed | 10,000 rpm |
| Spindle Taper | BT #40 |
| Spindle Motor | 15 HP |
| Spindle Torque | 51.3 ft. lbs |
| Tool Magazine Capacity | 30 Position ATC |
| Maximum Tool Diameter / Length / Weight | 4.52" / 14.96" / 17.6 lbs |
| Rapid Traverse Rates | 1181 IPM |
| Machine Dimensions LxWxH | 140"x89"x90" |
| Machine Weight | 16,400 lbs |
