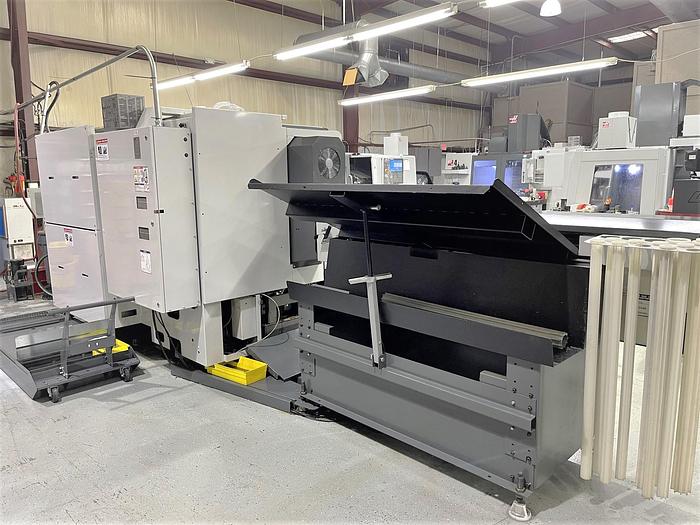

2013 Haas DS-30Y with Bar Feeder
No longer available
2013 Haas DS-30Y with Bar Feeder
$94,900 (USD)
Location:California
Description

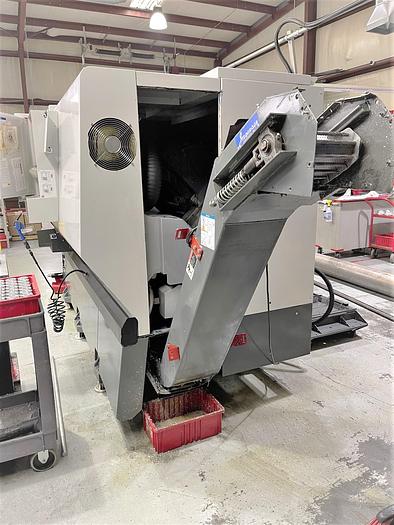

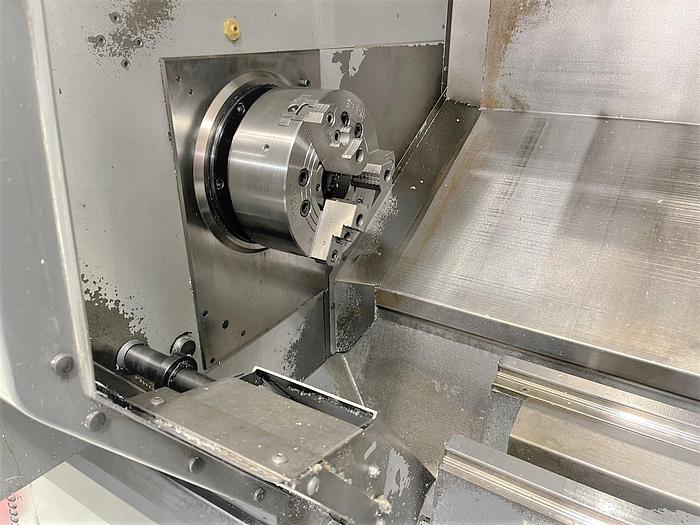

Subspindle Y Axis Capability Full C Axis Spindle Rotation Live Milling / Drilling Capable 10" Hydraulic Chuck on Main Spindle 8.3" Hydraulic 3 Jaw Chuck on Subspindle Parts Catcher Chip Conveyor
Rigid Tapping

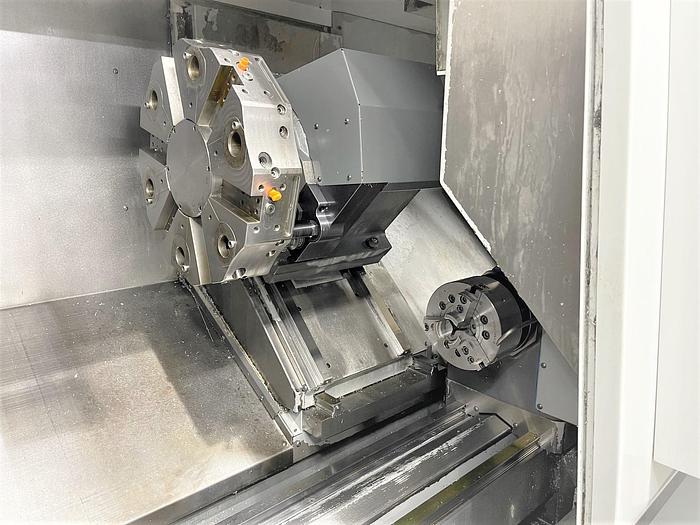

Spindle Orientation 12 Station Hybrid VDI/BOT Type Turret
Auto Jet Air Blast High Torque Live Tooling w/C-Axis High Intensity Lighting Internal High Voltage Transformer 380V - 480V
USB Port Interface
RS 232 Port Interface
Includes (2) Live Holders, (1) Axial and (1) Radial
All Available Static Tool Holders All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | DS-30Y |
| Year | 2013 |
| Condition | Used |
| Stock Number | 117639 |
| Quantity | 1 |

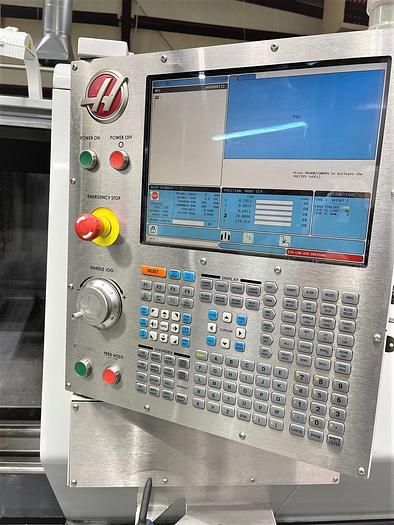

| Control | Haas 32 BIT |
| Chuck Sizes Main / Subspindle | 10" Hydraulic / 8.3" Hydraulic |
| Maximum Swing | 31.75" |
| Maximum Swing Over Cross Slide | 20.75" |
| Maximum Cutting Diameter | 16" |
| Maximum Distance Between Spindles | 23" |
| Maximum Bar Capacity | 3.03" |
| X-axis travel | 12.5" |
| Z-Axis Travel | 23" |
| Y-Axis Travel | +/- 2.0" |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 30 HP |
| Subspindle Nose / Subspindle Bore | A2-5" / 2.44" |
| Subspindle Speed | 4,000 RPM |
| Subspindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 3,000 RPM / 5 HP |
| Number of Turret Positions | 12 Station Turret - VDI/BOT |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 1200 IPM |
| Machine Dimensions | N/A |
| Machin e Weight | 14,600 lbs. |
