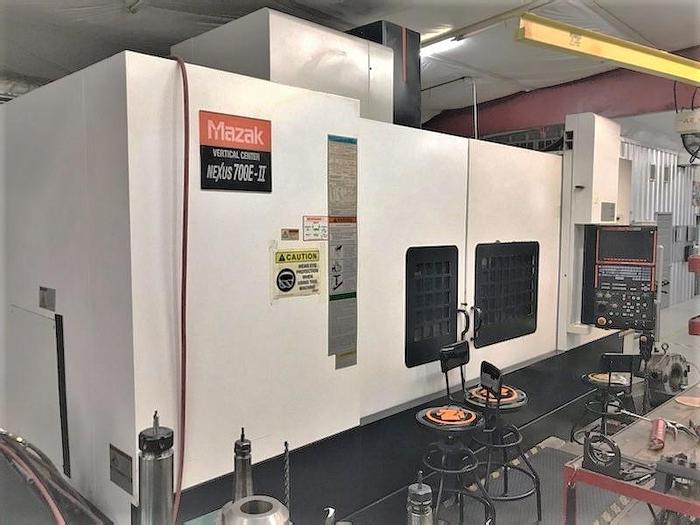

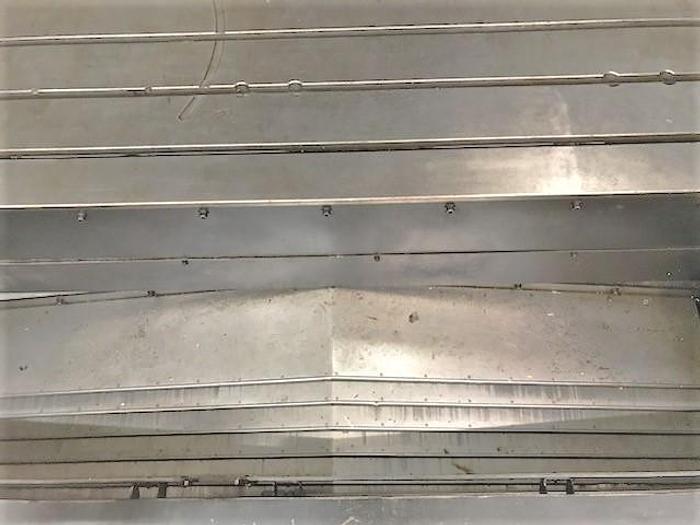

2013 Mazak Nexus VCN 700E/50-II
Featured
No longer available
2013 Mazak Nexus VCN 700E/50-II
$159,500 (USD)
Location:Texas
Description

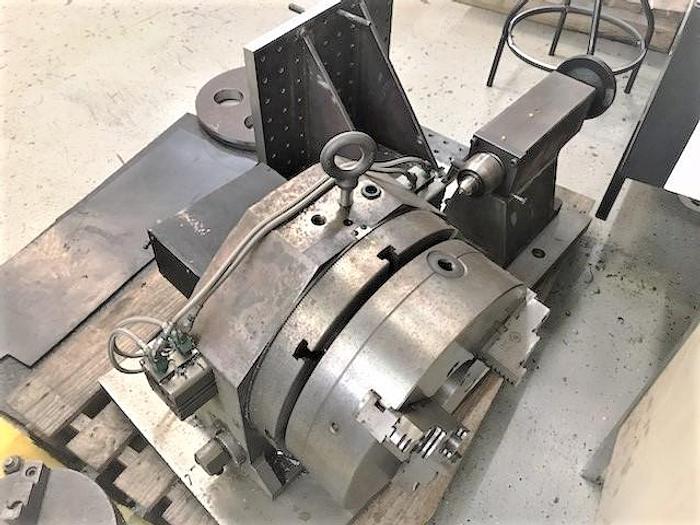

4th Axis Rotary Table
Tailstock for 4th Axis
Coolant Through the Spindle - High Pressure

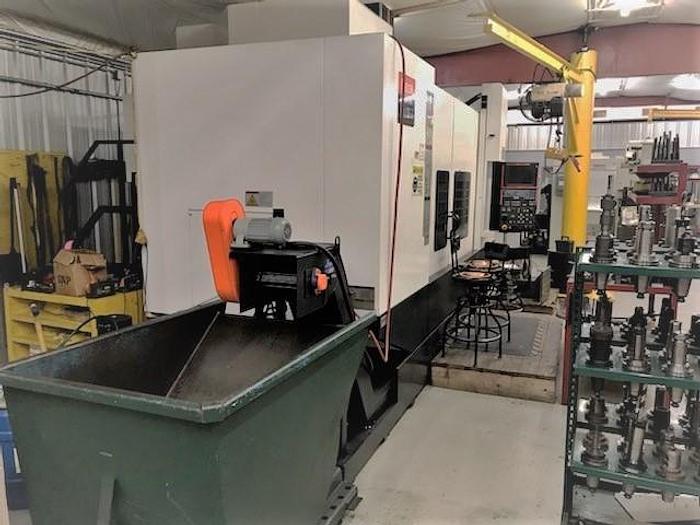

24 Position Side Mounted Tool Changer Chip Conveyor
Spindle Mounted Part Probe (Mazak Monitoring System B) Automatic Tool Length Measurement Tool Probe Remote Jog Handle EIA/ISO Input Function Rigid Tapping Flood Coolant RS 232 Port Interface Mazak 2D Software PCMCIA 2 Slots 12.1" Color LCD Monitor Load Detection

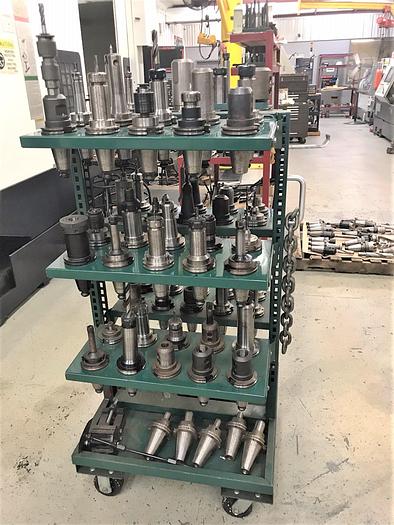

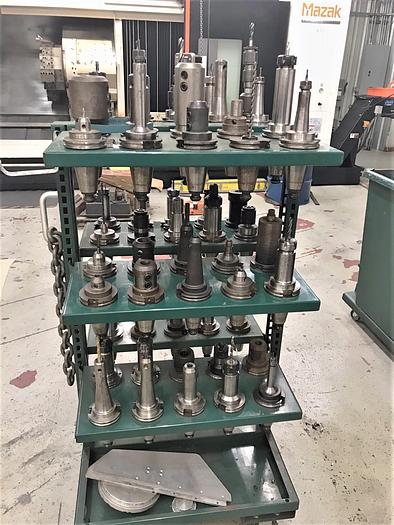

Variety of CAT 50 Tool Holders
Wired 208V Electrics All Available Manuals
CAT 50 Tool Holders
Manufactured new in February of 2013
Specifications
| Manufacturer | Mazak |
| Model | Nexus VCN 700E/50-II |
| Year | 2013 |
| Condition | Used |
| Stock Number | 117638 |
| Quantity | 1 |
| Control | Mazatrol Matrix Nexus |
| Table Size | 80" x 27.5" |
| Maximum Weight on Table | 5,511 lbs. |
| Distance Spindle Nose to Table Top | 7.87" - 36.22" |
| X-Axis Travel | 80" |
| Y-Axis Travel | 27.6" |
| Z-Axis Travel | 28.4" |
| Spindle Taper | CAT #50 |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 30 HP |
| Number of Tool Positions | 24 Station Tool Changer |
| Maximum Tool Length / Weight | 15.75" / 44 lbs. |
| Tool Change Time Tool to Tool | 2.0 seconds |
| Rapid Traverse Rates X, Y / Z | 1182 IPM / 790 IPM |
| Cutting Feedrates | 1182 IPM |
| Machine Dimensions | 162" x 137.2" x 143" |
| Machine Weight | 31,500 lbs. |
