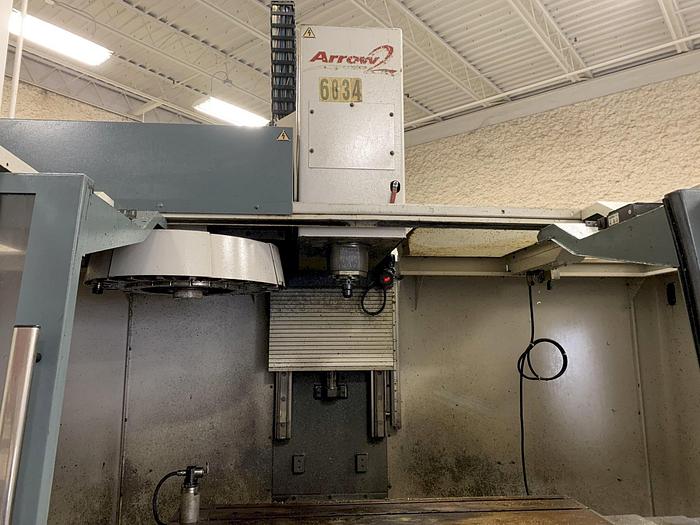

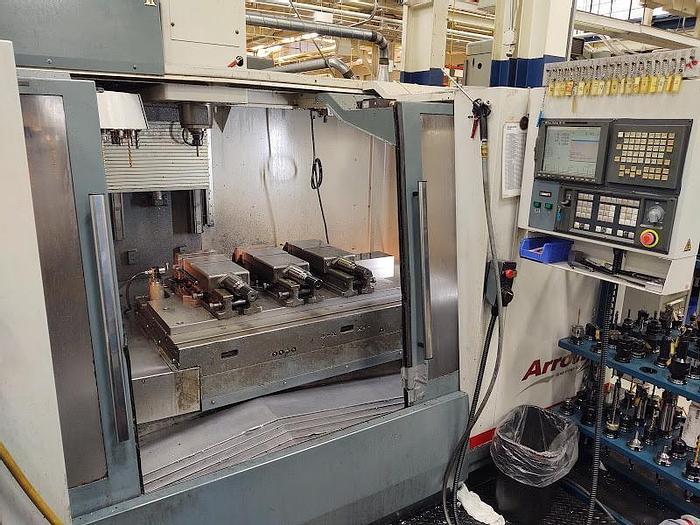

1999 Cincinnati Arrow 1250
No longer available
1999 Cincinnati Arrow 1250
$21,500 (USD)
Location:Ohio
Description
Full Enclosure
Automatic Lubrication
Tool Presetter
All Available Manuals
Specifications
| Manufacturer | Cincinnati |
| Model | Arrow 1250 |
| Year | 1999 |
| Condition | Used |
| Stock Number | 117630 |

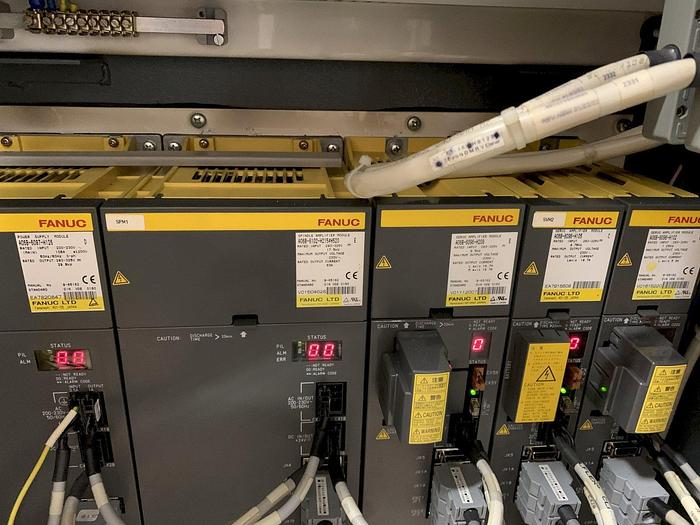

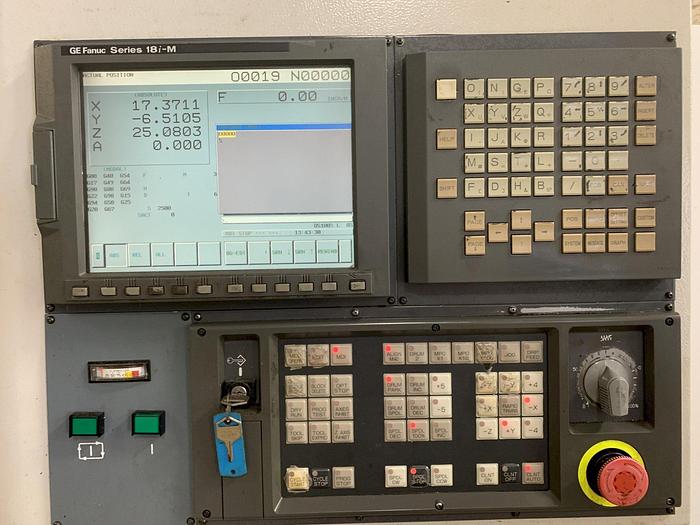

| Machine Control | Fanuc 18i |

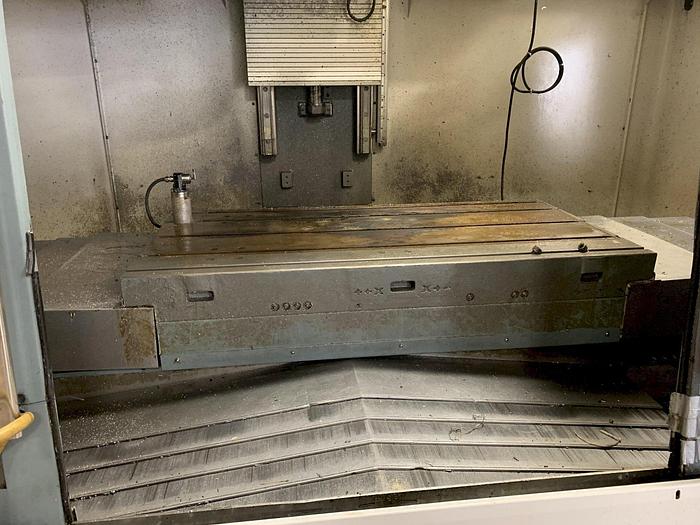

| Table Size | 60"x30" |
| Maximum Table Load | 4,410 lbs |
| X-Axis Travel | 50" |
| Y-Axis Travel | 30" |
| Z-Axis Travel | 30" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 6,000 rpm |
| Spindle Motor | 15 hp |

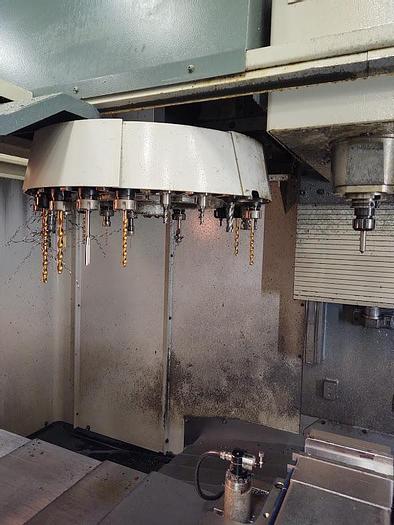

| Tool Magazine Capacity | 21 atc |
| Rapid Traverse Rates | 944 ipm |
| Cutting Feedrates | .1 to 590 ipm |
| Machine Dimensions LxWxH | 145"x112"x142" |
| Machine Weight | 19,360 lbs |
