2014 Haas Super Mini Mill 2
No longer available
2014 Haas Super Mini Mill 2
$59,900 (USD)
Location:United States
Description

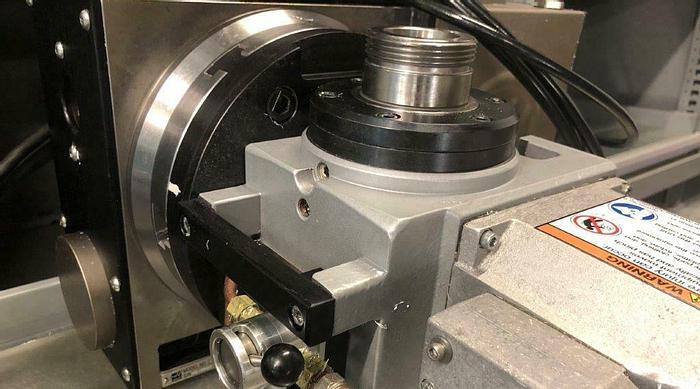

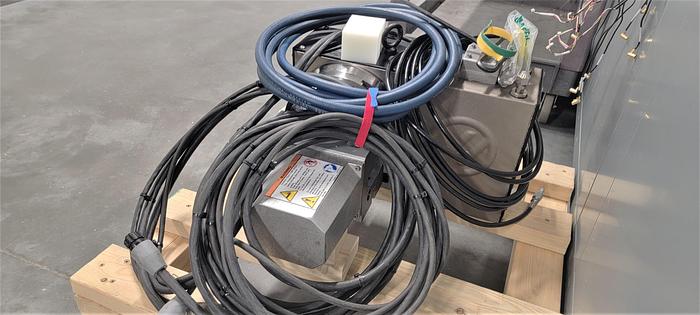

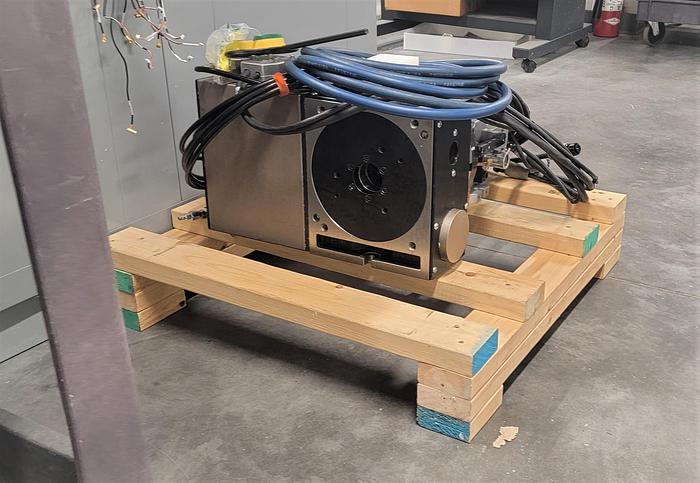

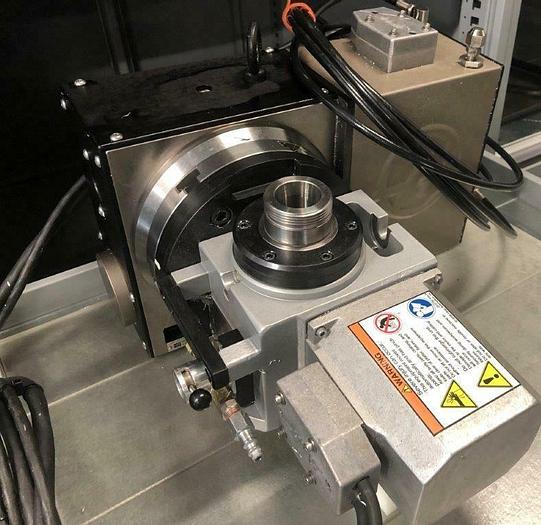

Haas Trunnion Style 5C Collet Indexer
Pre-Wired for 4th Axis
Pre-Wired for 5th Axis

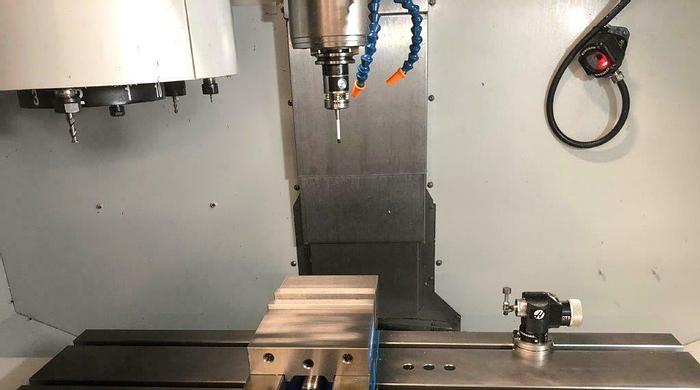

Haas Wireless Intuitive Probing Package

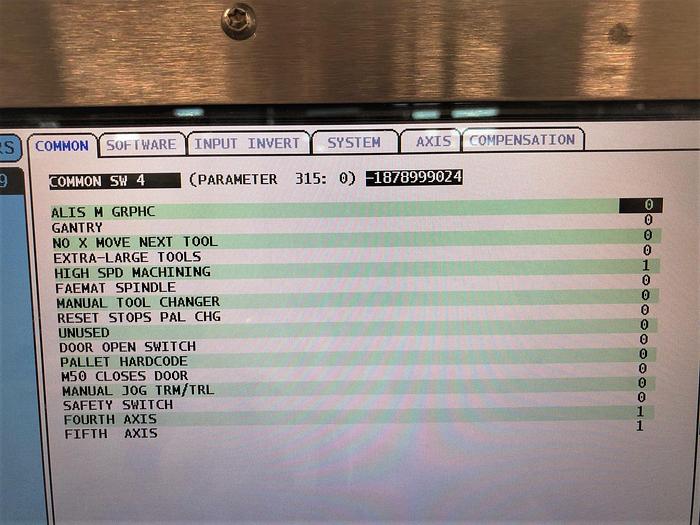

High Speed Machining
User Definable Macros
Coordinate Rotation & Scaling
Auto Air Gun
M19 Spindle Orientation
Visual Part Programming - Conversational

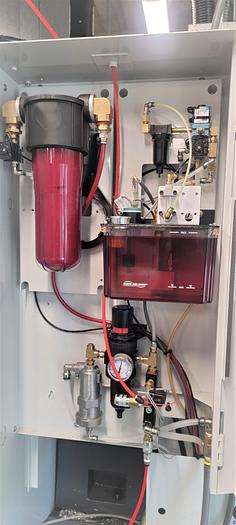

Minimum Quantity Lubrication System (needs to be activated by M Codes)

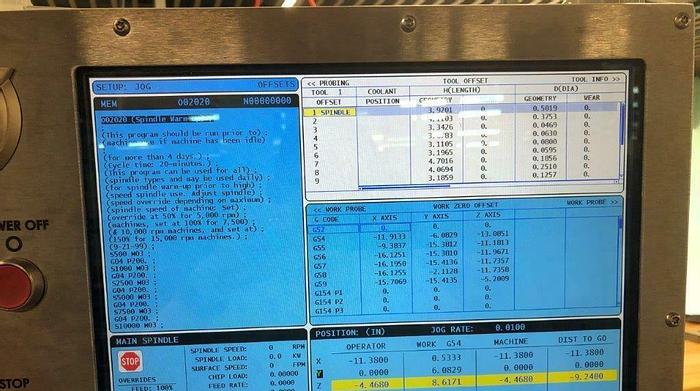

15" Color LCD Monitor
Memory Lock Keyswitch
USB Port Interface
RS 232 Port Interface
All Available Manuals

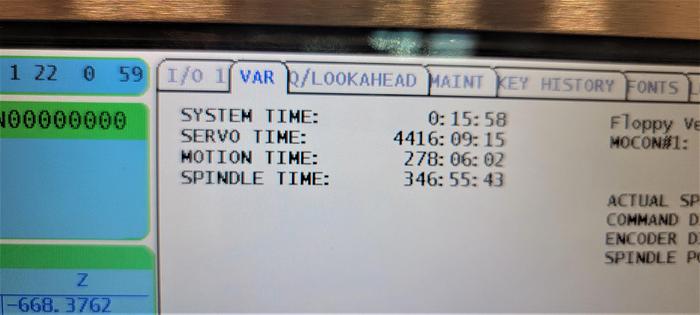

Servo On Hours 4,416
Motion Hours 278
Spindle Hours ONLY 346
*Price at $101,260 as equipped new*
Specifications
| Manufacturer | Haas |
| Model | Super Mini Mill 2 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 117626 |
| Machine Control | Haas CNC Control |
| Table Size | 40" x 14" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 14" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 15 HP |
| Rapid Traverse Rates | 1200 IPM |
| Tool Magazine Capacity | 20 Station ATC |
| Distance Spindle Nose to Table Top | 4" - 18" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91"x88"x100" |
| Machine Weight | 6,000 lbs |
