2014 Haas Super Mini Mill
No longer available
2014 Haas Super Mini Mill
$37,500 (USD)
Ontario, Canada
Description

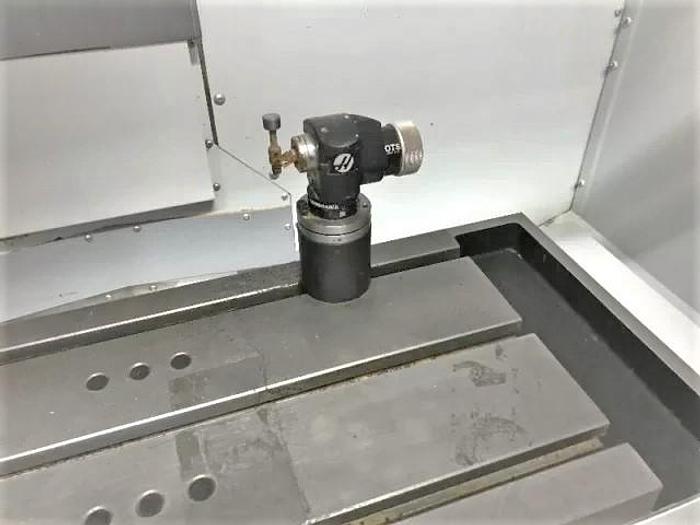

Haas Wireless Probing
Rigid Tapping

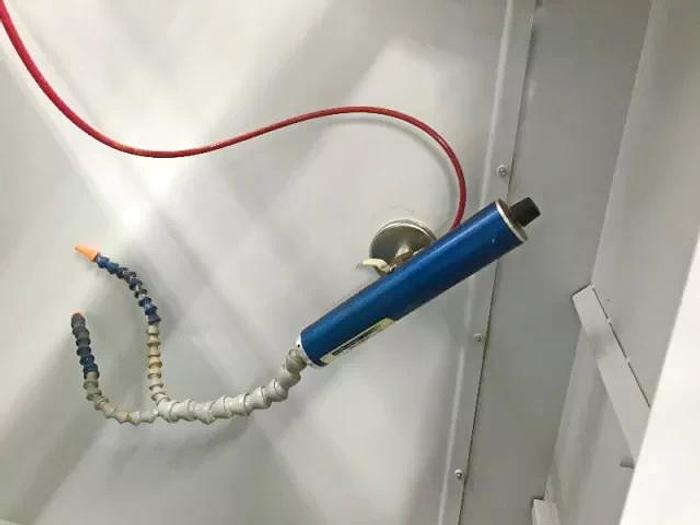

Cold-Air Gun System (Dry Cutting)

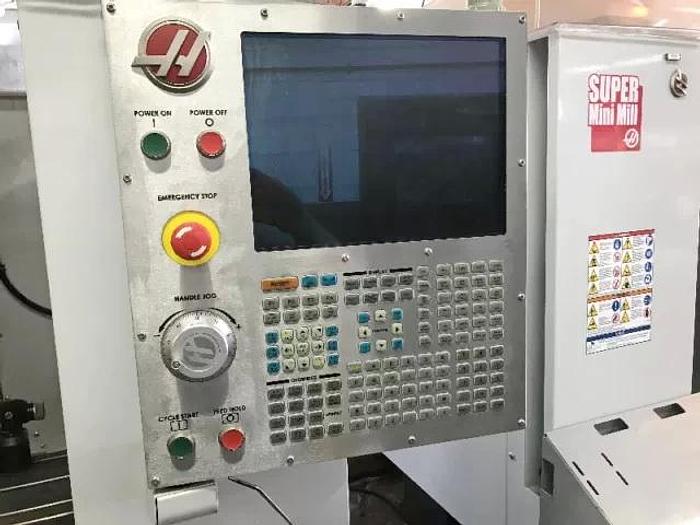

15" Color LCD Monitor
Direct Belt Drive
RS 232 Port Interface
Coolant Tank w/ Pump
Clear Overhead Plastic Cover
Miscellaneous Tool Holders
Specifications
| Manufacturer | Haas |
| Model | Super Mini Mill |
| Year | 2014 |
| Condition | Used |
| Stock Number | 117623 |
| Table Size | 36" x 12" |
| Maximum Table Load | 500 lbs |
| X-axis travel | 16" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 10" |
| Spindle Taper | CAT #40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 15 HP |
| Distance Spindle Nose to Table Top | 4" - 14" |
| Tool Magazine Capacity | 10 Position ATC |
| Tool Change Time Tool to Tool | 2.5 Seconds |
| Rapid Traverse Rates | 1200 IPM |
| Machine Weight | 3,400 lbs |
| Machine Dimensions | 91" x 88" x 100" |
