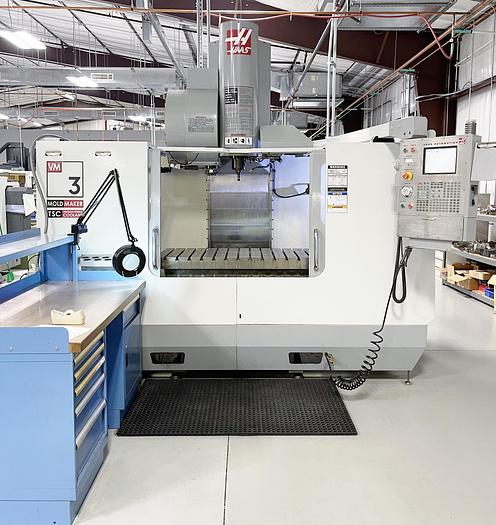

2005 Haas VM3
No longer available
2005 Haas VM3
$42,500 (USD)
Texas
Description
24+1 Position Side Mounted Tool Changer
4th Axis Drive & Wiring -
Coolant Through the Spindle - 300 PSI
12,000 RPM Spindle
Auger Style Chip Conveyor
High Speed Machining
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Remote Jog Handle
Programmable Coolant Nozzle
Rigid Tapping
Auto Air Gun
Auxiliary Coolant Filtration System
Coolant Tank with Pump
Ethernet Interface
RS 232C Port Interface for DNC Operation
All Available Manuals

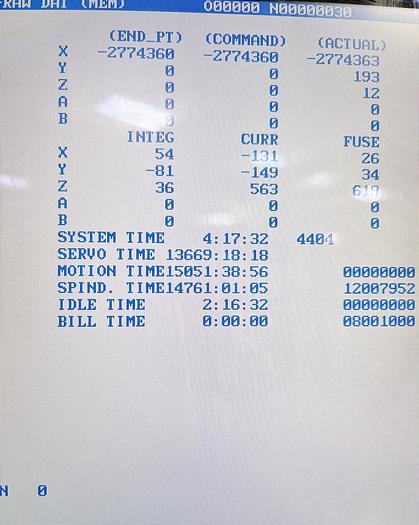

14,761 Spindle Hours as of July 2021
*Has primarily cut Aluminum and some Plastic
*Price new as equipped at $120,000
Specifications
| Manufacturer | Haas |
| Model | VM3 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 117611 |

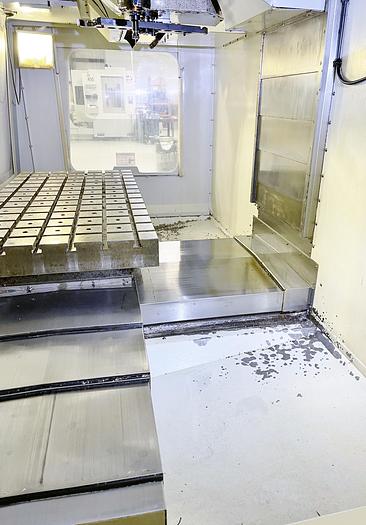

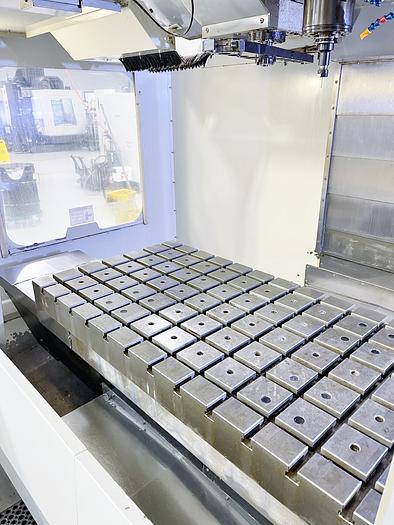

| Table size | 54" x 25" |
| Max table load | 4,000 lbs. |
| X axis travel | 40" |
| Y axis travel | 26" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid Traverse Rates | 710 IPM |
| Machine dimensions | 122" x 96" x 100" |
| Machine weight (approximately) | 14,000 lbs. |
