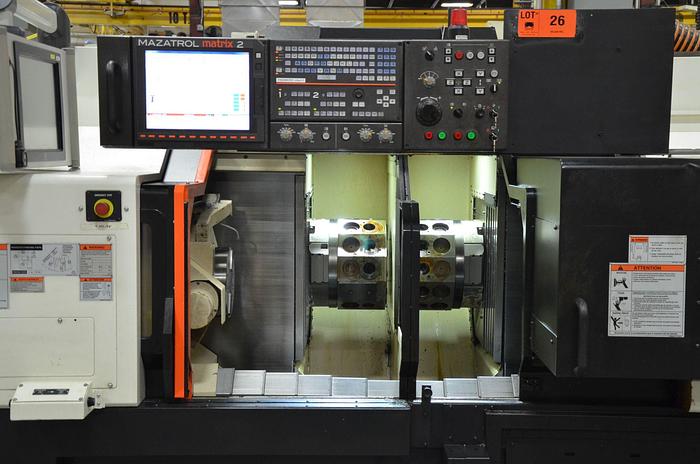

2014 Mazak Multiplex 6300II-M
No longer available
2014 Mazak Multiplex 6300II-M
$149,500 (USD)
Location:Illinois
Description

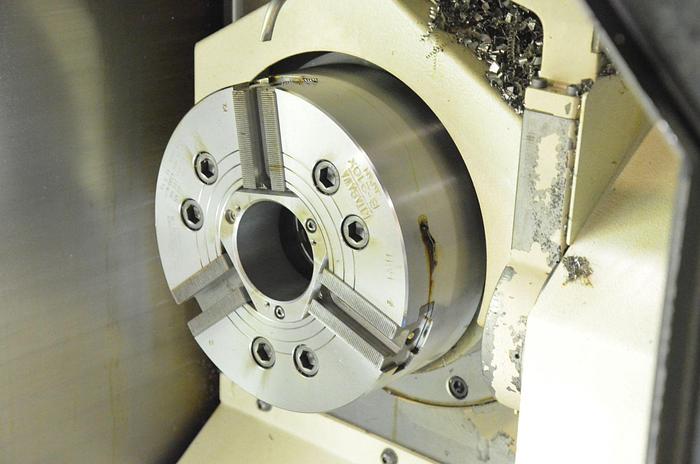

(2) 10" 3-Jaw Kitagawa Chucks
Automatic Tool Eyes Both Sides
Automatic Center Patrician
Chuck Air Blast
EIA/ISO Function
Transfer Air Blast
Chuck Open/Close Confirmation
Chip Conveyor
(2) 630mm x 800mm Tapped Hole Pallets
(4) Rotary Tool Holders
(11) Static Tool Holders
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Multiplex 6300II-M |
| Year | 2014 |
| Condition | Used |
| Stock Number | 117610 |

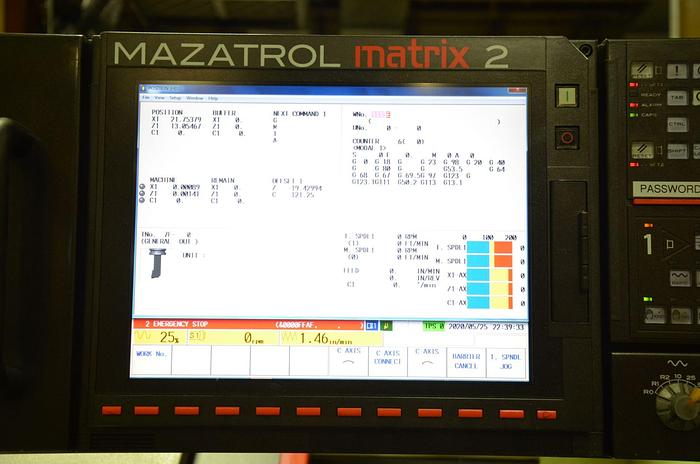

| Machine Control | Mazatrol Matrix-II |
| Chuck Sizes Main / Subspindle | 10" / 10" |
| Maximum Swing over Bed | 16.93" |
| Maximum Machining Length | 25.6" |
| Distance Between Spindles | 57.09" |
| Spindle Nose / Spindle Bore - Both Spindles | A2-8 / 3.46" |
| Bar Capacity Both Spindles | 3" |
| Spindle Speeds - Both Spindles | 4,000 rpm |
| X-Axis Travel | 12.2" Both Sides |
| Z-Axis Travel | 23.82" Both Sides |
| C-Axis Rotation | .001 Degrees Both Sides |
| Rotary Tool Speed / Rotary Motor | 4,000 rpm / 10 hp |
| Rapid Traverse Rates | 945 ipm |
| Machine Dimensions LxWxH | NA |
| Machine Weight | 24,200 lbs |
