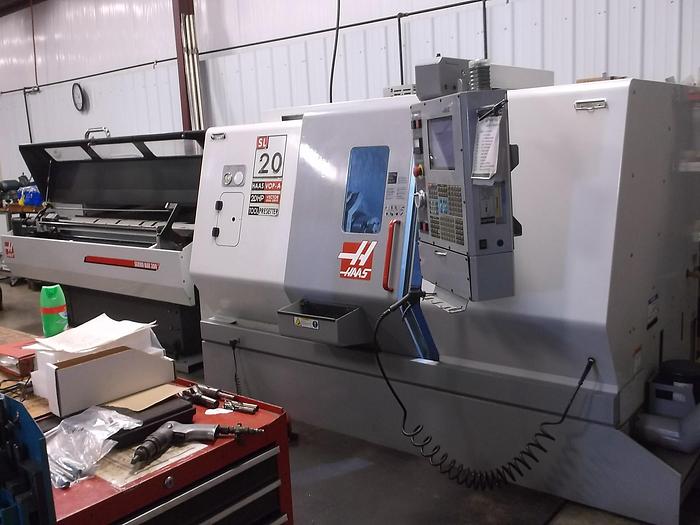

2004 Haas SL-20 Chucker
No longer available
2004 Haas SL-20 Chucker
$45,000 (USD)
Location:Tennessee
Description

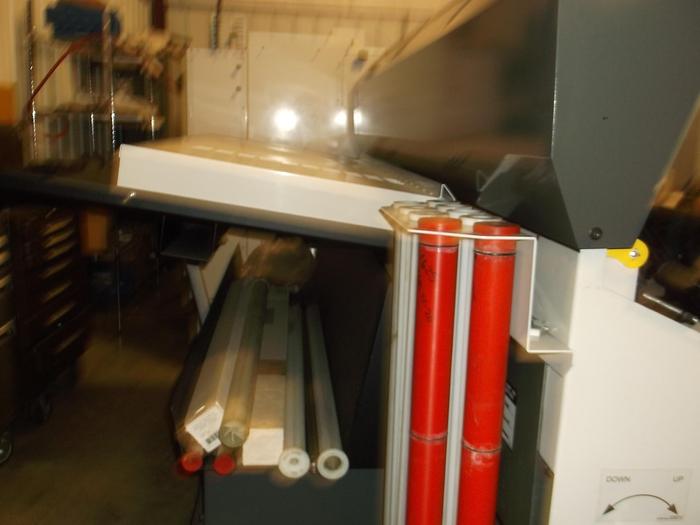

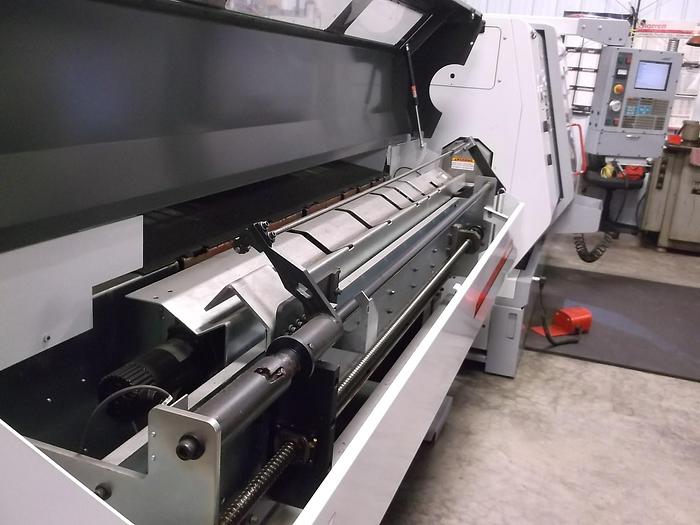

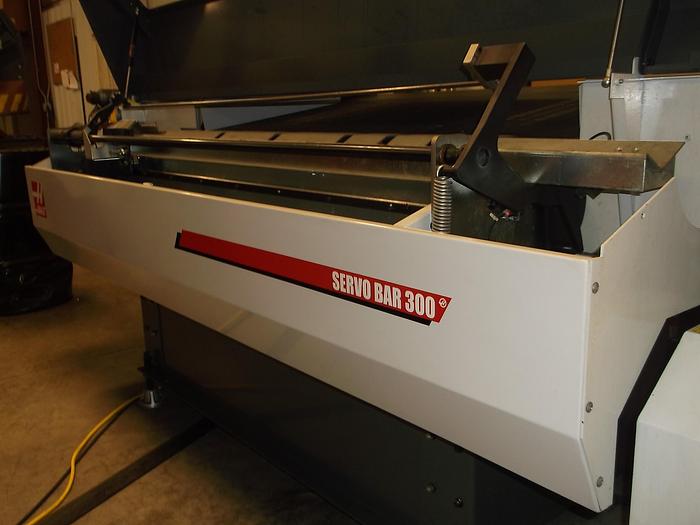

Haas Servo 300 Barfeed installed in 2016

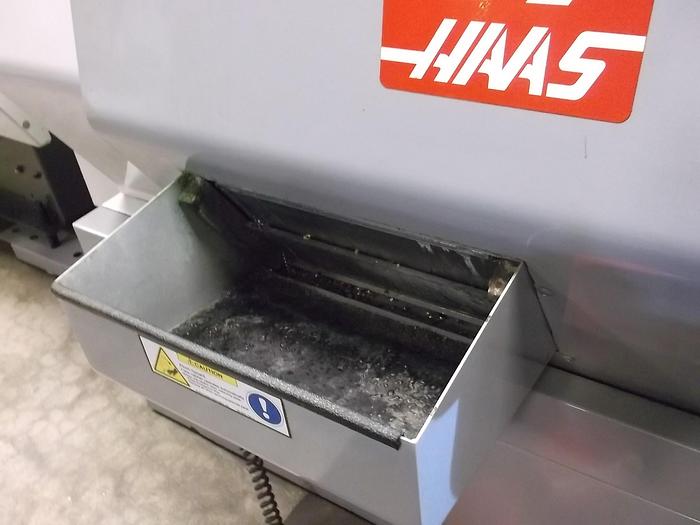

Parts Catcher installed in 2016

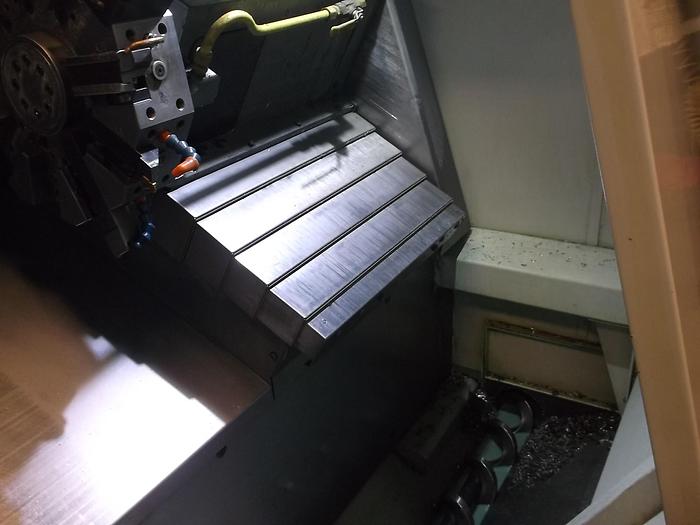

Chip Auger

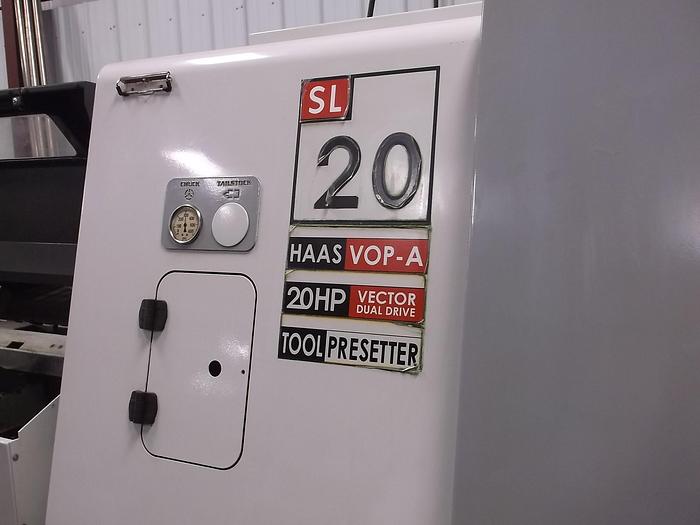

Tool Eye

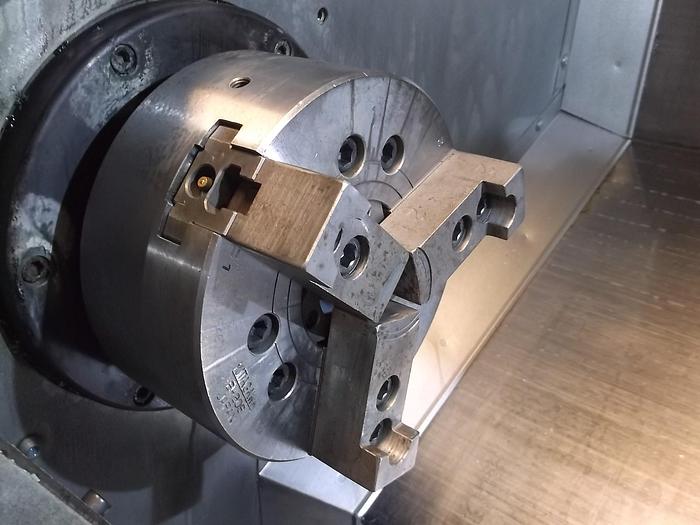

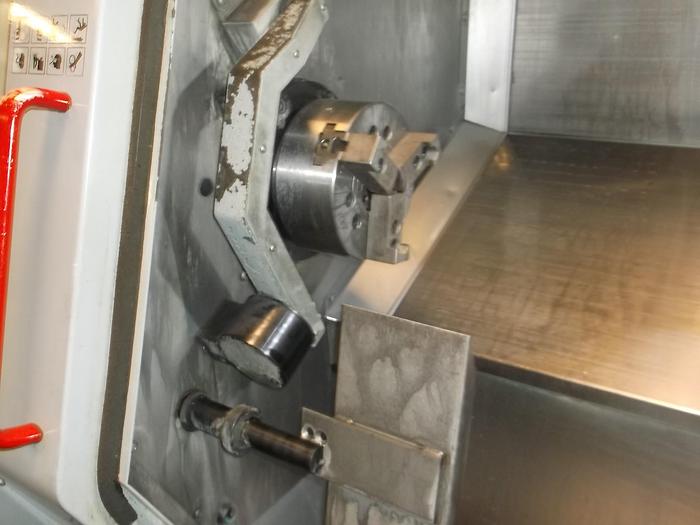

8" 3 Jaw Hydraulic Chuck
1 MB Program Memory
Rigid Tapping
3.5" Floppy Disk Interface
RS232 Port Interface
Status Condition Lights

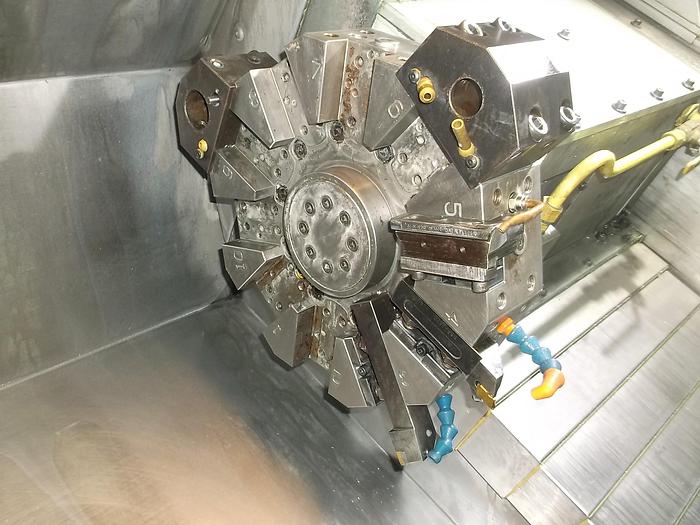

Bolt On Style Turret
208/230 V 3 phase
All Available Manuals
Miscellaneous Tool Blocks and Spindle Liners
Same Operator since day one
**Chucker no Tailstock**
Specifications
| Manufacturer | Haas |
| Model | SL-20 Chucker |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117603 |

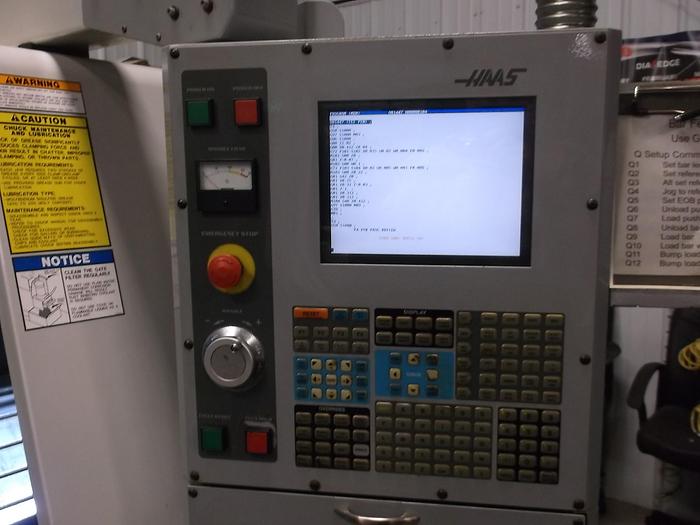

| Machine Control | Haas CNC Control |
| Chuck Size | 8" 3-Jaw Hydraulic |
| Maximum Swing | 20" |
| Maximum Swing Over Cross Slide | 10" |
| Distance Between Centers | 24" |
| X-Axis Travel | 8.45" |
| Z-Axis Travel | 20" |
| Spindle Speeds | 0 - 4,000 rpm |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.4" / 2" |
| Spindle Motor | 20 HP |
| Spindle Torque | 120 ft/lbs |
| Number of Turret Positions | 10 Station Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | NA |
| Machine Dimensions LxWxH | 126.5"x62"x72" |
| Machine Weight | 9,000 lbs |
