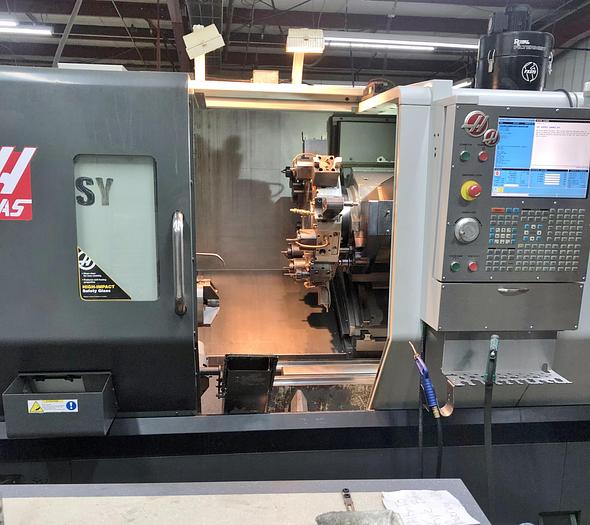

2015 Haas DS-30SSY
No longer available
2015 Haas DS-30SSY
Michigan
Description

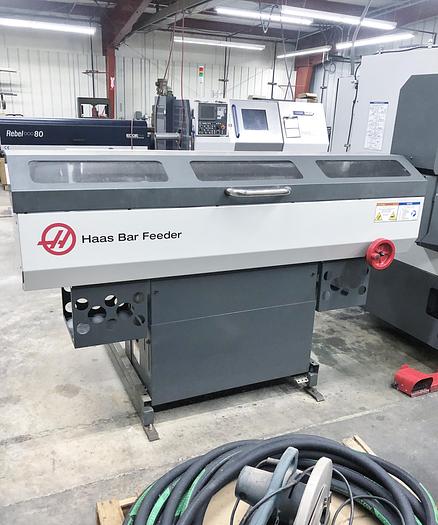

HAAS Barfeeder
Y-Axis
Live Milling (6,000 RPM)
Subspndle

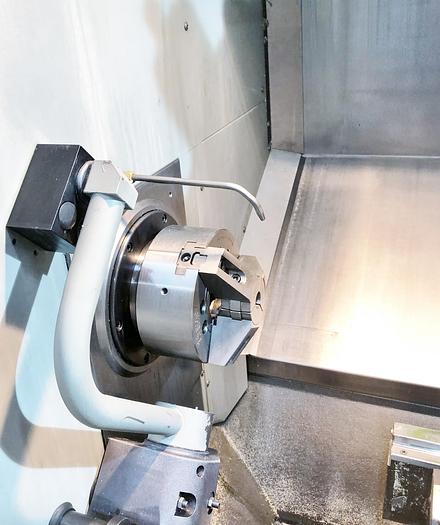

8”, 3-JawHydrauic Chucks (Main & Sub)

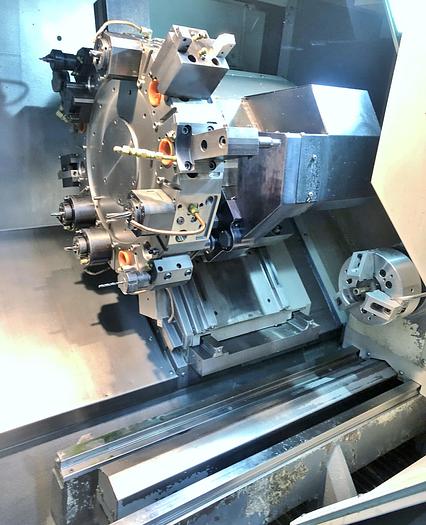

24-Station Hybrid VDI/Bolt-On Turrett
Royal Filtermist Mist Collector
Tool Presetter
Parts Catcher

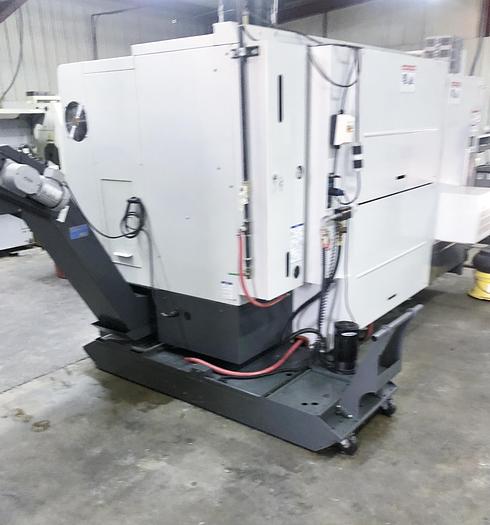

Chip Conveyor
Chuck Air Blast

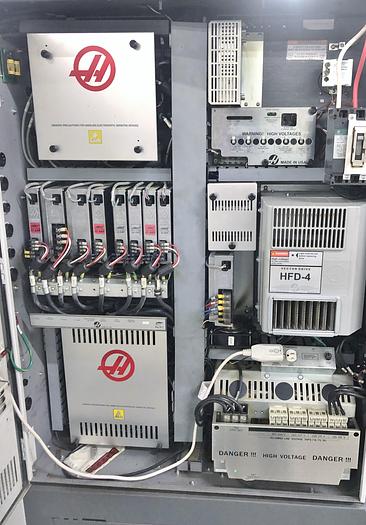

Control Cabinet Cooler
Hight Intensity Lighting
Spindle Orientation
Rigid Tapping
USB Port

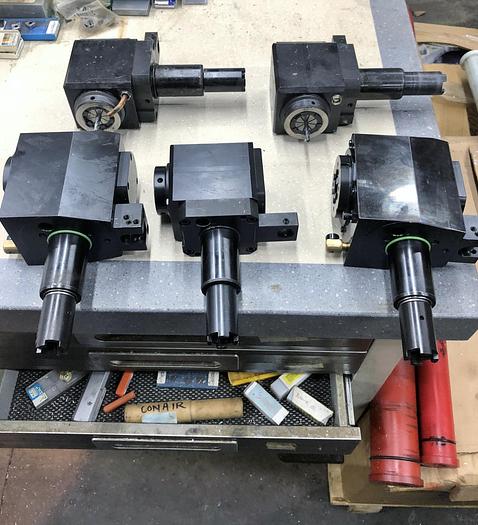

(5) Radial Live Toolholders
(4) Axial Live Toolholders
Only cut Aluminum
Replacement cost is $210k
Specifications
| Manufacturer | Haas |
| Model | DS-30SSY |
| Year | 2015 |
| Condition | Used |
| Stock Number | 117598 |
| Chuck Sizes Main / Subspindle | 8" / 8" |
| Maximum Swing over Bed | 31.75" |
| Maximum Cutting Diameter | 16" |
| Maximum Cutting Length | 23" |
| X-Axis Travel | 12.5" |
| Y-Axis Travel | +/- 2" |
| Z-Axis Travel | 23" |
| C-Axis Rotation | Full C-Axis |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 3.5" / 3" |
| Spindle Motor | 30 HP |
| Spindle Speeds | 0-4,800 rpm |
| Subspindle Nose / Bore / Bar Capcity | A2-5 / 2.44" / 2" |
| Subspindle Motor | 20 hp |
| Subspindle Speed | 4,800 rpm |
| Turret Type | Hybrid Bolt on / VDI 12-Positions |
| Rotary Tool Speed / Rotary Motor | 6,000 rpm / 5 hp |
| Rapid Traverse Rates X, Y / Z | 472 ipm / 1,200 ipm |
| Machine Dimensions LxWxH | NA |
| Machine Weight | 14,600 lbs |
