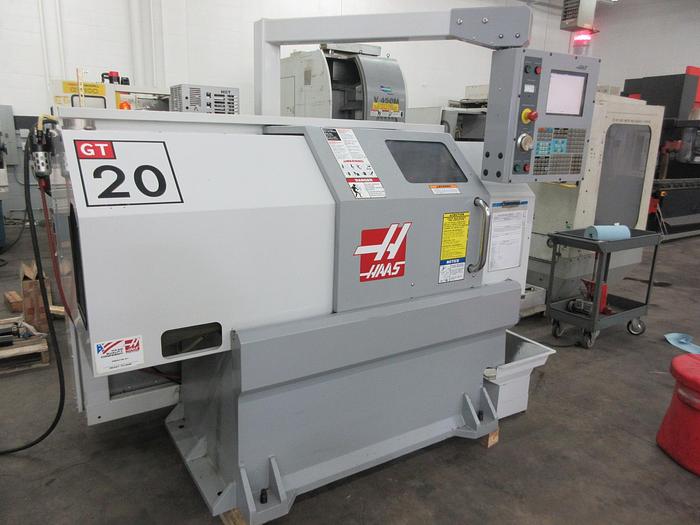

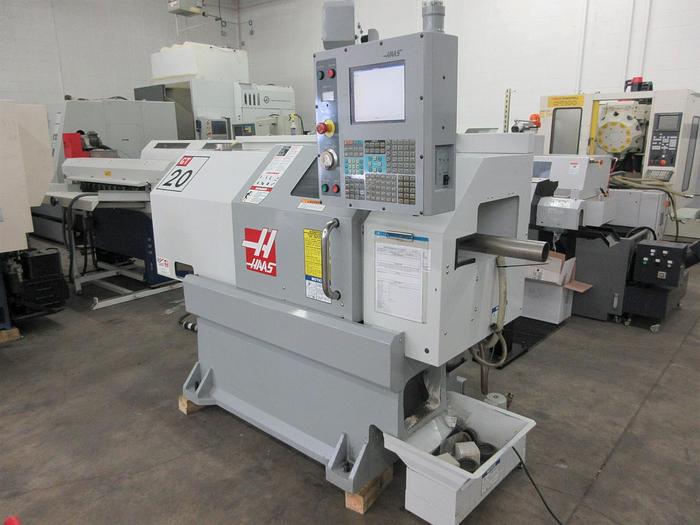

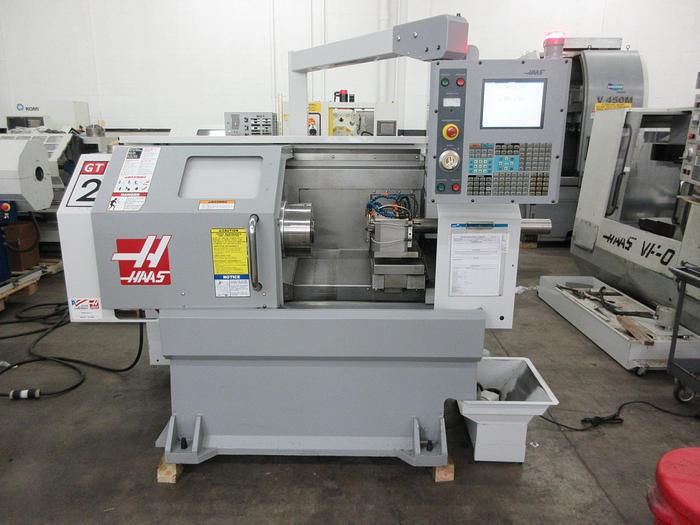

2006 Haas GT-20 Chucker
No longer available
2006 Haas GT-20 Chucker
$19,950 (USD)
Location:Minnesota
Description

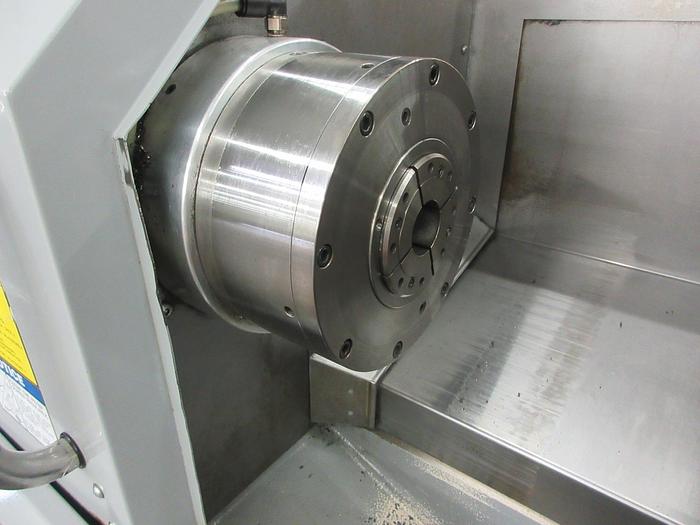

Lexair FB10-32 Full Bore Mechanical Grip Air Release Collet Chuck
-Uses S30 Master Pad Style Collet for .25" - 3.5"
(Machine can handle a 8" Capacity 3 jaw chuck)

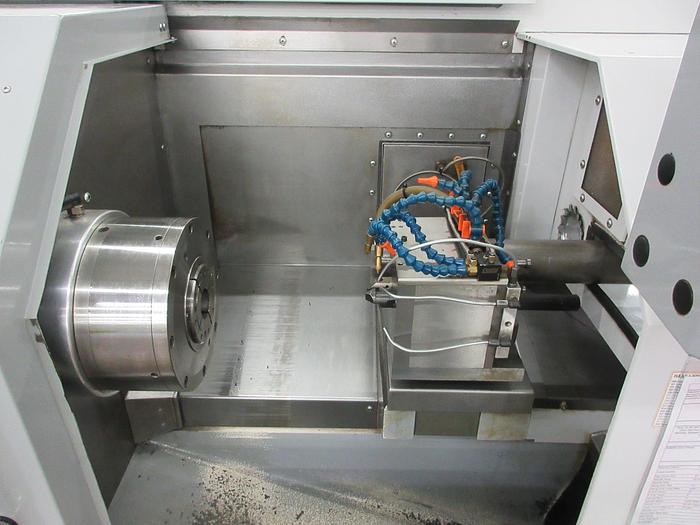

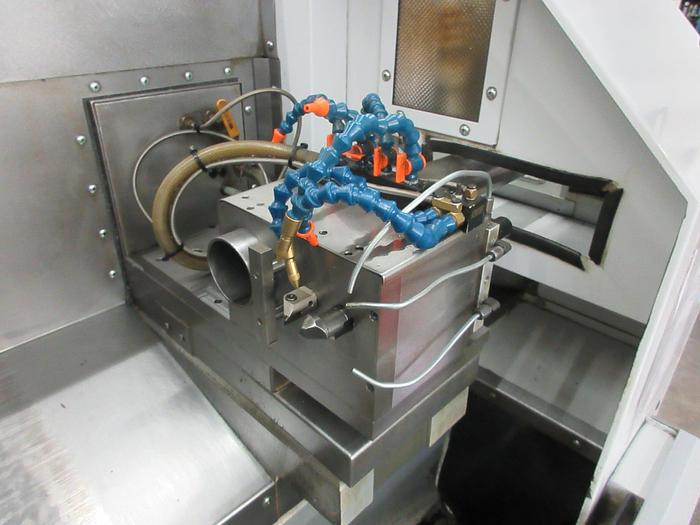

Standard Gang Tooling Plate w/ Custom Tool Holder Block and Coolant Manifold

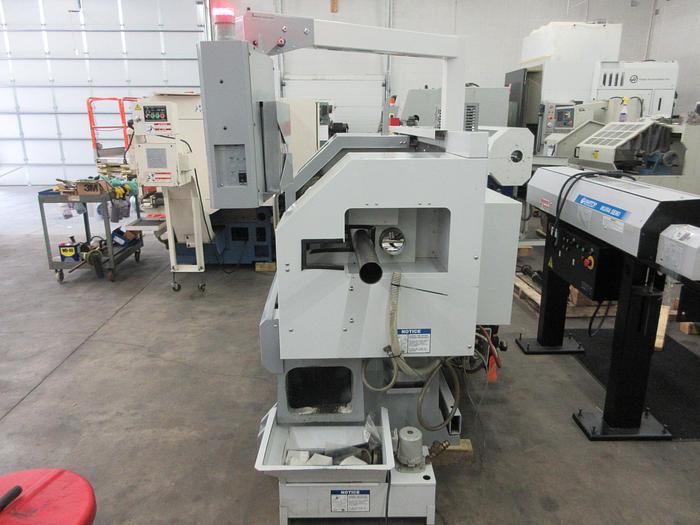

Barfeed Interface
Spindle Orientation
User Definable Macros
8 Spare M Functions
Coolant Tank with Pump
RS 232 Port Interface
Emergency Collet Pads
Wired 208-230 Volt 3 Phase All Available Manuals

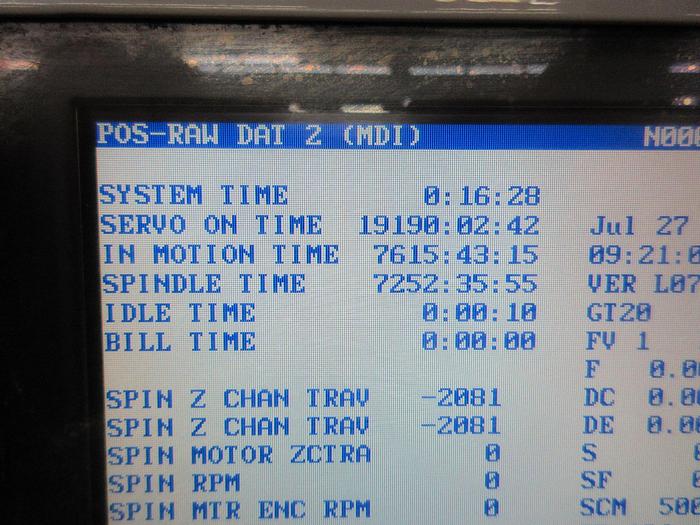

7,252 Spindle Run Hours
Specifications
| Manufacturer | Haas |
| Model | GT-20 Chucker |
| Year | 2006 |
| Condition | Used |
| Stock Number | 117597 |
| Quantity | 1 |

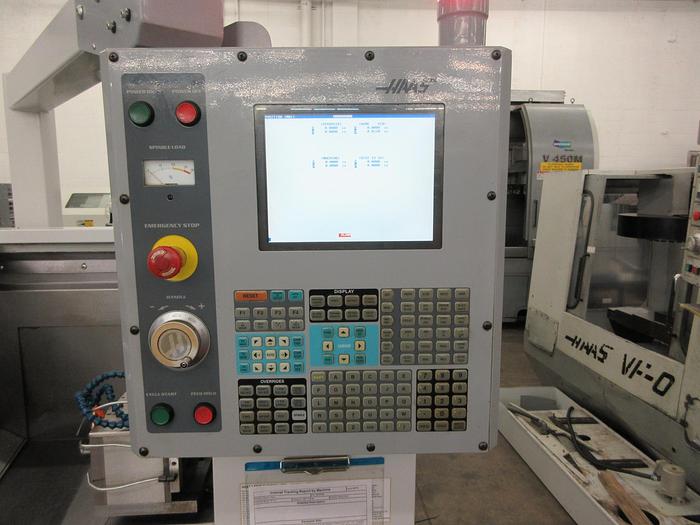

| Control | Haas 32 BIT |
| Chuck Size | Collet Chuck |
| Maximum Swing over Bed | 13" |
| Maximum Swing Over Cross Slide | 9.25" |
| Maximum Turning Diameter | 11" |
| Maximum Turning Length | 12" |
| Maximum Bar Capacity | 1.5" |
| X-Axis Travel | 6" |
| Z-Axis Travel | 12" |
| Spindle Nose / Spindle Bore | A2-6" / 3" |
| Spindle Speeds | 3,000 RPM |
| Spindle Motor | 20 HP |
| Number of Tool Positions | Gang Style |
| Rapid Traverse Rates | 710 IPM |
| Machine Dimensions | 94" x 54" x 78" |
| Machine Weight | 5,640 lbs. |
